RT134L-TLNDSA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44601 - BAND SUB-ASSY, BOOSTER BODY | ||||
| 44605-30030 |
RT13# |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
RT13# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-20460 |
RT134 |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-20300 |
RT134 |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
RT13# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-30030 |
RT13# |
1 | ||
| 44642C - BEARING, BOOSTER PISTON | ||||
| 44623-30150 |
RT13# |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
RT13# |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44628-60010 |
RT13# |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
RT13# |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
RT13# |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-20460 |
RT13# |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
RT13# |
1 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-20460 |
RT13# |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
RT13# |
1 | ||
| 44697 - SCREW, BOOSTER BAND SET | ||||
| 44681-30170 |
RT13# |
1 | ||
| 44697A - NUT(FOR BOOSTER BAND SET) | ||||
| 44686-30030 |
RT13# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
RT134 |
1 | ||
| 44731 - BRACKET, BRAKE BOOSTER, FRONT | ||||
| 44731-20090 |
RT13# |
1 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-20030 |
RT13# |
2 | ||
| 44731A - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-20030 |
RT13# |
2 | ||
| 44731B - SEAL, BRAKE BOOSTER BRACKET | ||||
| 90304-54002 |
RT13# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14080 |
RT134 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||
| 94120-70600 | ||||
(7809- )

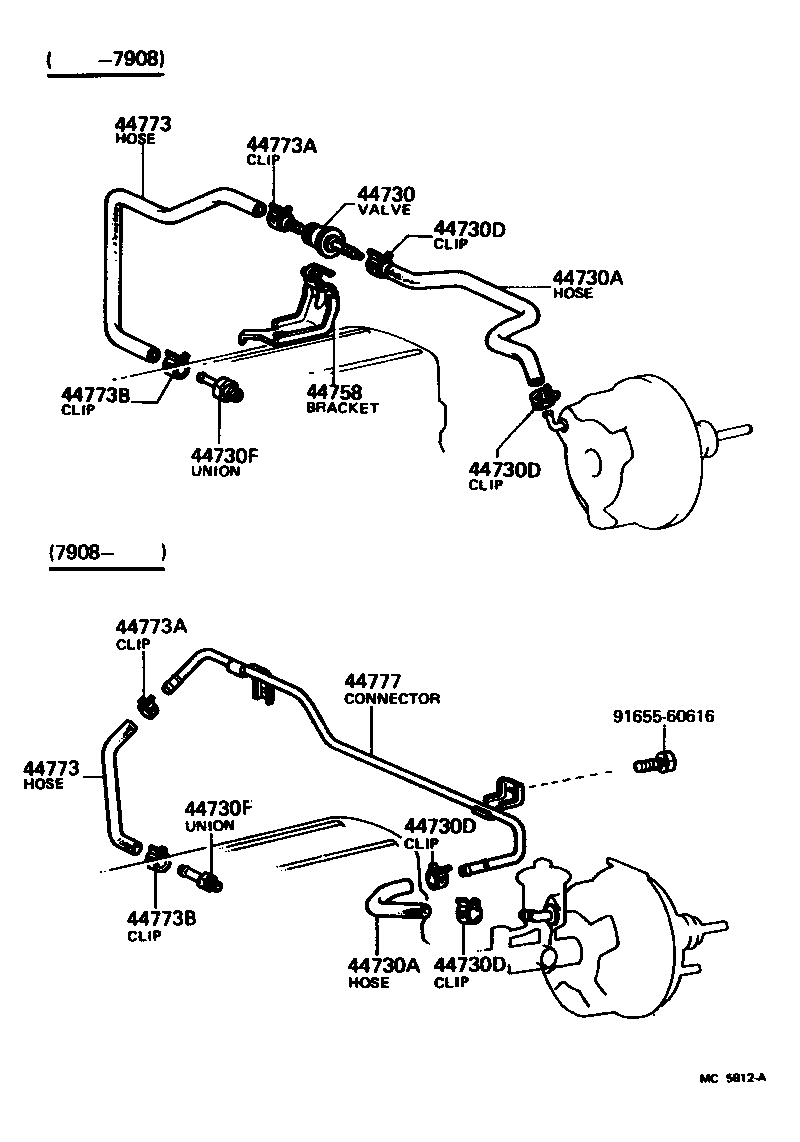

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20010 |
RT134 |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-20100 |
RT134 |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-20100 |
RT134 |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RT13# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RT13# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RT13# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
RT13# |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
RT134 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
RT134 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-14080 |
RT134 |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-20220 |
RT134 |
1 | ||
| 44779-14020 |
RT134 |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-20220 |
RT134 |
1 | ||
| 44779-14020 |
RT134 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
RT13# |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
RT13# |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
RT13# |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
RT13# |
1 | ||
| Common parts | ||||
| 91655-60616 | ||||
