RT134L-TLMESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-7908)3FC,4F,5F

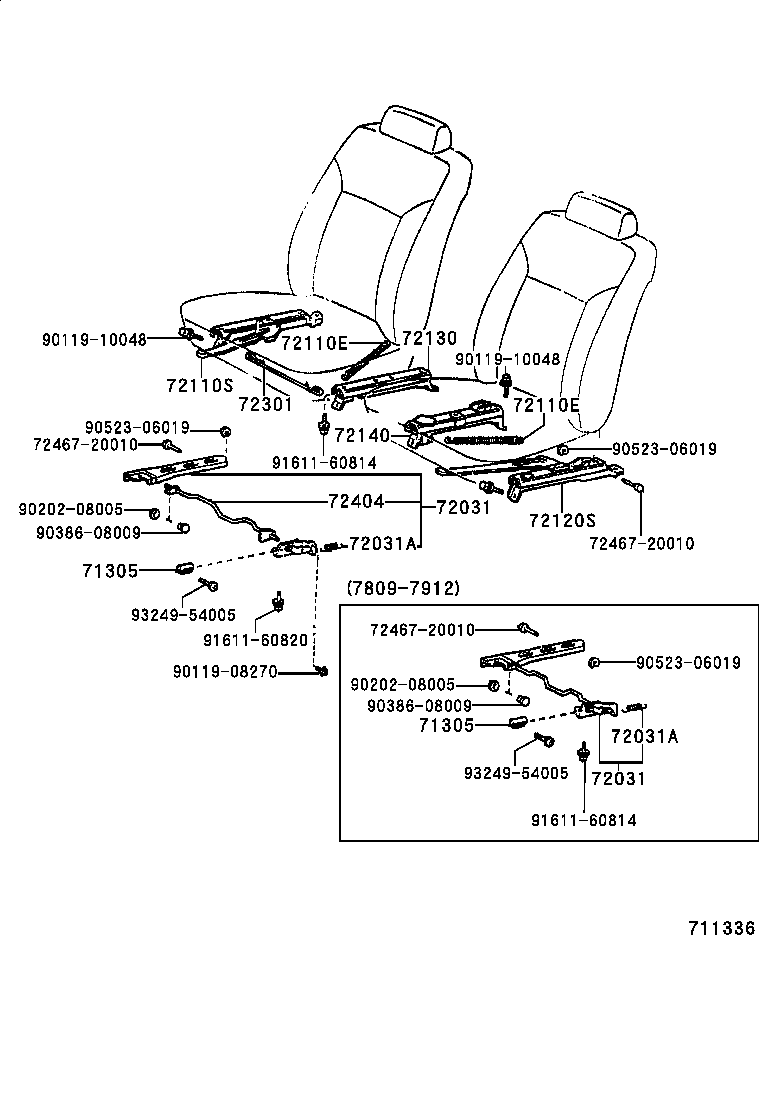

Click highlighted areas on diagram

diagram 71305 71305 72031 72031 72031A 72031A 72110E 72110E 72110S 72120S 72130 72140 72301 72404 7246720010 7246720010 7246720010 9011908270 9011910048 9011910048 9020208005 9020208005 9038608009 9038608009 9052306019 9052306019 9052306019 9161160814 9161160814 9161160820 9324954005 9324954005
Part # Description Qty Price
71305 - KNOB SUB-ASSY, FRONT SEAT ADJUSTING
72457-1402001

RT13#..3FC,4F,4FC,5F

BLACK,BLACK

 1
72457-1402002

RT13#..3FC,4F,4FC,5F

DARK WINE,RED/MAROON

 1
72457-1402005

RT134..3FC,4F,5F

BEIGE,BEIGE

 1
71305 - KNOB SUB-ASSY, FRONT SEAT ADJUSTING
72457-1402001

RT13#..3FC,4F,4FC,5F

BLACK,BLACK

 1
72457-1402002

RT13#..3FC,4F,4FC,5F

DARK WINE,RED/MAROON

 1
72457-1402005

RT134..3FC,4F,5F

BEIGE,BEIGE

 1
72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL
72310-20031

RT134..3FC,4F,5F

 1
72310-20030

RT134..3FC,4F,5F

 1
72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL
72310-20031

RT134..3FC,4F,5F

 1
72310-20030

RT134..3FC,4F,5F

 1
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

RT13#..3FC,4F,4FC,5F

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90506-18008

RT13#..3FC,4F,4FC,5F

 2
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-20240

RT134

 1
72110-20240

RT134..3FC,4F,5F

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-20270

RT134..3FC,4F,5F

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-20080

RT134..3FC,4F,5F

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-20090

RT134..3FC,4F,5F

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-20130

RT13#..3FC,4F,4FC,5F

 1
72404 - LINK SUB-ASSY, VERTICAL SEAT
72404-20020

RT134..3FC,4F,5F

 1
Common parts
72467-20010
90119-08270
90119-10048
90202-08005
90386-08009
90523-06019
91611-60814
91611-60820
93249-54005
