RT134L-TLMESA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

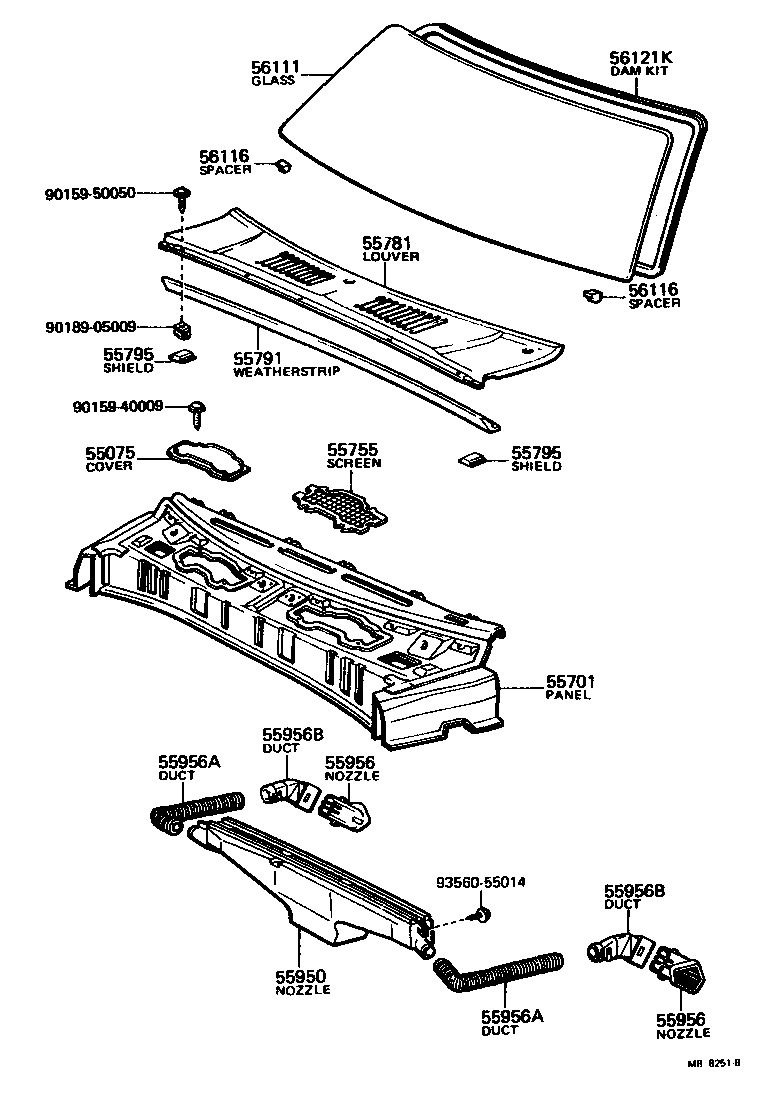

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55075 - COVER SUB-ASSY, HEATER AIR DUCT HOLE | ||||
| 55077-20030 |
RT13# |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-20150 |
RT134..3FC,4F,5F |
1 | ||
| 55755 - SCREEN, HEATER AIR DUCT | ||||
| 55076-20040 |
RT13# |
1 | ||
| 55781 - LOUVER, COWL VENTILATOR | ||||
| 55781-20080 |
RT134 |
1 | ||
| 55791 - WEATHERSTRIP, HOOD TO COWL TOP | ||||
| 53383-20040 |
RT13# |
1 | ||
| 55795 - SHIELD, COWL TOP TO LOUVER, SIDE | ||||
| 55785-20030 |
RT13# |
2 | ||
| 55795 - SHIELD, COWL TOP TO LOUVER, SIDE | ||||
| 55785-20030 |
RT13# |
2 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-20030 |
RT13# |
1 | ||
| 55956 - NOZZLE, SIDE DEFROSTER | ||||
| 55961-2004001 |
RT13# RH,BLACK,BLACK |
1 | ||
| 55962-2004002 |
RT13# LH,DARK WINE,RED/MAROON |
1 | ||
| 55961-2004005 |
RT134 RH,BEIGE,BEIGE |
1 | ||
| 55962-2004005 |
RT134 LH,BEIGE,BEIGE |
1 | ||
| 55961-2004002 |
RT13# RH,DARK WINE,RED/MAROON |
1 | ||
| 55962-2004001 |
RT13# LH,BLACK,BLACK |
1 | ||
| 55956 - NOZZLE, SIDE DEFROSTER | ||||
| 55961-2004001 |
RT13# RH,BLACK,BLACK |
1 | ||
| 55962-2004002 |
RT13# LH,DARK WINE,RED/MAROON |
1 | ||
| 55961-2004005 |
RT134 RH,BEIGE,BEIGE |
1 | ||
| 55962-2004005 |
RT134 LH,BEIGE,BEIGE |
1 | ||
| 55961-2004002 |
RT13# RH,DARK WINE,RED/MAROON |
1 | ||
| 55962-2004001 |
RT13# LH,BLACK,BLACK |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-14010 |
RT13# |
2 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-14010 |
RT13# |
2 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-20030 |
RT13# RH |
1 | ||
| 55973-20030 |
RT13# LH |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-20030 |
RT13# RH |
1 | ||
| 55973-20030 |
RT13# LH |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-20310 |
RT13#..LB *TL,T=5.3 |
1 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-20030 |
RT13# |
2 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-20030 |
RT13# |
2 | ||
| 56121K - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-14010 |
RT13# |
1 | ||
| Common parts | ||||
| 90159-40009 | ||||
| 90159-50050 | ||||
| 90189-05009 | ||||
| 93560-55014 | ||||
