RT134L-TLMESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

Click highlighted areas on diagram

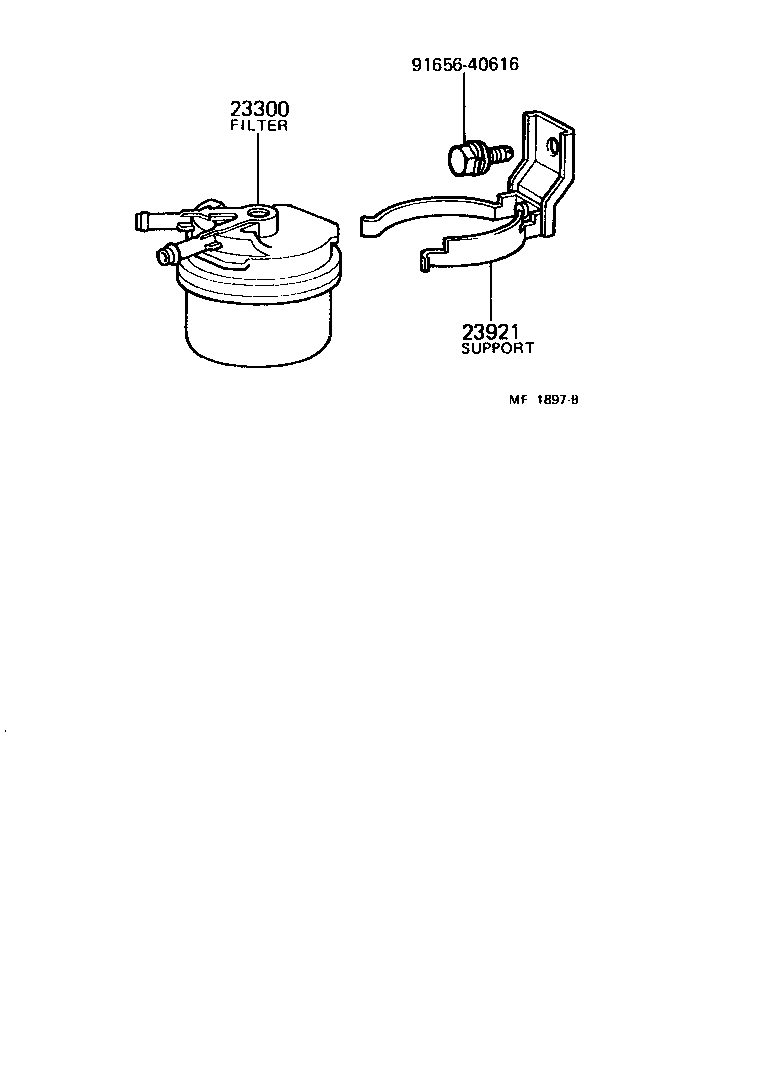

diagram 23300 23921 9165640616
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-34100

20R,22R..RT13#

 1
23921 - SUPPORT, FUEL FILTER
23921-38020

20R,22R..RT13#

 1
Common parts
91656-40616
