RT134L-TLMDSK (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

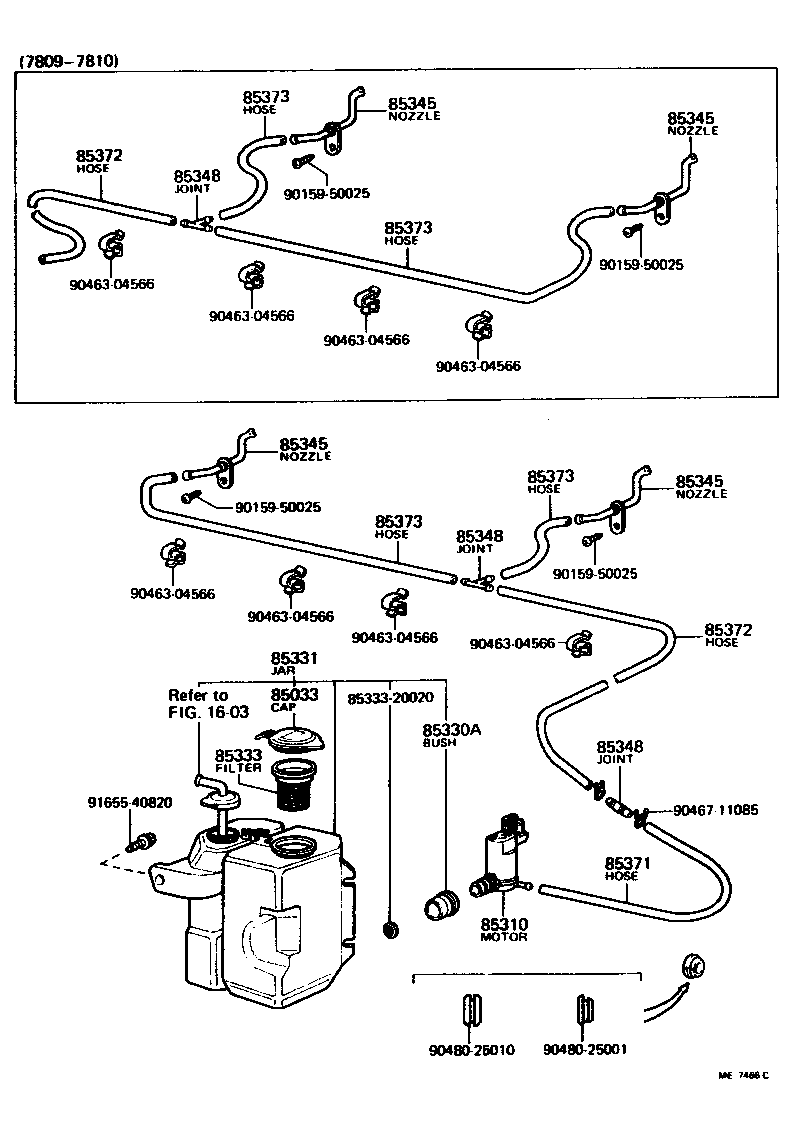

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-20060 |
RT13# |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20120 |
RT134 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32103 |
RT134 |
1 | ||
| 85331 - JAR SUB-ASSY, WINDSHIELD WASHER | ||||
| 85330-20241 |
RT134 |
1 | ||
| 85330-20240 |
RT134 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-20010 |
RT13# |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-20130 |
RT13# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-20130 |
RT13# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-20130 |
RT13# |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85341-20130 |
RT13# |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-20010 |
RT134 2 WAY |
1 | ||
| 85348-89101 |
RT13# 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-20010 |
RT134 2 WAY |
1 | ||
| 85348-89101 |
RT13# 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-20010 |
RT134 2 WAY |
1 | ||
| 85348-89101 |
RT13# 3 WAY |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33341 |
RT134 L=500 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33333 |
RT134 L=1200 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33333 |
RT134 L=1200 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33327 |
RT134 L=120 |
1 | ||
| 90099-33339 |
RT134 L=650 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33327 |
RT134 L=120 |
1 | ||
| 90099-33339 |
RT134 L=650 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33327 |
RT134 L=120 |
1 | ||
| 90099-33339 |
RT134 L=650 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33327 |
RT134 L=120 |
1 | ||
| 90099-33339 |
RT134 L=650 |
1 | ||
| Common parts | ||||
| 85333-20020 | ||||
| 90159-50025 | ||||
| 90463-04566 | ||||
| 90467-11085 | ||||
| 90480-25001 | ||||
| 90480-25010 | ||||
| 91655-40820 | ||||
| Linked diagrams | ||||
| 1603 | ||||
