RT134L-TLMDSK (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )USA ; (8008- )

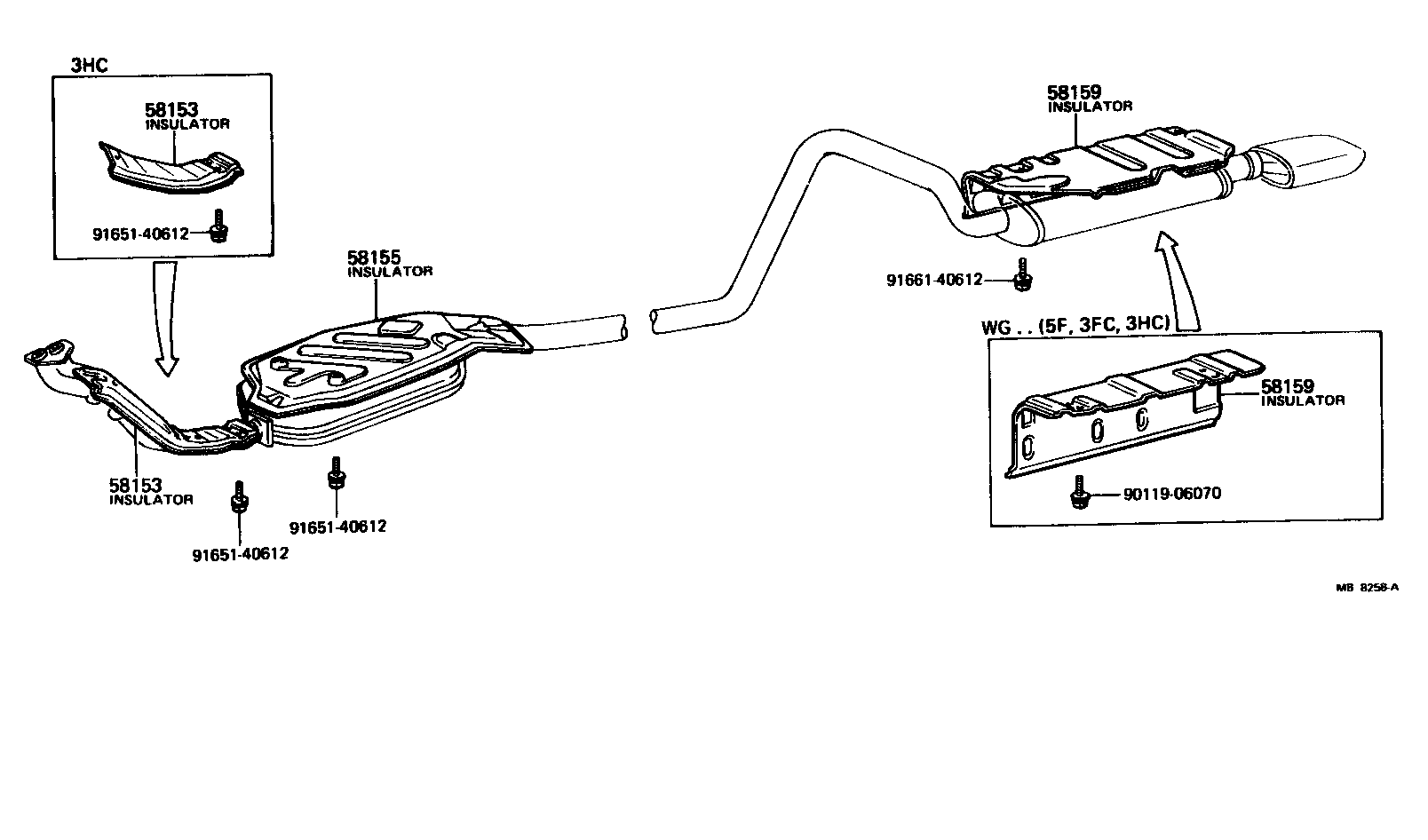

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-14011 |
RT13#..3FC,4F,4FC,5F |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-14011 |
RT13#..3FC,4F,4FC,5F |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-14020 |
RT13#..LB,SED |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-14020 |
RT13#..LB,SED |
1 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 91651-40612 | ||||
| 91661-40612 | ||||
(7809-8008)CND

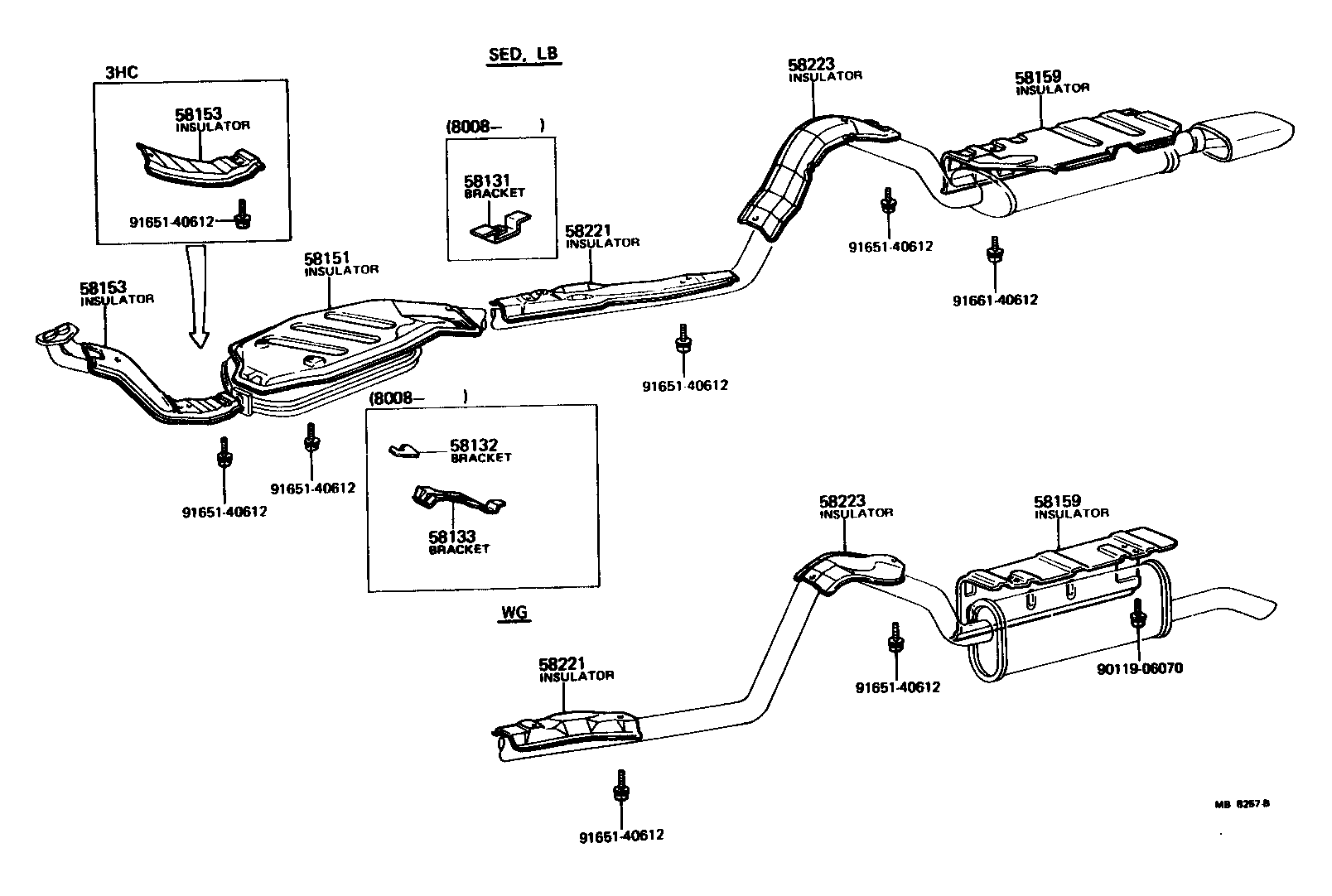

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-14011 |
RT13#..3FC,4F,4FC,5F |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-14011 |
RT13#..3FC,4F,4FC,5F |
1 | ||
| 58155 - INSULATOR, FRONT FLOOR HEAT, NO.3 | ||||
| 58152-14080 |
RT134..CND |
1 | ||
| 58152-14080 |
RT134..CND |
1 | ||
| 58152-14081 |
RT134..CND |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-14020 |
RT13#..LB,SED |
1 | ||
| 58159 - INSULATOR, MAIN MAFFLAR HEAT | ||||
| 58327-14020 |
RT13#..LB,SED |
1 | ||
| Common parts | ||||
| 90119-06070 | ||||
| 91651-40612 | ||||
| 91661-40612 | ||||
