RT134L-TLMDSK (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-7908) ; (7908- )3FC,3HC,4FC,5F

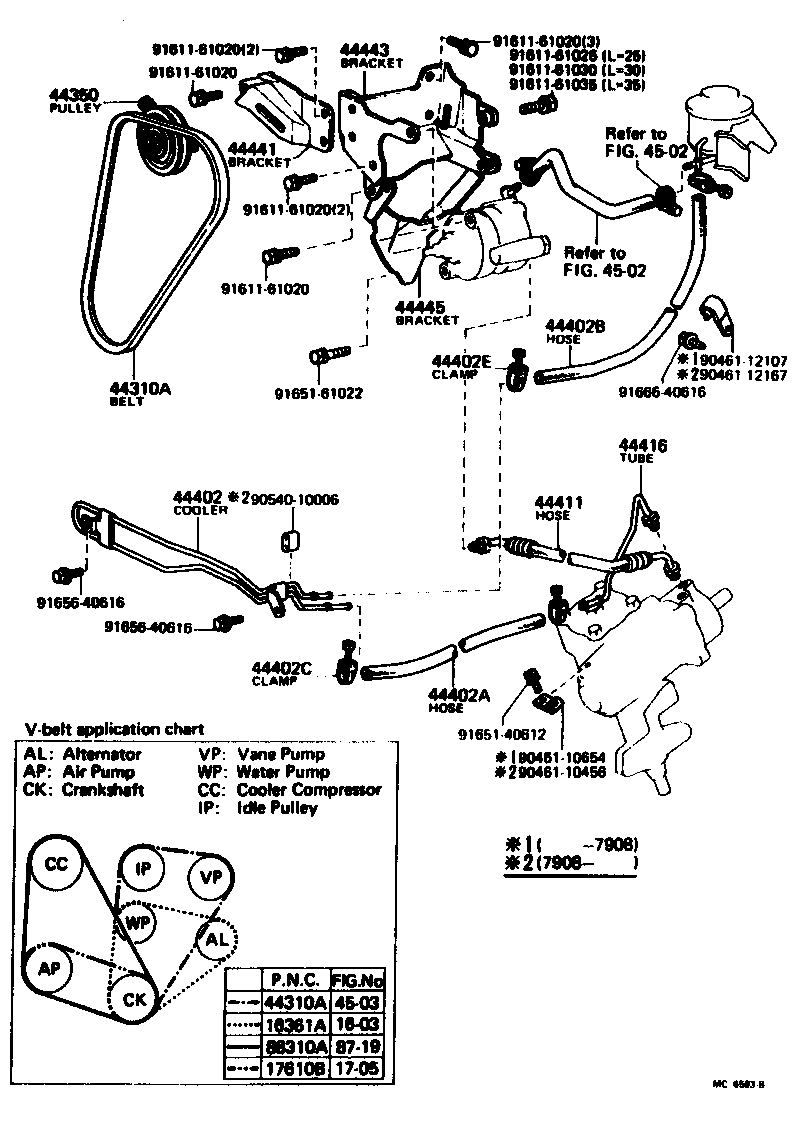

Click highlighted areas on diagram

diagram 1603 16361A 1705 17610B 44310A 44310A 44350 44402 44402A 44402B 44402C 44402E 44411 44416 44441 44443 44445 4502 4502 4503 8719 88310A 9046110456 9046110654 9046112107 9046112167 9054010006 9161161020 9161161020 9161161020 9161161020 9161161020 9161161025 9161161030 9161161035 9165140612 9165161022 9165640616 9165640616 9166640616
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

20R..RT134

L=880

 1
17610B - BELT, V(FOR AIR PUMP)
99332-00865

20R..RT134

L=865

 1
99332-10830

20R..RT134

L=830

 1
44310A - BELT, V(FOR VANE PUMP)
99332-51135

RT134

 1
44310A - BELT, V(FOR VANE PUMP)
99332-51135

RT134

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-20020

RT134

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-20030

RT134..3FC,3HC,5F

 1
44402-20020

RT134

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
90445-18034

RT134

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90445-18033

RT134

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

RT134

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

RT134

 2
44411 - HOSE, PRESSURE FEED
44411-20030

RT134

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-14010

RT134

 1
44441 - BRACKET, PUMP, FRONT
44441-20010

RT134

 1
44443 - BRACKET, PUMP
44443-20020

RT134

 1
44445 - BRACKET, PUMP, LOWER
44445-20010

RT134

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-01140

RT134

L=1140

 1
99332-11110

RT134

L=1140

 1
Common parts
90461-10456
90461-10654
90461-12107
90461-12167
90540-10006
91611-61020
91611-61025
91611-61030
91611-61035
91651-40612
91651-61022
91656-40616
91666-40616
Linked diagrams
1603
1705
4502
4503
8719
