RT134L-TLMDSK (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

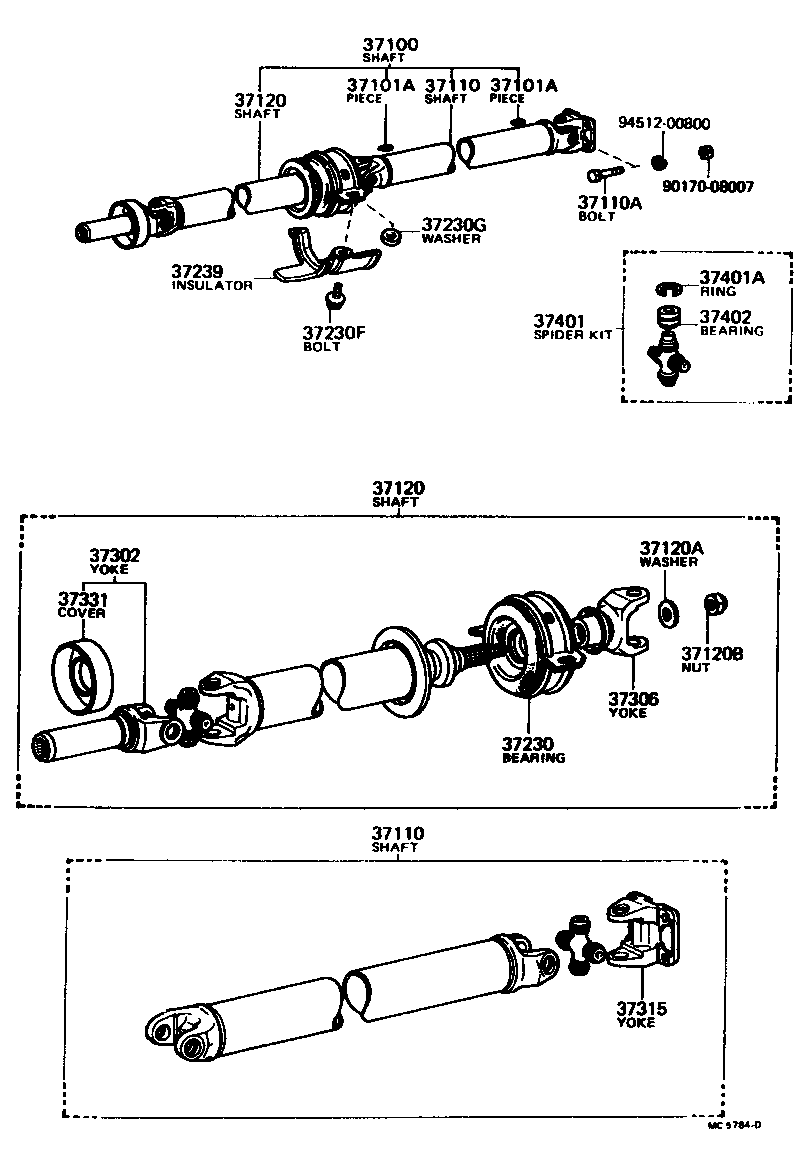

Click highlighted areas on diagram

diagram 37100 37101A 37101A 37110 37110 37110A 37120 37120 37120A 37120B 37230 37230F 37230G 37239 37302 37306 37315 37331 37401 37401A 37402 9017008007 9451200800
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-20150

RT134

 1
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01132

RT13#

10G,L=20.7,10G

 2
90937-01147

RT13#

2G,T=2.0,2G

 2
90937-01151

RT13#

12G,L=24.9,12G

 2
90937-01148

RT13#

4G,T=2.0,4G

 2
90937-01149

RT13#

6G,L=12.4,6G

 2
90937-01136

RT13#

20G,L=41.4,20G

 2
90937-01140

RT13#

30G,L=62.2,30G

 2
90937-01156

RT13#

24G,L=49.7,24G

 2
90937-01155

RT13#

22G,L=45.6,22G

 2
90937-01154

RT13#

18G,L=37.3,18G

 2
90937-01150

RT13#

8G,L=16.6,8G

 2
90937-01158

RT13#

28G,L=58.1,28G

 2
90937-01153

RT13#

16G,L=33.2,16G

 2
90937-01152

RT13#

14G,L=29.0,14G

 2
90937-01157

RT13#

26G,L=53.9,26G

 2
37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
90937-01132

RT13#

10G,L=20.7,10G

 2
90937-01147

RT13#

2G,T=2.0,2G

 2
90937-01151

RT13#

12G,L=24.9,12G

 2
90937-01148

RT13#

4G,T=2.0,4G

 2
90937-01149

RT13#

6G,L=12.4,6G

 2
90937-01136

RT13#

20G,L=41.4,20G

 2
90937-01140

RT13#

30G,L=62.2,30G

 2
90937-01156

RT13#

24G,L=49.7,24G

 2
90937-01155

RT13#

22G,L=45.6,22G

 2
90937-01154

RT13#

18G,L=37.3,18G

 2
90937-01150

RT13#

8G,L=16.6,8G

 2
90937-01158

RT13#

28G,L=58.1,28G

 2
90937-01153

RT13#

16G,L=33.2,16G

 2
90937-01152

RT13#

14G,L=29.0,14G

 2
90937-01157

RT13#

26G,L=53.9,26G

 2
37110 - SHAFT ASSY, PROPELLER
37110-20220

RT13#

 1
37110 - SHAFT ASSY, PROPELLER
37110-20220

RT13#

 1
37110A - BOLT (FOR PROPELLER SHAFT)
90101-08214

RT13#

*8-1.25PX25-12

 4
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-20090

RT134

 1
37120 - SHAFT ASSY, PROPELLER INTERMEDIATE
37120-20090

RT134

 1
37120A - WASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)
90201-18182

RT13#

OD=33.5,T=4.0

 1
37120B - NUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
90179-18060

RT13#

 1
37230 - BEARING ASSY, CENTER SUPPORT, NO.1
37230-14031

RT134

 1
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10064

RT13#

*10-1.25PX30-21.7

 2
90119-10049

RT13#

*10-1.25PX27-18.7

 2
90119-10075

RT13#

*10-1.25PX22-13.7

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10008

RT13#

T=4.5,T=4.5

 2
90201-10017

RT13#

T=9.0,T=9.0

 2
37239 - INSULATOR, CENTER SUPPORT BEARING HEAT
37239-14040

RT13#

 1
37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37302-20040

RT13#

 1
37306 - YOKE SUB-ASSY, UNIVERSAL JOINT, CENTER
37306-20010

RT13#

 1
37315 - YOKE, UNIVERSAL JOINT FLANGE
37315-20020

RT13#

 1
37331 - COVER, SLIDING SHAFT DUST
37331-30010

RT13#

 1
37401 - SPIDER KIT, UNIVERSAL JOINT
04371-22010

RT13#

 3
37401A - RING, HOLE SNAP (FOR SPIDER BEARING)
90521-29071

RT13#

T=2.425-2.475,T=2.45

 12
90521-29072

RT13#

T=2.475-2.525,T=2.50

 12
90521-29070

RT13#

T=2.375-2.425,T=2.40

 12
90521-29073

RT13#

T=2.525-2.575,T=2.55

 12
37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
37402-22020

RT13#

 12
Common parts
90170-08007
94512-00800
