RT134L-TLMDSK (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

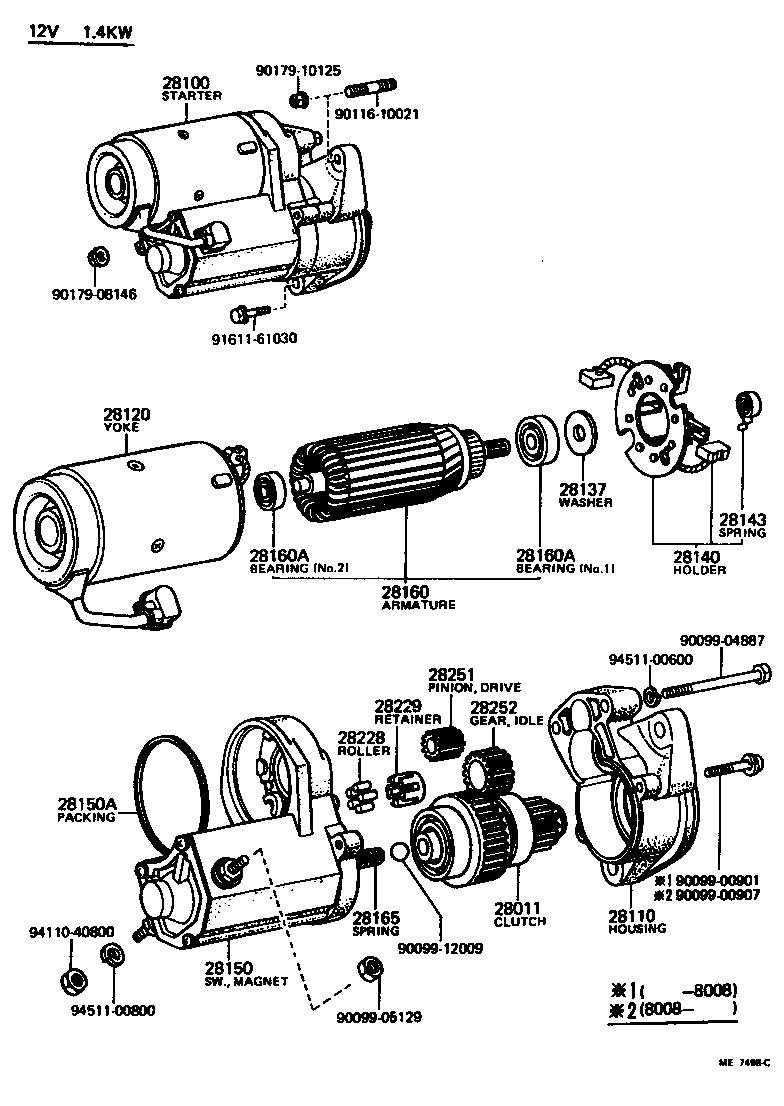

Click highlighted areas on diagram

diagram 28011 28100 28110 28120 28137 28140 28143 28150 28150A 28160 28160A 28160A 28165 28228 28229 28251 28252 9009900901 9009900907 9009904887 9009905129 9009912009 9011610021 9017908146 9017910125 9161161030 9411040800 9451100600 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

20R..RT134

12V 1.4KW

 1
28100 - STARTER ASSY
28100-34052

20R..RT134

12V 1.4KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28115-34031

20R..RT134

12V 1.4KW

 1
28120 - YOKE ASSY, STARTER
28120-34040

20R,22R..RT13#

12V 1.4KW

 1
28137 - WASHER, FELT, STARTER
90099-02202

20R,22R..RT13#

12V 1.4KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-34030

20R,22R..RT13#

12V 1.4KW

 1
28143 - SPRING, STARTER BRUSH
90099-17112

20R..RT134

12V 1.4KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-34052

20R,22R..RT13#

12V 1.4KW

 1
28150A - PACKING(FOR STARTER MAGNET SWITCH)
90099-06031

20R,22R..RT13#

12V 1.4KW

 1
28160 - ARMATURE ASSY, STARTER
28160-26050

20R,22R..RT13#

12V 1.4KW

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

20R..RT134

12V 1.4KW,NO.1

 1
90099-10107

20R,22R..RT13#

12V 1.4KW,NO.2

 1
28160A - BEARING, STARTER ARMATURE
28253-45020

20R..RT134

12V 1.4KW,NO.1

 1
90099-10107

20R,22R..RT13#

12V 1.4KW,NO.2

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

20R..RT134

12V 1.4KW

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

20R..RT134

12V 1.4KW

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

20R..RT134

12V 1.4KW

 1
28251 - PINION, STARTER DRIVE
28251-45020

20R,22R..RT13#

12V 1.4KW

 1
28252 - GEAR, STARTER IDLE
28254-45020

20R..RT134

12V 1.4KW

 1
Common parts
90099-00901
90099-00907
90099-04887
90099-05129
90099-12009
90116-10021
90179-08146
90179-10125
91611-61030
94110-40800
94511-00600
94511-00800
