RT134L-TLMDSK (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

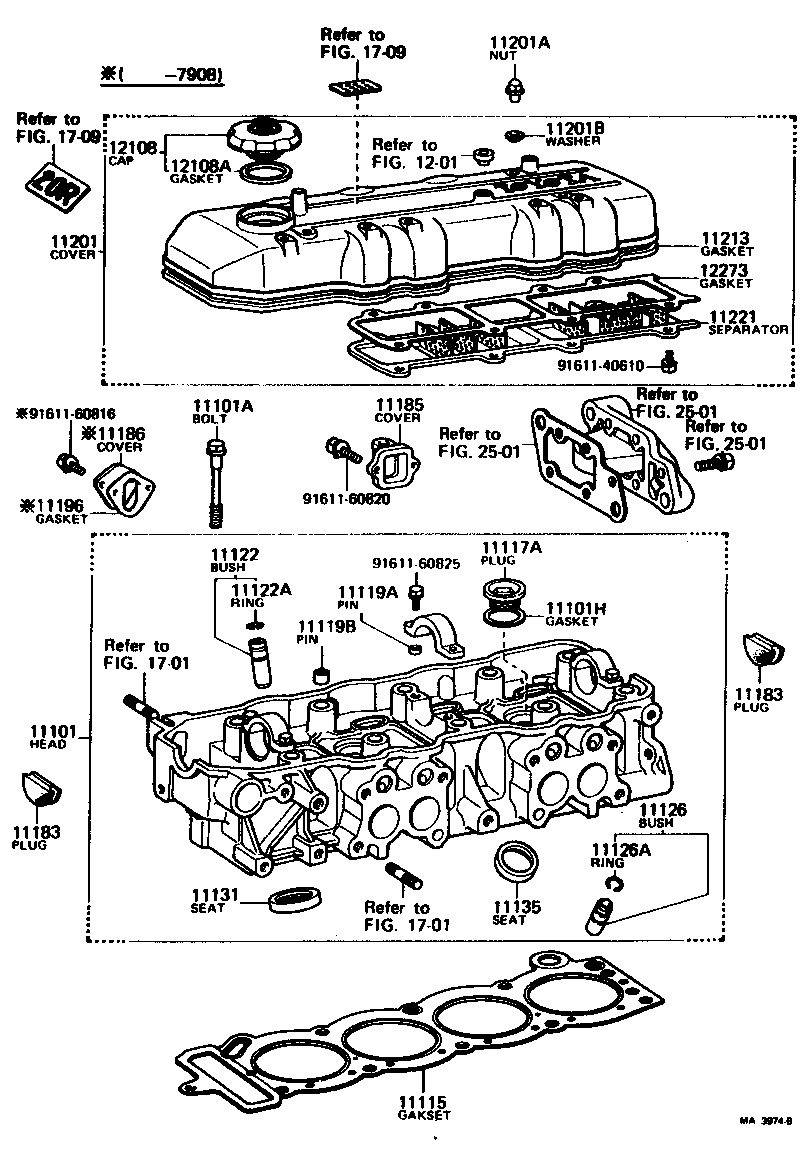

Click highlighted areas on diagram

diagram 11101 11101A 11101H 11115 11117A 11119A 11119B 11122 11122A 11126 11126A 11131 11135 11183 11183 11185 11186 11196 11201 11201A 11201B 11213 11221 1201 12108 12108A 12273 1701 1701 1709 1709 2501 2501 2501 9161140610 9161160816 9161160820 9161160875
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-39385

20R..RT134

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02058

20R,22R..RT13#

*12-1.25PX166.5-21

 10
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-32222

20R,22R..RT13#

 2
11115 - GASKET, CYLINDER HEAD
11115-38013

20R..RT134

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-32070

20R,22R..RT13#

 2
11119A - PIN, STRAIGHT, NO.1
90253-11021

20R,22R..RT13#

L=8,OD=11,L=8,OD=11

 6
11119B - PIN, STRAIGHT, NO.2
90253-16020

20R,22R..RT13#

L=16,OD=15.5,L=16,OD=15.5

 5
11122 - BUSH, INTAKE VALVE GUIDE
11122-38021

20R,22R..RT13#

STD,STD

 4
11123-38021

20R,22R..RT13#

O/S 0.05,O/S 0.05

 4
11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
90520-12049

20R,22R..RT13#

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-38021

20R,22R..RT13#

STD,STD

 4
11123-38021

20R,22R..RT13#

O/S 0.05,O/S 0.05

 4
11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
90520-12049

20R,22R..RT13#

 4
11131 - SEAT, INTAKE VALVE
11132-38010

20R..RT134

O/S 0.03,O/S 0.03

 4
11131-38010

20R..RT134

STD,STD

 4
11135 - SEAT, EXHAUST VALVE
11136-38010

20R..RT134

O/S 0.03,O/S 0.03

 4
11135-38010

20R..RT134

STD,STD

 4
11183 - PLUG, SEMICIRCULAR
11183-38010

20R,22R..RT13#

 2
11183 - PLUG, SEMICIRCULAR
11183-38010

20R,22R..RT13#

 2
11185 - COVER, CYLINDER HEAD SIDE
11184-38020

20R..RT134

 1
11186 - COVER, CYLINDER HEAD SIDE, NO.2
11495-40010

20R..RT134

 1
11196 - GASKET, CYLINDER HEAD SIDE COVER
90923-05011

20R..RT134

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-39185

20R..RT134

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

20R,22R..RT13#

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-08002

20R,22R..RT13#

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-38010

20R,22R..RT13#

 1
11221 - SEPARATOR, CYLINDER HEAD COVER, NO.1
11221-38013

20R..RT134

 1
11221-38011

20R..RT134

 1
12108 - CAP SUB-ASSY, OIL FILLER
12181-12903

20R..RT134

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

20R,22R..RT13#

 1
12273 - GASKET, OIL SEPARATOR
12273-38011

20R,22R..RT13#

 1
Common parts
91611-40610
91611-60816
91611-60820
91611-60875
Linked diagrams
1201
1701
1709
2501
