RT134L-TLMDSA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)

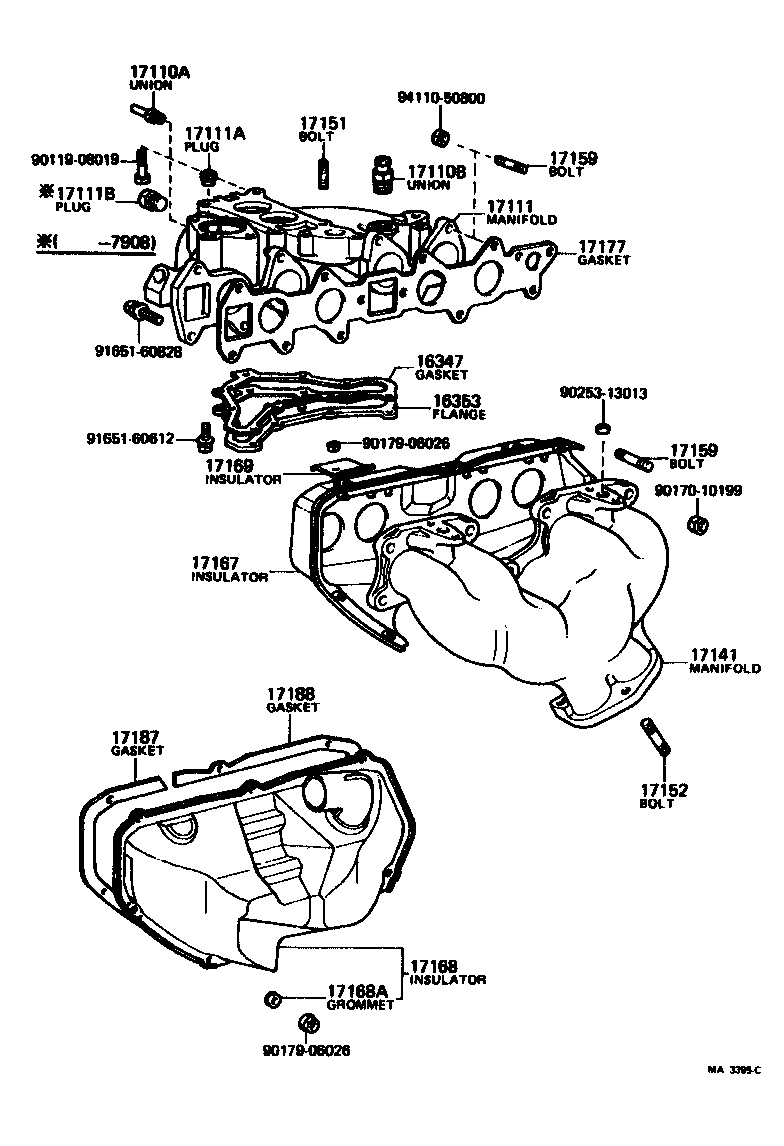

Click highlighted areas on diagram

diagram 16347 16353 17110A 17110B 17111 17111A 17111B 17141 17151 17152 17159 17159 17167 17168 17168A 17169 17177 17187 17188 9011908019 9017010199 9017906026 9017906026 9025313013 9165160612 9165160828 9411050800
Part # Description Qty Price
16347 - GASKET, WATER BY-PASS
16347-38011

20R..RT134

 1
16347-38010

20R..RT134

 1
16353 - FLANGE, WATER BY-PASS
16353-38011

20R..RT134

 1
16353-38020

20R..RT134

 1
17110A - UNION, VACUUM HOSE
90404-51010

20R..RT134

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-54009

20R..RT134

 1
17111 - MANIFOLD, INTAKE
17111-38031

20R..RT134

 1
17111-38030

20R..RT134

 1
17111A - PLUG, NO.1
90340-16002

20R..RT134

 1
17141 - MANIFOLD, EXHAUST
17141-38020

20R..RT134..USA

 1
17141-38021

20R..RT134..USA

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08051

20R,22R..RT13#

L=40,S=11&11

 2
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10039

20R,22R..RT13#

L=39,S=15&15

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013

20R,22R..RT13#

L=34.5,S=9&16

 2
90116-10317

20R,22R..RT13#

L=36,S=13&13

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08013

20R,22R..RT13#

L=34.5,S=9&16

 2
90116-10317

20R,22R..RT13#

L=36,S=13&13

 3
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-38040

20R..RT134

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-38040

20R..RT134

 1
17168A - GROMMET(FOR EXHAUST MANIFOLD HEAT INSULATOR)
90480-12001

20R,22R..RT13#

OD=12.5

 4
90480-11001

20R,22R..RT13#

OD=11.5

 2
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-38010

20R..RT134

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-38020

20R..RT134

 1
17177-38021

20R..RT134

 1
17187 - GASKET, HEAT INSULATOR, NO.1
17187-38020

20R,22R..RT13#

 1
17188 - GASKET, HEAT INSULATOR, NO.2
17188-38010

20R,22R..RT13#

 1
Common parts
90119-08019
90170-10199
90179-06026
90253-13013
91651-60612
91651-60828
94110-50800
