RT134L-TLKDSA (1978)
Toyota Corona
(7809-7908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

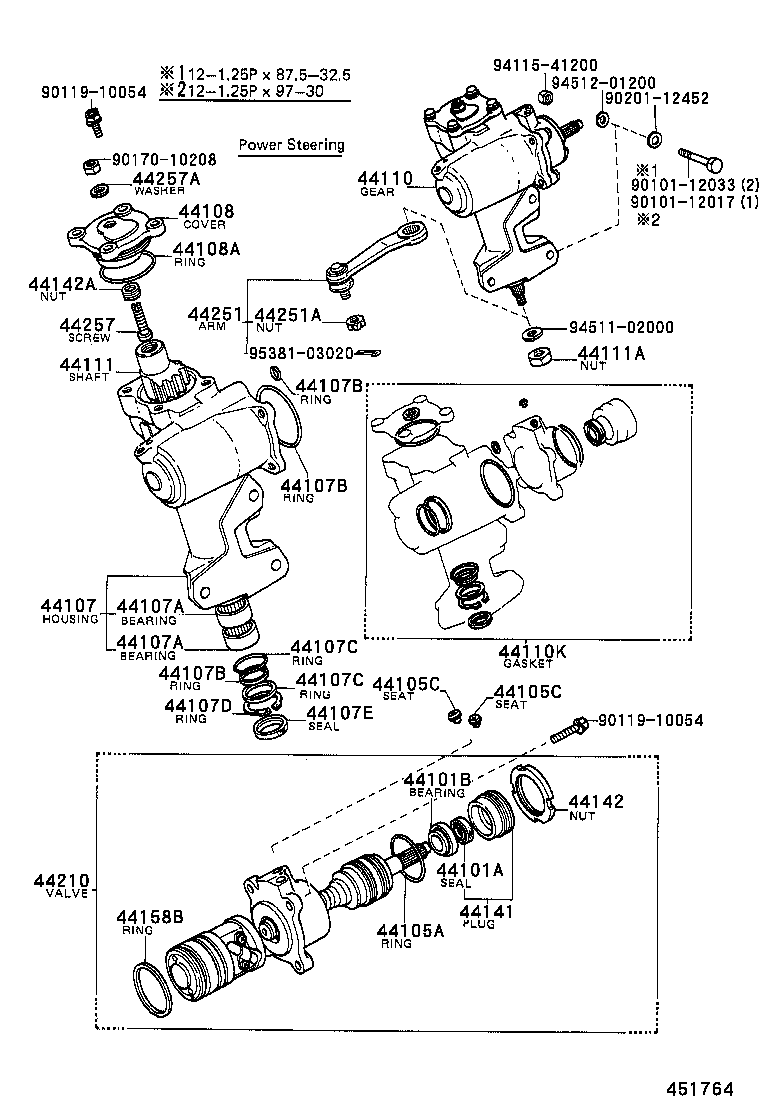

| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90311-19002 |
RT134 |
1 | ||
| 44101B - BEARING(FOR STEERING WORM) | ||||
| 90369-22001 |
RT134 |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-51001 |
RT134 |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
RT134 OD=13,PRESSUR PORT |
1 | ||
| 90410-05035 |
RT134 OD=11.8,RETURN PORT |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06030 |
RT134 OD=13,PRESSUR PORT |
1 | ||
| 90410-05035 |
RT134 OD=11.8,RETURN PORT |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-22040 |
RT134 |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
RT134 |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-30002 |
RT134 |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-62002 |
RT134 ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 96710-01010 |
RT134 OD=13,T=1.9 |
1 | ||
| 90301-32001 |
RT134 ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-62002 |
RT134 ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 96710-01010 |
RT134 OD=13,T=1.9 |
1 | ||
| 90301-32001 |
RT134 ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-62002 |
RT134 ID=62.5,OD=66.5,OD=66.5,T=2.0 |
1 | ||
| 96710-01010 |
RT134 OD=13,T=1.9 |
1 | ||
| 90301-32001 |
RT134 ID=31.7,OD=38.7,OD=38.7,T=3.5 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-30001 |
RT134 ID=30.1,OD=38.0,OD=38,T=3.0 |
1 | ||
| 90562-29001 |
RT134 ID=29.9,OD=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-30001 |
RT134 ID=30.1,OD=38.0,OD=38,T=3.0 |
1 | ||
| 90562-29001 |
RT134 ID=29.9,OD=32.3,OD=32.3,T=4.0 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-41001 |
RT134 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-30001 |
RT134 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-22020 |
RT134 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-58001 |
RT134 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-14030 |
RT134 |
1 | ||
| 44110K - GASKET KIT, POWER STEERING GEAR | ||||
| 04445-22020 |
RT134 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-22030 |
RT134 |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
RT134 |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
RT134 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
RT134 |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
RT134 |
1 | ||
| 44158B - RING(FOR POWER PISTON END PLUG) | ||||
| 90562-58001 |
RT134 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-14030 |
RT134 |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45401-19135 |
RT134 |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
RT134 |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-22010 |
RT134 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
RT134 |
1 | ||
| Common parts | ||||
| 90101-12017 | ||||
| 90101-12033 | ||||
| 90119-10054 | ||||
| 90170-10208 | ||||
| 90201-12452 | ||||
| 94115-41200 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||

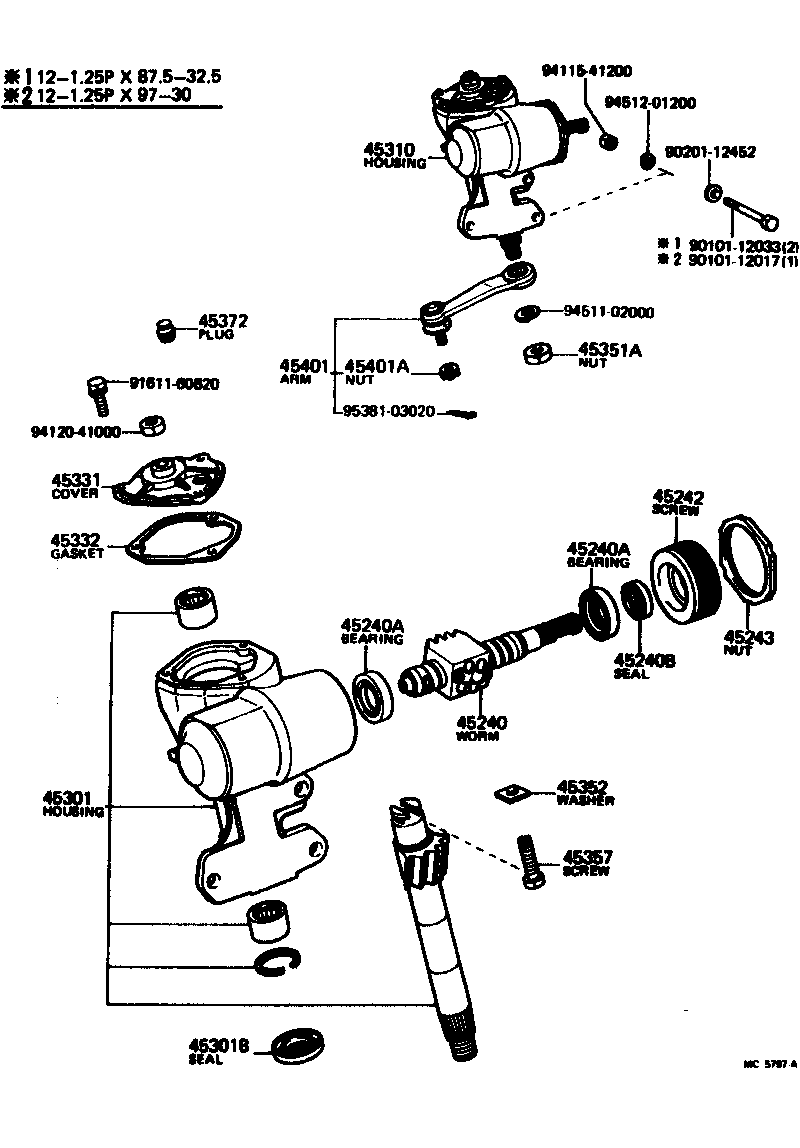

(7809-8008)DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45240 - WORM ASSY, STEERING | ||||
| 45240-20060 |
RT134..DLX..USA |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-41017 |
RT134..DLX..USA |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90369-41017 |
RT134..DLX..USA |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
RT13#..DLX |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-20050 |
RT134..DLX..USA |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-22040 |
RT13#..DLX KOYO |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-20200 |
RT134..DLX..USA |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-28027 |
RT134..DLX |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-20230 |
RT134..DLX..USA |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-22040 |
RT134..DLX KOYO |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-20060 |
RT134..DLX KOYO |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-20147 |
RT13#..DLX |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-20010 |
RT134..DLX T=1.95,T=1.95,KOYO |
1 | ||
| 45355-20010 |
RT134..DLX T=2.10,T=2.10,KOYO |
1 | ||
| 45354-20010 |
RT134..DLX T=2.05,T=2.05,KOYO |
1 | ||
| 45356-20010 |
RT134..DLX T=2.15,T=2.15,KOYO |
1 | ||
| 45352-20010 |
RT134..DLX T=2.00,T=2.00,KOYO |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-30040 |
RT134..DLX |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03027 |
RT13#..DLX |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-19125 |
RT13#..DLX |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-12028 |
RT13#..DLX |
1 | ||
| Common parts | ||||
| 90101-12017 | ||||
| 90101-12033 | ||||
| 90201-12452 | ||||
| 91611-60820 | ||||
| 94115-41200 | ||||
| 94120-41000 | ||||
| 94511-02000 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||

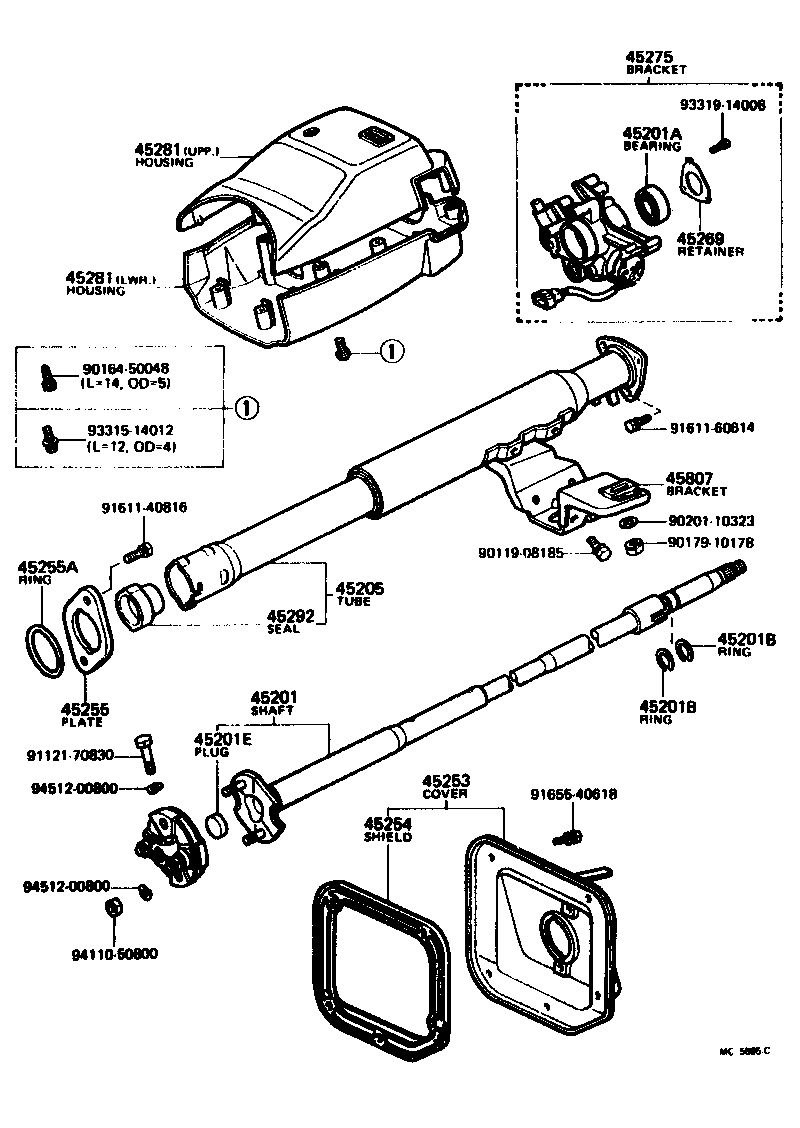

(7809- )DLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-20080 |
RT13#..DLX |
1 | ||
| 45210-20090 |
RT134..DLX W/POWER STEERING |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
RT13#..DLX |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RT13# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
RT13#..DLX T=1.35-1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
RT13# T=1.20,T=1.2 |
2 | ||
| 90520-17196 |
RT13#..DLX T=1.35-1.45,T=1.4 |
2 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
RT13#..DLX |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-20070 |
RT134..DLX W/POWER STEERING |
1 | ||
| 45870-22080 |
RT13#..DLX |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-20060 |
RT134..3FC,4F,5F W/POWER STEERING |
1 | ||
| 45025-20040 |
RT134..MTM..DLX |
1 | ||
| 45025-20042 |
RT134..MTM..DLX |
1 | ||
| 45025-20061 |
RT134..3FC,4F,5F W/POWER STEERING |
1 | ||
| 45025-20041 |
RT134..MTM..DLX |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-20050 |
RT134 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
RT13# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-45202 |
RT13# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
RT13#..DLX |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-20210 |
RT134..MTM..DLX |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2219105 |
RT134..MTM..DLX UPR,BEIGE,BEIGE |
1 | ||
| 45287-2212101 |
RT134..MTM..DLX LWR,BLACK,BLACK |
1 | ||
| 45286-2219102 |
RT134..MTM..DLX UPR,DARK WINE,RED/MAROON |
1 | ||
| 45287-2212102 |
RT134..MTM..DLX LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-2219101 |
RT134..MTM..DLX UPR,BLACK,BLACK |
1 | ||
| 45287-2212105 |
RT134..MTM..DLX LWR,BEIGE,BEIGE |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2219105 |
RT134..MTM..DLX UPR,BEIGE,BEIGE |
1 | ||
| 45287-2212101 |
RT134..MTM..DLX LWR,BLACK,BLACK |
1 | ||
| 45286-2219102 |
RT134..MTM..DLX UPR,DARK WINE,RED/MAROON |
1 | ||
| 45287-2212102 |
RT134..MTM..DLX LWR,DARK WINE,RED/MAROON |
1 | ||
| 45286-2219101 |
RT134..MTM..DLX UPR,BLACK,BLACK |
1 | ||
| 45287-2212105 |
RT134..MTM..DLX LWR,BEIGE,BEIGE |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
RT13# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-20070 |
RT13#..DLX |
1 | ||
| Common parts | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91121-70830 | ||||
| 91611-40816 | ||||
| 91611-60614 | ||||
| 91655-40618 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
