RT134L-TLKDSA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )MTM

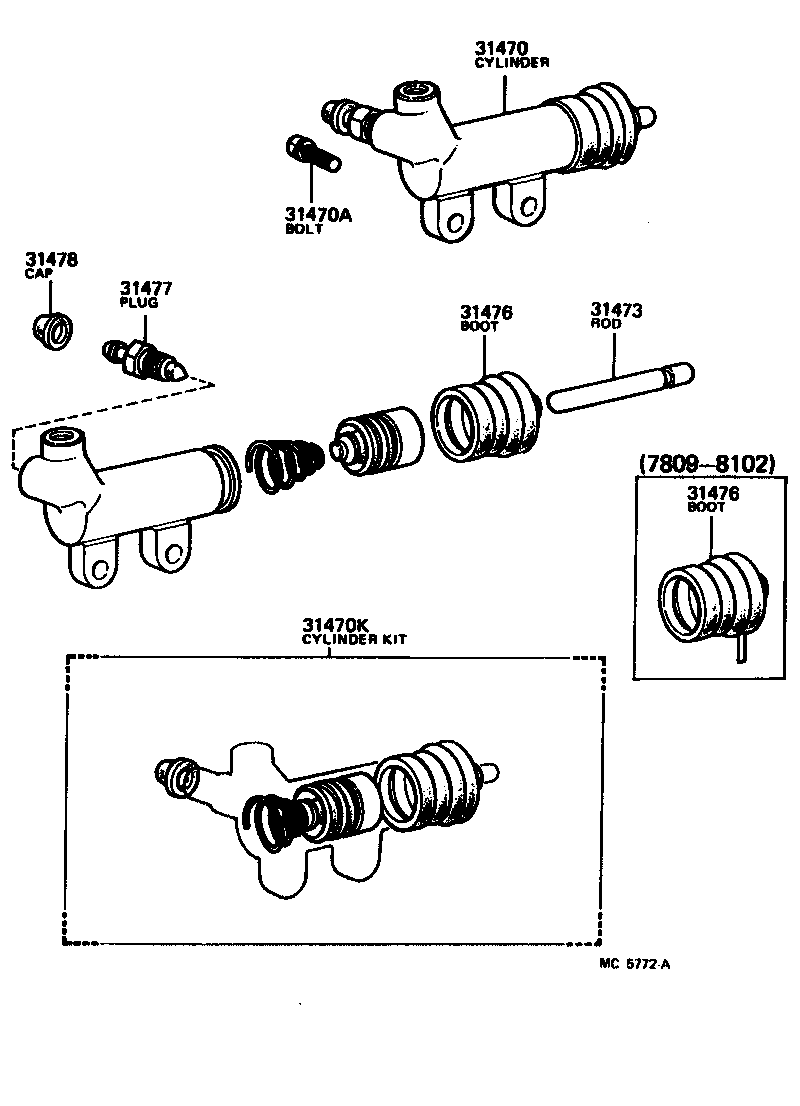

Click highlighted areas on diagram

diagram 31470 31470A 31470K 31473 31476 31476 31477 31478
Part # Description Qty Price
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-20150

RT134..MTM

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91611-40825

RT13#..MTM

*8-1.25PX25-25

 2
31470K - CYLINDER KIT, CLUTCH RELEASE
04313-30100

RT13#..MTM

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-20030

RT134..MTM

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-30040

RT13#..MTM

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-30040

RT13#..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

RT13#..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

RT13#..MTM

 1
