RT134L-TLKDSA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )MTM

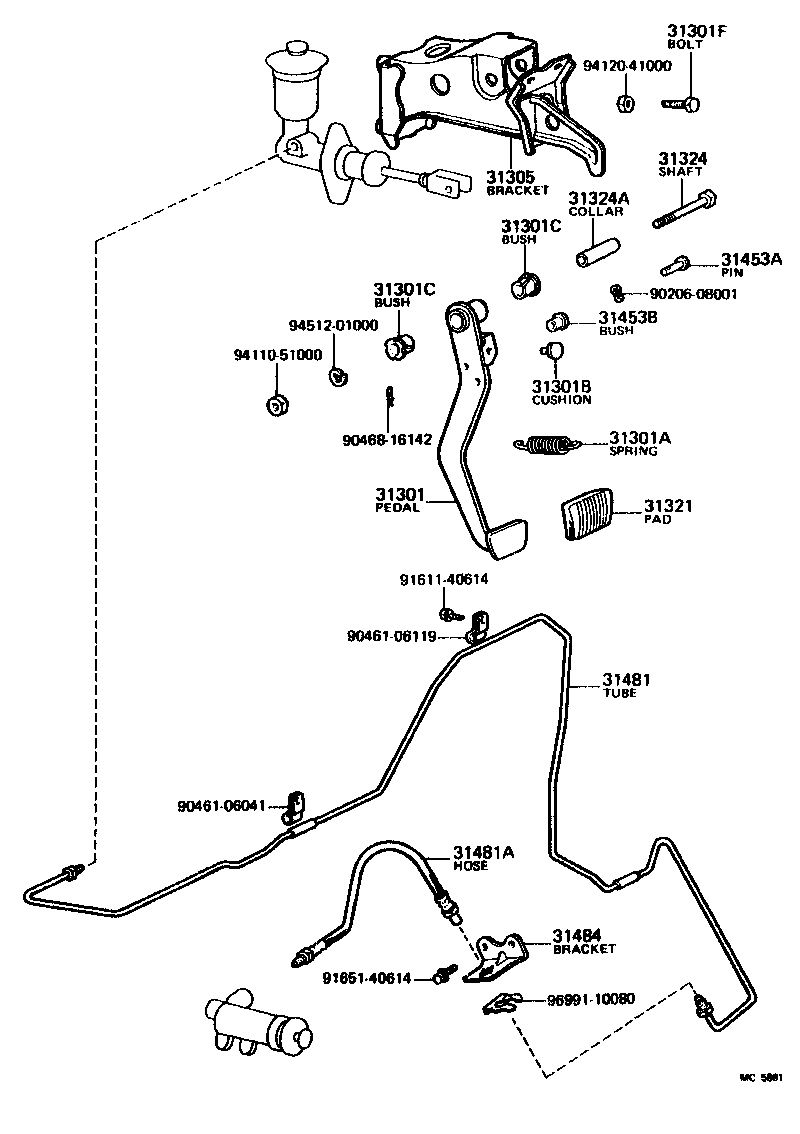

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31453A 31453B 31481 31481A 31484 9020608001 9046106041 9046106119 9046816142 9161140614 9165140614 9411051000 9412041000 9451201000 9699110080
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-20140

RT134..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90506-16022

RT134..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

RT13#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

RT13#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

RT13#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

RT13#..MTM

 1
31305 - BRACKET SUB-ASSY, CLUTCH PEDAL
55107-20040

RT134..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14010

RT13#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

RT13#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

RT13#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

RT134..MTM

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

RT13#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-20140

RT134..MTM

 1
31481A - HOSE, CLUTCH, NO.1
90947-02363

RT13#..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-14050

RT13#..MTM

 1
Common parts
90206-08001
90461-06041
90461-06119
90468-16142
91611-40614
91651-40614
94110-51000
94120-41000
94512-01000
96991-10080
