RT134L-TLHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

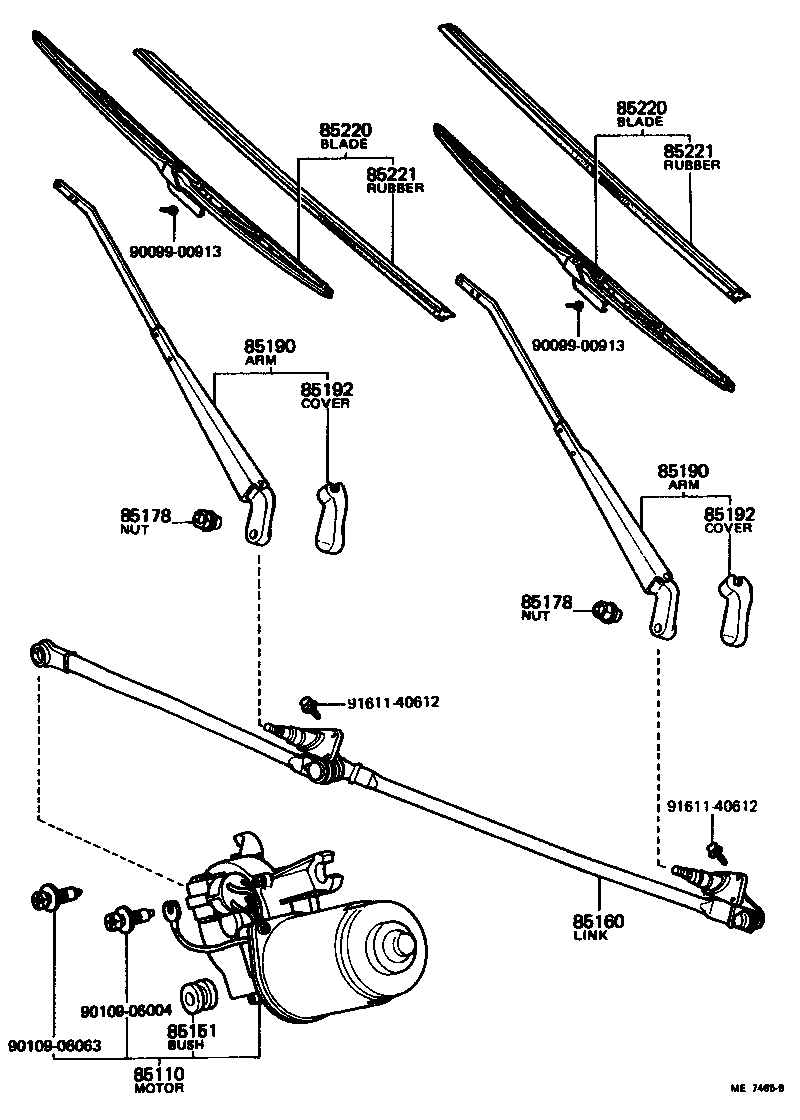

Click highlighted areas on diagram

diagram 85110 85151 85160 85178 85178 85190 85190 85192 85192 85220 85220 85221 85221 9009900913 9009900913 9010906004 9010906063 9161140612 9161140612
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-20110

RT13#

 1
85151 - BUSH, WINDSHIELD WIPER MOTOR GEAR HOUSING COVER
85151-22070

RT13#

 4
85160 - LINK ASSY, WINDSHIELD WIPER
85160-20120

RT134

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

RT13#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

RT13#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-20260

RT134

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-20260

RT134

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-20020

RT134

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-20020

RT134

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-20130

RT134

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-20130

RT134

 2
85221 - BLADE, WINDSHIELD WIPER
85221-20080

RT134

 2
85221 - BLADE, WINDSHIELD WIPER
85221-20080

RT134

 2
Common parts
90099-00913
90109-06004
90109-06063
91611-40612
