RT134L-TLHESA (1978)
Toyota Corona
Production
Sep 1978
-
Aug 1980
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7809- )

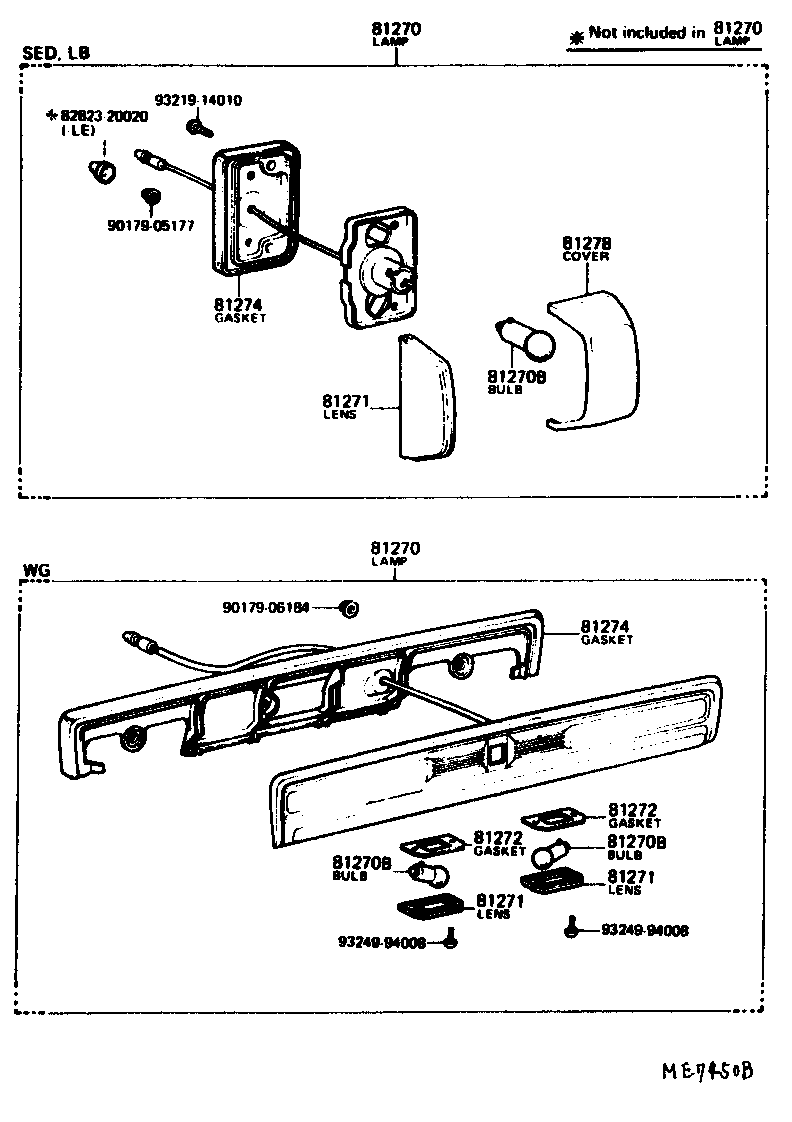

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-29335 |
RT134..LB,SED RH |
1 | ||
| 81690-29095 |
RT134..LB,SED LH |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-29335 |
RT134..LB,SED RH |
1 | ||
| 81690-29095 |
RT134..LB,SED LH |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-29335 |
RT134..LB,SED RH |
1 | ||
| 81690-29095 |
RT134..LB,SED LH |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11075 |
RT13# 12V 7.5W,12V 7.5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11075 |
RT13# 12V 7.5W,12V 7.5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-11075 |
RT13# 12V 7.5W,12V 7.5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-20110 |
RT13#..LB,SED RH |
1 | ||
| 81691-20030 |
RT13#..LB,SED LH |
1 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-20110 |
RT13#..LB,SED RH |
1 | ||
| 81691-20030 |
RT13#..LB,SED LH |
1 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-20110 |
RT13#..LB,SED RH |
1 | ||
| 81691-20030 |
RT13#..LB,SED LH |
1 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-20110 |
RT13#..LB,SED RH |
1 | ||
| 81694-20030 |
RT13#..LB,SED LH |
1 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-20110 |
RT13#..LB,SED RH |
1 | ||
| 81694-20030 |
RT13#..LB,SED LH |
1 | ||
| 81278 - COVER, LICENSE PLATE LAMP | ||||
| 81696-20030 |
RT13#..LB,SED LH |
1 | ||
| 81276-20110 |
RT13#..LB,SED RH |
1 | ||
| Common parts | ||||
| 82823-20020 | ||||
| 90179-05177 | ||||
| 90179-06184 | ||||
| 93219-14010 | ||||
| 93249-94008 | ||||
