RT134L-TLHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

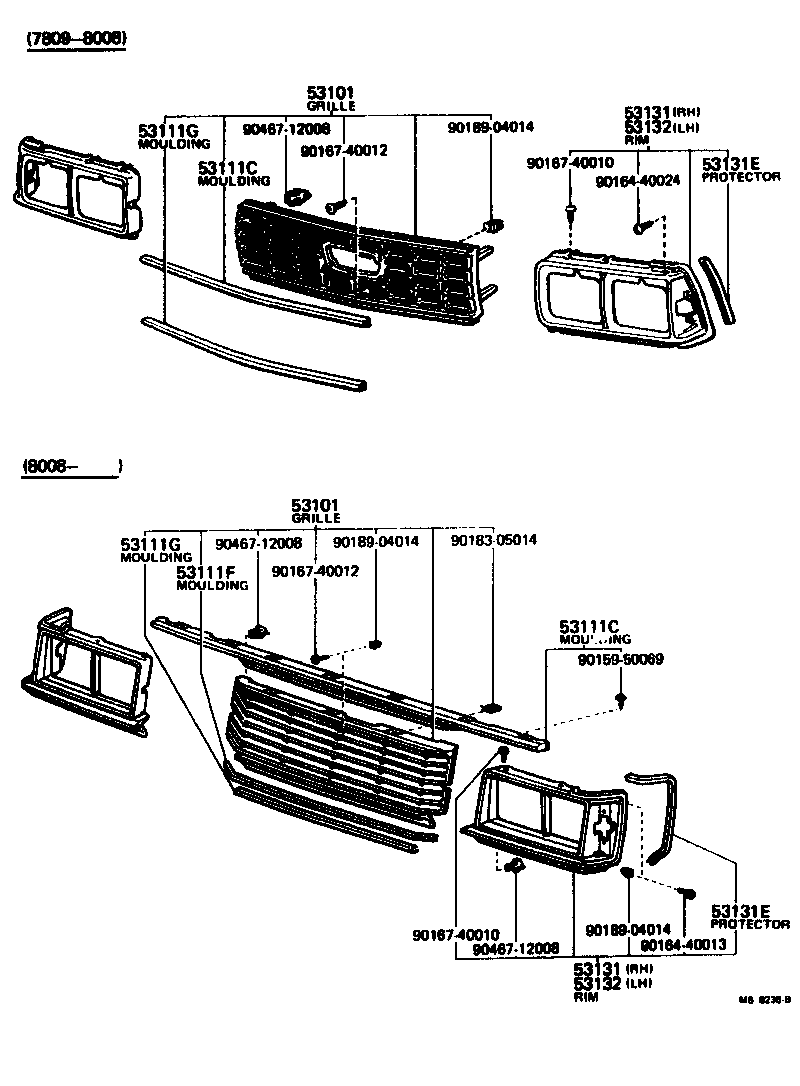

Click highlighted areas on diagram

diagram 53101 53101 53111C 53111C 53111F 53111G 53111G 53131 53131 53131E 53131E 53132 53132 9015950069 9016440013 9016440024 9016740010 9016740010 9016740012 9016740012 9018305014 9018904014 9018904014 9018904014 9046712008 9046712008 9046712008
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-29075

RT134

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-29075

RT134

 1
53111C - MOULDING, RADIATOR GRILLE, UPPER
53121-20070

RT134

 1
53111C - MOULDING, RADIATOR GRILLE, UPPER
53121-20070

RT134

 1
53111G - MOULDING, RADIATOR GRILLE, LOWER
53122-20050

RT134

 1
53111G - MOULDING, RADIATOR GRILLE, LOWER
53122-20050

RT134

 1
53131 - RIM, HEADLAMP, RH
53131-29125

RT134

 1
53131 - RIM, HEADLAMP, RH
53131-29125

RT134

 1
53131E - PROTECTOR, HEADLAMP DOOR
53139-20010

RT134

 2
53131E - PROTECTOR, HEADLAMP DOOR
53139-20010

RT134

 2
53132 - RIM, HEADLAMP, LH
53132-29105

RT134

 1
53132 - RIM, HEADLAMP, LH
53132-29105

RT134

 1
Common parts
90159-50069
90164-40013
90164-40024
90167-40010
90167-40012
90183-05014
90189-04014
90467-12008
