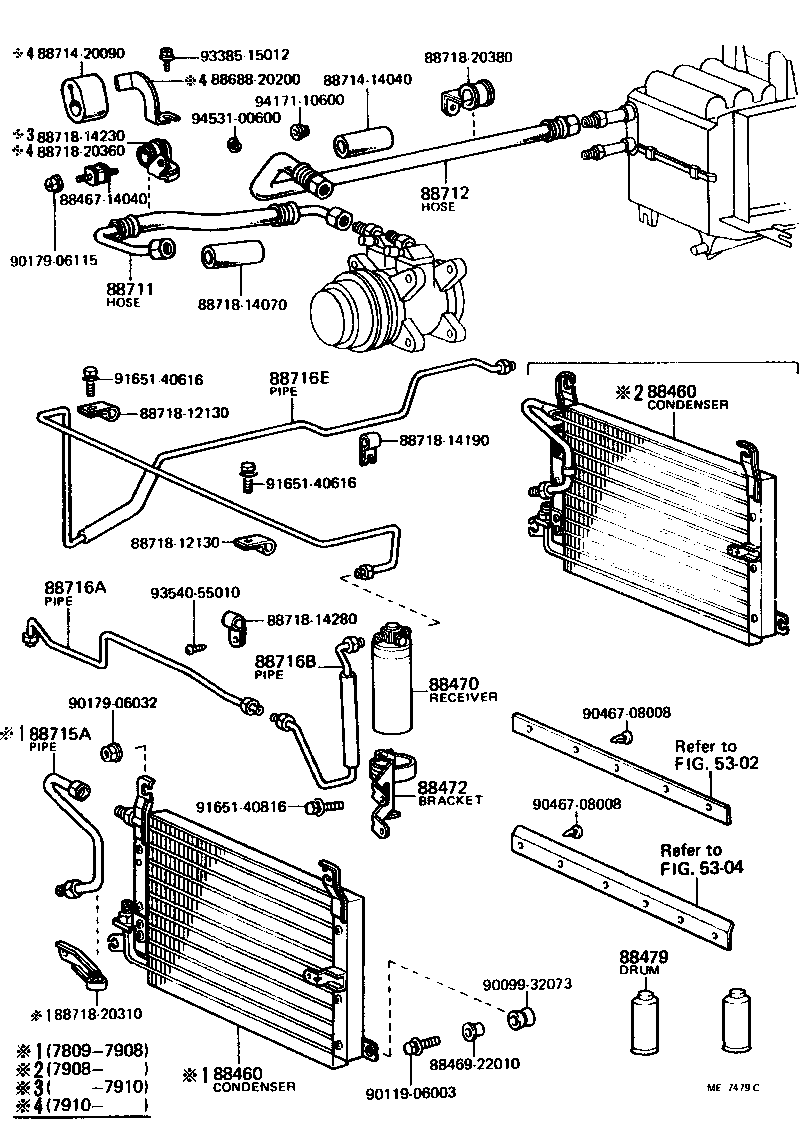

Toyota Corona RT134 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-20100	RT134	09/1978 - 08/1979	1
88460-20101	RT134	08/1979 - 08/1980	1
88460 - CONDENSER ASSY, COOLER
88460-20100	RT134	09/1978 - 08/1979	1
88460-20101	RT134	08/1979 - 08/1980	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20070	RT134	09/1978 - 08/1979	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-14111	RT13#	09/1978 - 12/1981	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88434-30010	RT134	09/1978 - 08/1979	2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-20170	RT134	09/1978 - 08/1979	1
88711-20172	RT134	08/1979 - 08/1980	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-14490	RT134	08/1979 - 08/1980	1
88712-14440	RT134	09/1978 - 08/1979	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-20060	RT134	09/1978 - 08/1979	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-20360	RT134	09/1978 - 08/1979	1
88716-20470	RT134	08/1979 - 08/1980	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-20490	RT134	08/1979 - 08/1980	1
88716-20380	RT134	09/1978 - 08/1979	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-20370	RT134	09/1978 - 08/1979	1
88716-20480	RT134	08/1979 - 08/1980	1
Common parts
88467-14040
88469-22010
88688-20200
88714-14040
88714-20090
88718-12130
88718-14070
88718-14190
88718-14230
88718-14280
88718-20310
88718-20360
88718-20380
90099-32073
90119-06003
90179-06032
90179-06115
90467-08008
91651-40616
91651-40816
93385-15012
93540-55010
94171-10600
94531-00600
Linked diagrams
5302
5304

RT134L-TENDSK (1978)
