RT134L-TENDSA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)

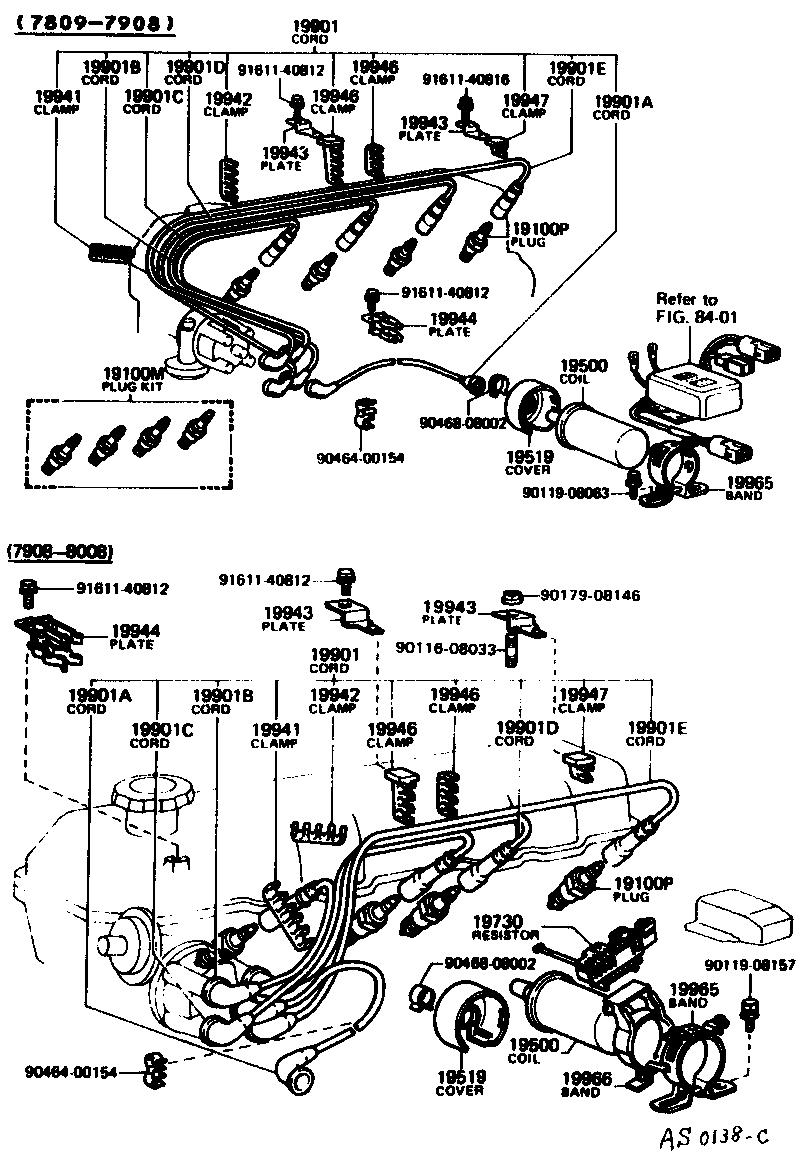

Click highlighted areas on diagram

diagram 19100M 19100P 19100P 19500 19500 19519 19519 19730 19901 19901 19901A 19901A 19901B 19901B 19901C 19901C 19901D 19901D 19901E 19901E 19941 19941 19942 19942 19943 19943 19943 19943 19944 19944 19946 19946 19946 19946 19947 19947 19965 19965 19966 8401 9011608033 9011908063 9011908157 9017908146 9046400154 9046400154 9046808002 9046808002 9161140812 9161140812 9161140812 9161140812 9161140816
Part # Description Qty Price
19100M - PLUG KIT, SPARK
04195-34110

20R..RT134..USA

W16EX-U

 1
19100P - PLUG, SPARK
90919-01059

20R..RT134..USA

W16EX-U,W16EX-U

 4
19100P - PLUG, SPARK
90919-01059

20R..RT134..USA

W16EX-U,W16EX-U

 4
19500 - COIL ASSY, IGNITION
90919-02113

20R..RT134..USA

 1
90919-02083

20R..RT134

 1
90919-02117

20R..RT134..(3FC,3HC,5F)..USA

CALIFORNIA SPEC

 1
19500 - COIL ASSY, IGNITION
90919-02113

20R..RT134..USA

 1
90919-02083

20R..RT134

 1
90919-02117

20R..RT134..(3FC,3HC,5F)..USA

CALIFORNIA SPEC

 1
19519 - COVER, IGNITION COIL
19519-38030

20R..RT134..USA

COLD SPEC

 1
19519 - COVER, IGNITION COIL
19519-38030

20R..RT134..USA

COLD SPEC

 1
19730 - RESISTOR, IGNITION COIL
90919-04029

20R..RT134..USA

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90999-99048

20R..RT134

 1
90999-99063

20R..RT134

 1
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90999-99048

20R..RT134

 1
90999-99063

20R..RT134

 1
19901A - CORD, COIL RESISTIVE
90919-13138

20R..RT134

 1
90919-13098

20R..RT134

 1
19901A - CORD, COIL RESISTIVE
90919-13138

20R..RT134

 1
90919-13098

20R..RT134

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12230

20R..RT134

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-12230

20R..RT134

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12231

20R..RT134

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-12231

20R..RT134

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12232

20R..RT134

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-12232

20R..RT134

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12233

20R..RT134

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-12233

20R..RT134

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

20R..RT134

 1
90464-00045

20R..RT134

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90464-00214

20R..RT134

 1
90464-00045

20R..RT134

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

20R..RT134

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00061

20R..RT134

 1
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38010

20R..RT134

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38010

20R..RT134

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38010

20R..RT134

 2
19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1
19943-38010

20R..RT134

 2
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-38010

20R,22R..RT13#

 1
19944 - PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2
19944-38010

20R,22R..RT13#

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00144

20R..RT134

RR

 1
90464-00060

20R..RT134

FR

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00144

20R..RT134

RR

 1
90464-00060

20R..RT134

FR

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00144

20R..RT134

RR

 1
90464-00060

20R..RT134

FR

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00144

20R..RT134

RR

 1
90464-00060

20R..RT134

FR

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

20R..RT134

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
90464-00059

20R..RT134

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03073

20R..RT134..USA

 1
90919-03065

20R..RT134..USA

COLD SPEC

 1
90919-03076

20R..RT134..(3FC,3HC,5F)..USA

CALIFORNIA SPEC

 1
90919-03067

20R..RT134..USA

 1
19965 - BAND, IGNITION COIL, NO.1
90919-03073

20R..RT134..USA

 1
90919-03065

20R..RT134..USA

COLD SPEC

 1
90919-03076

20R..RT134..(3FC,3HC,5F)..USA

CALIFORNIA SPEC

 1
90919-03067

20R..RT134..USA

 1
19966 - BAND, IGNITION COIL, NO.2
90919-03072

20R..RT134..USA

 1
Common parts
90116-08033
90119-08063
90119-08157
90179-08146
90464-00154
90468-08002
91611-40812
91611-40816
Linked diagrams
8401
