RT134L-TENDSA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

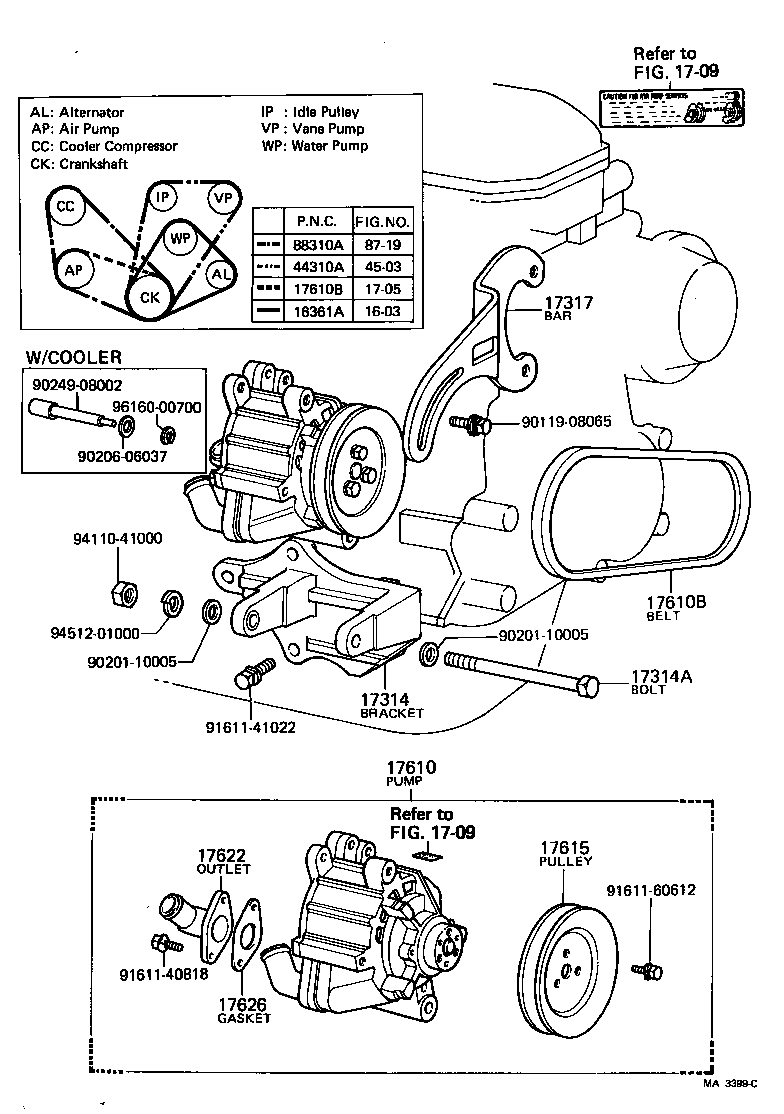

(7809-7908)

Click highlighted areas on diagram

diagram 1709 1709 17314 17314A 17317 17610 17610B 17615 17622 17626 9011908065 9020110005 9020110005 9020606037 9024908002 9161140818 9161141022 9161160612 9411041000 9451201000 9616000700
Part # Description Qty Price
17314 - BRACKET, AIR PUMP
17314-37010

20R..RT134

 1
17314-38010

20R..RT134

 1
17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)
90101-10373

20R..RT134

 1
90101-10463

20R..RT134

 1
17317 - BAR, AIR PUMP ADJUSTING, NO.1
17317-38010

20R..RT134

 1
17317-37010

20R..RT134

 1
17610 - PUMP ASSY, AIR
17610-38021

20R..RT134

 1
17610-38020

20R..RT134

 1
17610B - BELT, V(FOR AIR PUMP)
99332-00865

20R..RT134

L=865

 1
99332-10830

20R..RT134

L=830

 1
17615 - PULLEY(FOR AIR PUMP)
17615-38010

20R..RT134

 1
17622 - OUTLET, AIR PUMP
17622-38010

20R..RT134

 1
17626 - GASKET, AIR PUMP OUTLET
17626-38010

20R..RT134

 1
Common parts
90119-08065
90201-10005
90206-06037
90249-08002
91611-40818
91611-41022
91611-60612
94110-41000
94512-01000
96160-00700
Linked diagrams
1709

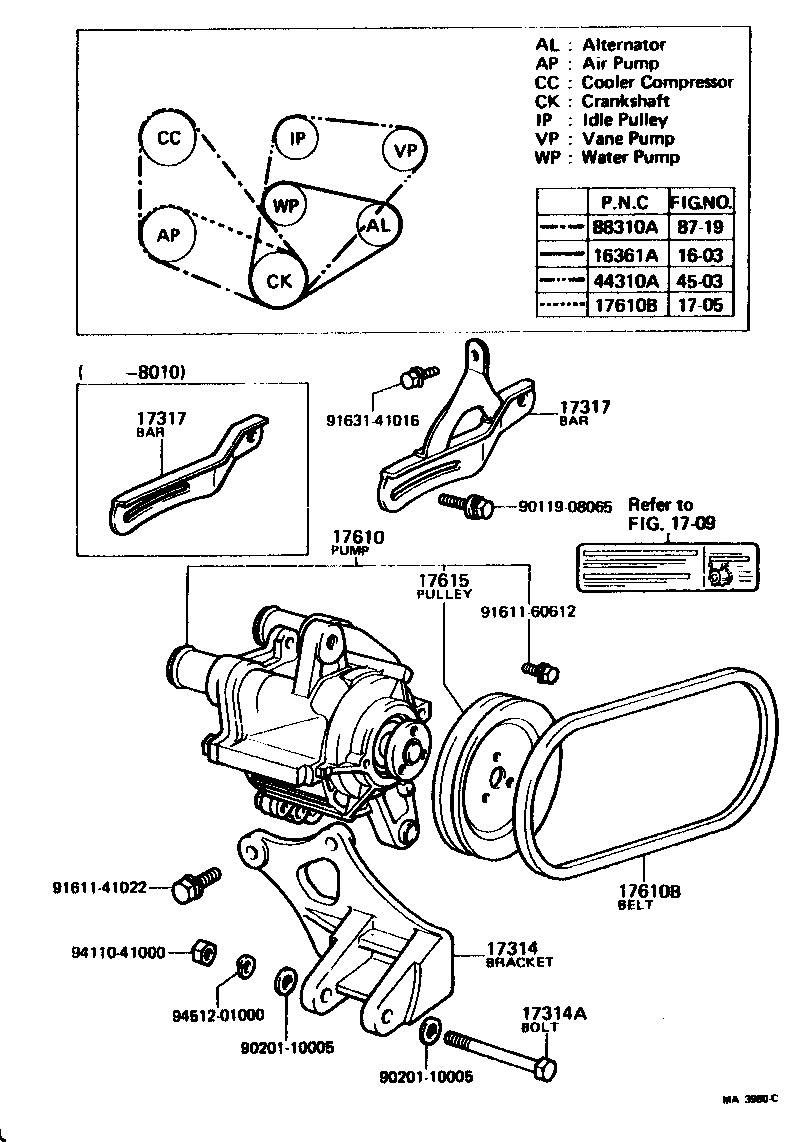

(7908- )

Click highlighted areas on diagram

diagram 1603 16361A 1705 1709 17314 17314A 17317 17317 17610 17610B 17610B 17615 44310A 4503 8719 88310A 9011908065 9020110005 9020110005 9161141022 9161160612 9163141016 9411041000 9451201000
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99331-00880

20R..RT134

L=880

 1
17314 - BRACKET, AIR PUMP
17314-37010

20R..RT134

 1
17314-38010

20R..RT134

 1
17314A - BOLT, HEXAGON(FOR AIR PUMP BRACKET SETTING)
90101-10373

20R..RT134

 1
90101-10463

20R..RT134

 1
17317 - BAR, AIR PUMP ADJUSTING, NO.1
17317-38010

20R..RT134

 1
17317-37010

20R..RT134

 1
17317 - BAR, AIR PUMP ADJUSTING, NO.1
17317-38010

20R..RT134

 1
17317-37010

20R..RT134

 1
17610 - PUMP ASSY, AIR
17610-38021

20R..RT134

 1
17610-38020

20R..RT134

 1
17610B - BELT, V(FOR AIR PUMP)
99332-00865

20R..RT134

L=865

 1
99332-10830

20R..RT134

L=830

 1
17610B - BELT, V(FOR AIR PUMP)
99332-00865

20R..RT134

L=865

 1
99332-10830

20R..RT134

L=830

 1
17615 - PULLEY(FOR AIR PUMP)
17615-38010

20R..RT134

 1
44310A - BELT, V(FOR VANE PUMP)
99332-51135

RT134

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-01140

RT134

L=1140

 1
99332-11110

RT134

L=1140

 1
Common parts
90119-08065
90201-10005
91611-41022
91611-60612
91631-41016
94110-41000
94512-01000
Linked diagrams
1603
1705
1709
4503
8719
