RT134L-TENDSA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)

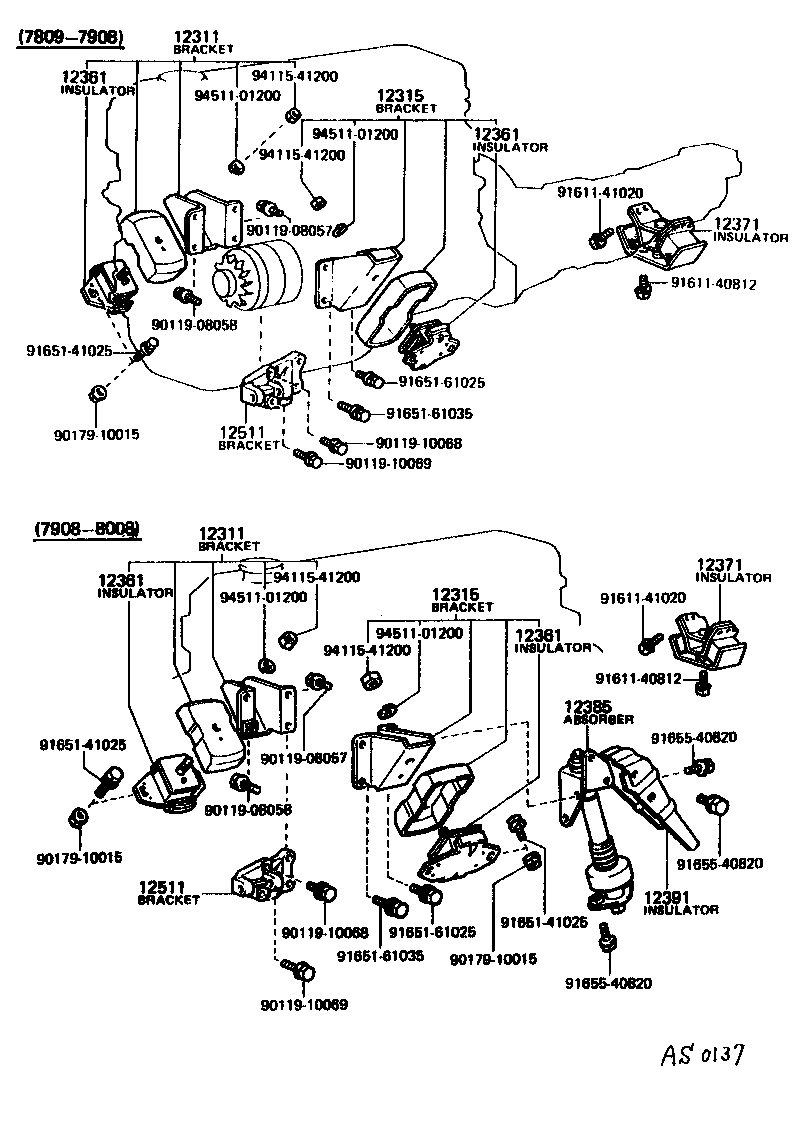

Click highlighted areas on diagram

diagram 12311 12311 12315 12315 12361 12361 12361 12361 12371 12371 12385 12391 12511 12511 9011908057 9011908057 9011908058 9011908058 9011910068 9011910068 9011910069 9011910069 9017910015 9017910015 9017910015 9161140812 9161140812 9161141020 9161141020 9165141025 9165141025 9165141025 9165161025 9165161025 9165161035 9165161035 9165540820 9165540820 9165540820 9411541200 9411541200 9411541200 9411541200 9451101200 9451101200 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-38100

20R..RT134

 1
12301-38160

20R..RT134

 1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-38100

20R..RT134

 1
12301-38160

20R..RT134

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-38110

20R..RT134

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12302-38110

20R..RT134

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38090

20R..RT134

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38090

20R..RT134

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38090

20R..RT134

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38090

20R..RT134

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

20R,22R..RT13#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

20R,22R..RT13#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-38030

20R,22R..RT13#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-38030

20R,22R..RT13#

 1
Common parts
90119-08057
90119-08058
90119-10068
90119-10069
90179-10015
91611-40812
91611-41020
91651-41025
91651-61025
91651-61035
91655-40820
94115-41200
94511-01200
