RT134L-TEMESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809-8008)LE

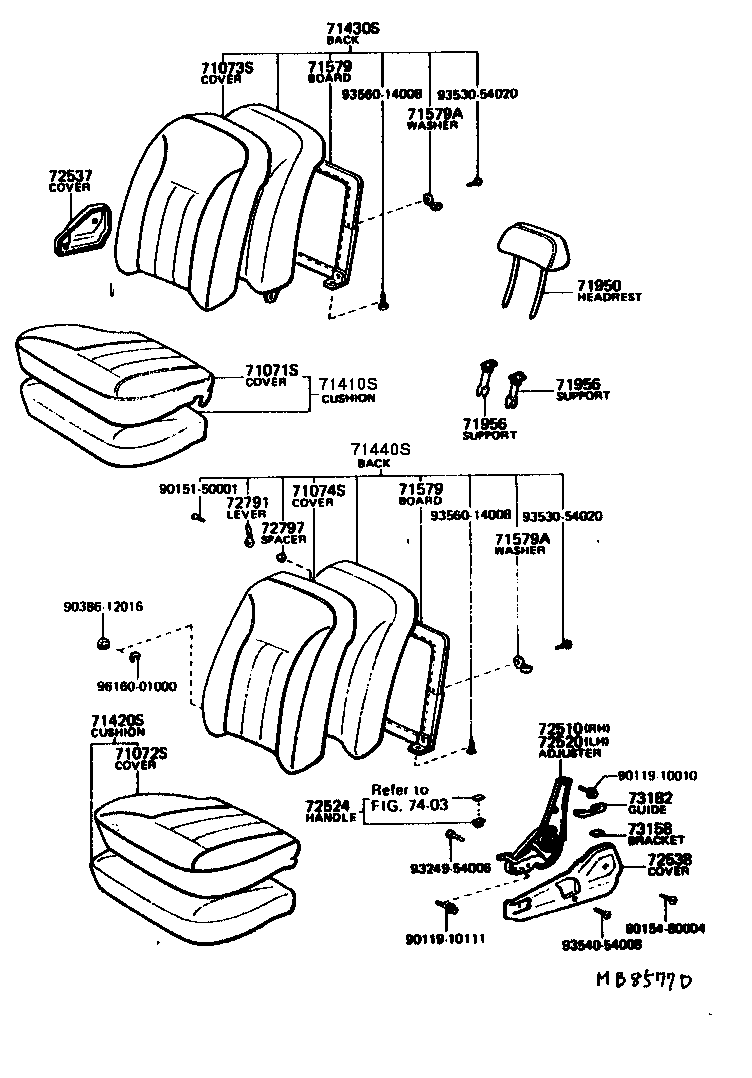

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71579 71579 71579A 71579A 71950 71956 71956 72510 72520 72524 72537 72538 72791 72797 73158 73182 7403 9011910010 9011910111 9015150001 9015480004 9038612016 9324954006 9353054020 9353054020 9354054008 9356014008 9356014008 9616001000
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-2071005

RT134..LE

FB-C,BEIGE,BEIGE

 1
71071-2071005

RT134..(LB,SED)..LE

FB-C,BEIGE,BEIGE

 1
71071-2071001

RT134..LE

FB-C,BLACK,BLACK

 1
71071-2071002

RT134..LE

FB-C,DARK WINE,RED/MAROON

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-2035002

RT134..LE

FB-C,DARK WINE,RED/MAROON

 1
71072-2035005

RT134..LE

FB-C,BEIGE,BEIGE

 1
71072-2035005

RT134..(LB,SED)..LE

FB-C,BEIGE,BEIGE

 1
71072-2035001

RT134..LE

FB-C,BLACK,BLACK

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-2070005

RT134..LE

FB-C,BEIGE,BEIGE

 1
71073-2070002

RT134..LE

FB-C,DARK WINE,RED/MAROON

 1
71073-2070005

RT134..(LB,SED)..LE

FB-C,BEIGE,BEIGE

 1
71073-2070001

RT134..LE

FB-C,BLACK,BLACK

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-2043005

RT134..LE

FB-C,BEIGE,BEIGE

 1
71074-2043005

RT134..(LB,SED)..LE

FB-C,BEIGE,BEIGE

 1
71074-2043002

RT134..LE

FB-C,DARK WINE,RED/MAROON

 1
71074-2043001

RT134..LE

FB-C,BLACK,BLACK

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-2077005

RT134..LE

FB-C,BEIGE,BEIGE

 1
71410-2077002

RT134..LE

FB-C,DARK WINE,RED/MAROON

 1
71410-2077001

RT134..LE

FB-C,BLACK,BLACK

 1
71410-2077005

RT134..(LB,SED)..LE

FB-C,BEIGE,BEIGE

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-2038001

RT134..LE

FB-C,BLACK,BLACK

 1
71420-2038002

RT134..LE

FB-C,DARK WINE,RED/MAROON

 1
71420-2038005

RT134..(LB,SED)..LE

FB-C,BEIGE,BEIGE

 1
71420-2038005

RT134..LE

FB-C,BEIGE,BEIGE

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-2075002

RT134..LE

FB-C,DARK WINE,RED/MAROON

 1
71430-2075001

RT134..LE

FB-C,BLACK,BLACK

 1
71430-2075005

RT134..LE

FB-C,BEIGE,BEIGE

 1
71430-2075005

RT134..(LB,SED)..LE

FB-C,BEIGE,BEIGE

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-2048005

RT134..LE

FB-C,BEIGE,BEIGE

 1
71440-2048002

RT134..LE

FB-C,DARK WINE,RED/MAROON

 1
71440-2048001

RT134..LE

FB-C,BLACK,BLACK

 1
71440-2048005

RT134..(LB,SED)..LE

FB-C,BEIGE,BEIGE

 1
71579 - BOARD, FRONT SEAT BACK
71701-2204101

RT134..LE

BLACK,BLACK

 2
71701-2204105

RT134..LE

BEIGE,BEIGE

 2
71701-2204102

RT134..LE

DARK WINE,RED/MAROON

 2
71579 - BOARD, FRONT SEAT BACK
71701-2204101

RT134..LE

BLACK,BLACK

 2
71701-2204105

RT134..LE

BEIGE,BEIGE

 2
71701-2204102

RT134..LE

DARK WINE,RED/MAROON

 2
71579A - WASHER, FRONT SEAT BACK BOARD SETTING
71788-2201001

RT13#..LE

BLACK,BLACK

 4
71788-2201005

RT134..LE

BEIGE,BEIGE

 4
71788-2201002

RT13#..LE

DARK WINE,RED/MAROON

 4
71579A - WASHER, FRONT SEAT BACK BOARD SETTING
71788-2201001

RT13#..LE

BLACK,BLACK

 4
71788-2201005

RT134..LE

BEIGE,BEIGE

 4
71788-2201002

RT13#..LE

DARK WINE,RED/MAROON

 4
71950 - HEADREST ASSY, FRONT SEAT
71910-2022001

RT134

BLACK,BLACK

 2
71910-2022005

RT134

BEIGE,BEIGE

 2
71910-2022002

RT134

DARK WINE,RED/MAROON

 2
71956 - SUPPORT, HEADREST
71956-3002002

RT134

W/O LOCK,DARK WINE,DARK WINE

 2
71956-3002005

RT134

W/O LOCK,BEIGE,BEIGE

 2
71990-3002001

RT134

W/LOCK,BLACK,BLACK

 2
71956-3002001

RT134

W/O LOCK,BLACK,BLACK

 2
71990-3002002

RT134

W/LOCK,DARK WINE,DARK WINE

 2
71990-3002005

RT134

W/LOCK,BEIGE,BEIGE

 2
71956 - SUPPORT, HEADREST
71956-3002002

RT134

W/O LOCK,DARK WINE,DARK WINE

 2
71956-3002005

RT134

W/O LOCK,BEIGE,BEIGE

 2
71990-3002001

RT134

W/LOCK,BLACK,BLACK

 2
71956-3002001

RT134

W/O LOCK,BLACK,BLACK

 2
71990-3002002

RT134

W/LOCK,DARK WINE,DARK WINE

 2
71990-3002005

RT134

W/LOCK,BEIGE,BEIGE

 2
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-20100

RT134..3FC,4F,5F

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-20110

RT134..3FC,4F,5F

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72525-2005001

RT13#

RH,BLACK,BLACK

 1
72526-2004005

RT134

LH,BEIGE,BEIGE

 1
72526-2004001

RT13#

LH,BLACK,BLACK

 1
72526-2004002

RT13#

LH,DARK WINE,RED/MAROON

 1
72525-2005002

RT13#

RH,DARK WINE,RED/MAROON

 1
72525-2005005

RT134

RH,BEIGE,BEIGE

 1
72537 - COVER, RECLINING HINGE OUTER, RH
71811-2008002

RT134..3FC,4F,5F

DARK WINE,RED/MAROON

 1
71811-2008001

RT134..3FC,4F,5F

BLACK,BLACK

 1
71811-2008005

RT134..3FC,4F,5F

BEIGE,BEIGE

 1
72538 - COVER, RECLINING HINGE OUTER, LH
71812-2004002

RT134..3FC,4F,5F

DARK WINE,RED/MAROON

 1
71812-2004001

RT134..3FC,4F,5F

BLACK,BLACK

 1
71812-2004005

RT134..3FC,4F,5F

BEIGE,BEIGE

 1
72791 - LEVER, LUMBAR SUPPORT
72791-2001002

RT134..LE

DARK WINE,RED/MAROON

 1
72791-2001001

RT134..LE

BLACK,BLACK

 1
72791-2001005

RT134..LE

BEIGE,BEIGE

 1
72797 - SPACER, LUMBAR SUPPORT
72797-2201002

RT134..LE

DARK WINE,RED/MAROON

 1
72797-2201001

RT134..LE

BLACK,BLACK

 1
72797-2201005

RT134..LE

BEIGE,BEIGE

 1
73158 - BRACKET, SEAT BELT GUIDE SET
73158-20010

RT134..3FC,4F,5F

 2
73182 - GUIDE, FRONT SEAT LAP BELT, OUTER
73181-2002005

RT134..3FC,4F,5F

RH,BEIGE,BEIGE

 1
73181-2002001

RT134..3FC,4F,5F

RH,BLACK,BLACK

 1
73182-2001002

RT134..3FC,4F,5F

LH,DARK WINE,RED/MAROON

 1
73181-2002002

RT134..3FC,4F,5F

RH,DARK WINE,RED/MAROON

 1
73182-2001005

RT134..3FC,4F,5F

LH,BEIGE,BEIGE

 1
73182-2001001

RT134..3FC,4F,5F

LH,BLACK,BLACK

 1
Common parts
90119-10010
90119-10111
90151-50001
90154-80004
90386-12016
93249-54006
93530-54020
93540-54008
93560-14008
96160-01000
Linked diagrams
7403
