RT134L-TEMDSK (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

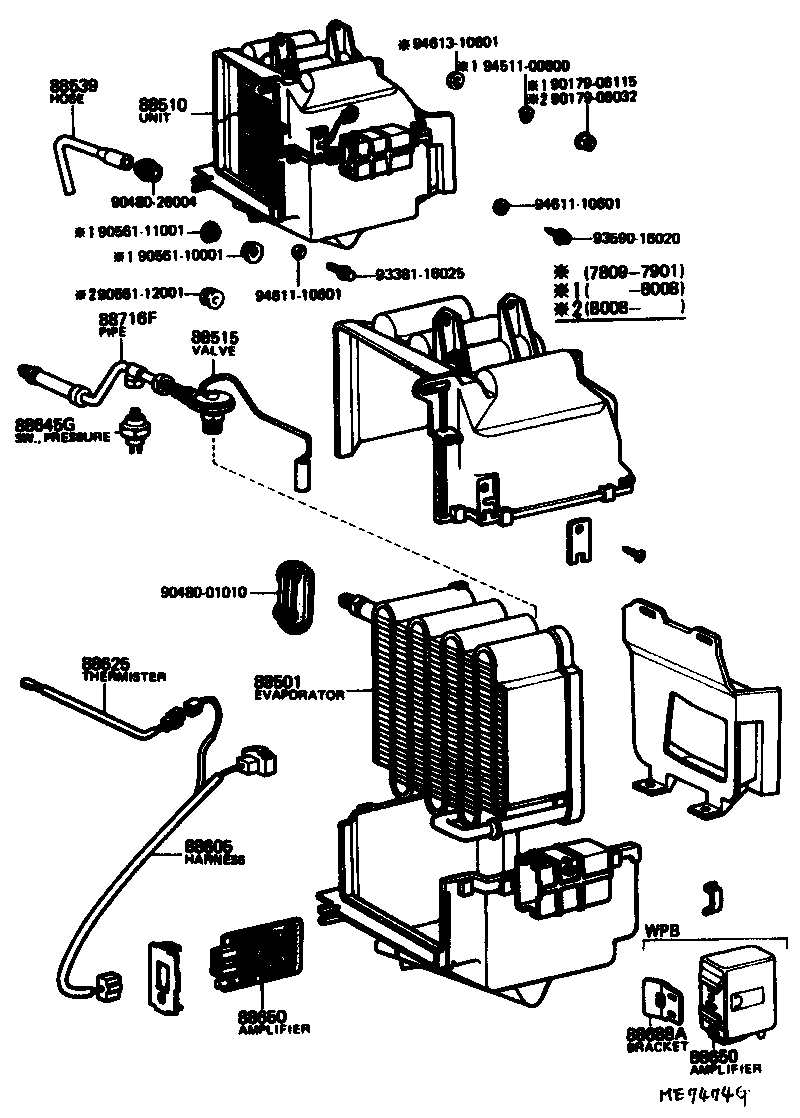

Click highlighted areas on diagram

diagram 88501 88510 88515 88539 88605 88625 88645G 88650 88650 88688A 88716F 9017906032 9017906115 9048001010 9048026004 9056110001 9056111001 9056112001 9338116025 9359016020 9451100600 9461110601 9461110601 9461310601
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20060

RT134

 1
88510 - UNIT ASSY, COOLER
88510-20150

RT134

 1
88515 - VALVE, COOLER EXPANSION
88515-20040

RT134

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-20080

RT13#

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-20130

RT134

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20060

RT13#

 1
88645G - SWITCH, PRESSURE
88645-22010

RT13#

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20100

RT134

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20100

RT134

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-20500

RT134..LPB

 1
Common parts
90179-06032
90179-06115
90480-01010
90480-26004
90561-10001
90561-11001
90561-12001
93381-16025
93590-16020
94511-00600
94611-10601
94613-10601
