RT134L-TEMDSK (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

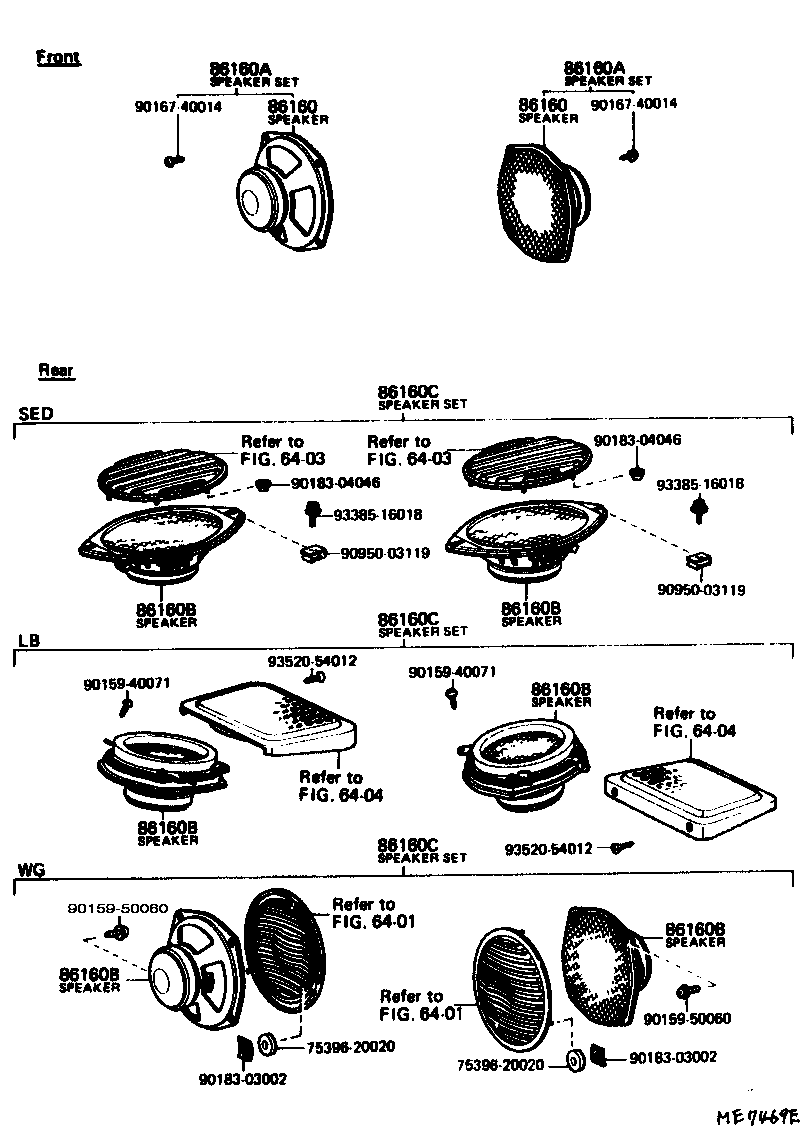

Click highlighted areas on diagram

diagram 6401 6401 6403 6403 6404 6404 7539620020 7539620020 86160 86160 86160A 86160A 86160B 86160B 86160B 86160B 86160B 86160B 86160C 86160C 86160C 9015940071 9015940071 9015950060 9015950060 9016740014 9016740014 9018303002 9018303002 9018304046 9018304046 9095003119 9095003119 9338516018 9338516018 9352054012 9352054012
Part # Description Qty Price
86160A - SPEAKER SET, FRONT
86160-19125

RT134

 2
86160A - SPEAKER SET, FRONT
86160-19125

RT134

 2
86160B - SPEAKER ASSY, REAR
86160-20080

RT134..SED

 2
86160B - SPEAKER ASSY, REAR
86160-20080

RT134..SED

 2
86160B - SPEAKER ASSY, REAR
86160-20080

RT134..SED

 2
86160B - SPEAKER ASSY, REAR
86160-20080

RT134..SED

 2
86160B - SPEAKER ASSY, REAR
86160-20080

RT134..SED

 2
86160B - SPEAKER ASSY, REAR
86160-20080

RT134..SED

 2
86160C - SPEAKER SET, REAR
86160-29095

RT134..SED

 1
86160C - SPEAKER SET, REAR
86160-29095

RT134..SED

 1
86160C - SPEAKER SET, REAR
86160-29095

RT134..SED

 1
Common parts
75396-20020
90159-40071
90159-50060
90167-40014
90183-03002
90183-04046
90950-03119
93385-16018
93520-54012
Linked diagrams
6401
6403
6404
