RT134L-TEMDSK (1978)
Toyota Corona
(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

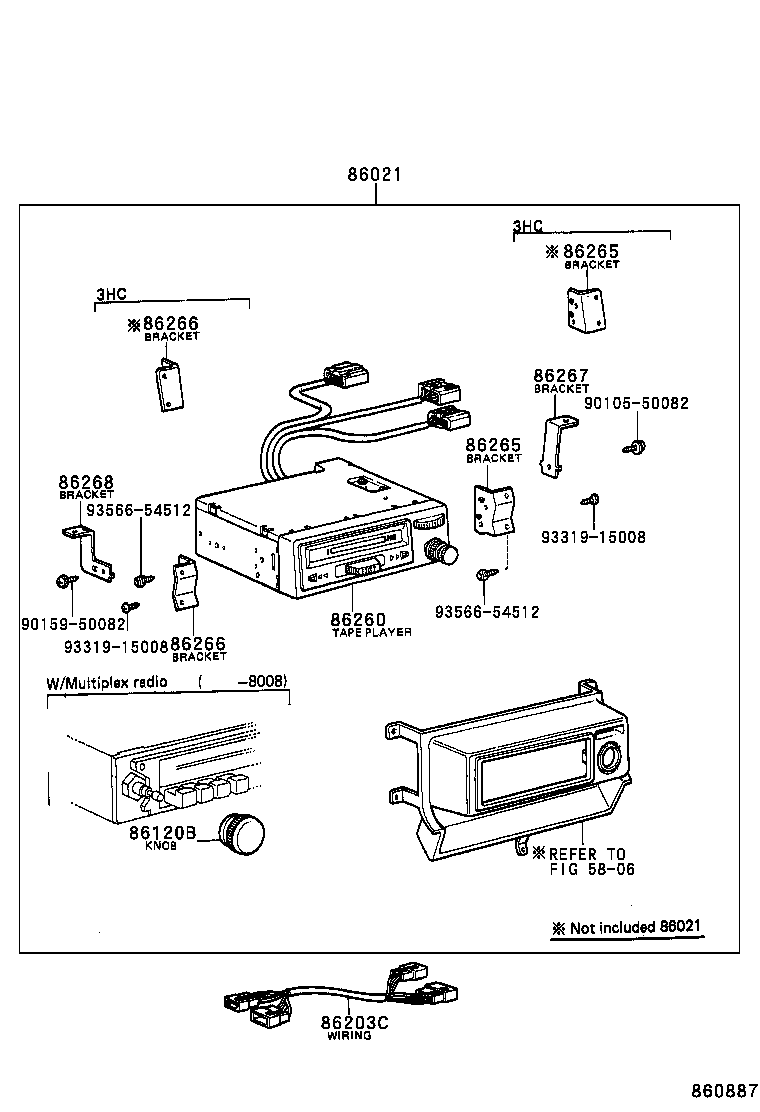

| 86021 - TAPE PLAYER AND SETTING PARTS SET | ||||
| 86021-29065 |
RT134 W/MULTIPLEX RADIO |
1 | ||
| 86021-29075 |
RT134 |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86125-20060 |
RT134 |
1 | ||
| 86124-20080 |
RT134 MULTIPLEX:LH,W/TAPE PLAYER |
1 | ||
| 86203C - WIRE, TAPE PLAYER | ||||
| 86203-20020 |
RT134 |
1 | ||
| 86203-20030 |
RT134 W/MULTIPLEX RADIO |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-20080 |
RT134 |
1 | ||
| 86260-20070 |
RT134 W/MULTIPLEX RADIO |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86265-20010 |
RT134..3FC,4F,5F |
1 | ||
| 86265 - BRACKET, TAPE PLAYER, NO.1 | ||||
| 86265-20010 |
RT134..3FC,4F,5F |
1 | ||
| 86266 - BRACKET, TAPE PLAYER, NO.2 | ||||
| 86265-20020 |
RT134..3FC,4F,5F |
1 | ||
| 86266 - BRACKET, TAPE PLAYER, NO.2 | ||||
| 86265-20020 |
RT134..3FC,4F,5F |
1 | ||
| 86267 - BRACKET, TAPE PLAYER, NO.3 | ||||
| 86266-20020 |
RT134 |
1 | ||
| 86268 - BRACKET, TAPE PLAYER, NO.4 | ||||
| 86266-20030 |
RT134 |
1 | ||
| Common parts | ||||
| 90105-50082 | ||||
| 90159-50082 | ||||
| 93319-15008 | ||||
| 93566-54512 | ||||
| Linked diagrams | ||||
| 5806 | ||||
(7809-8008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

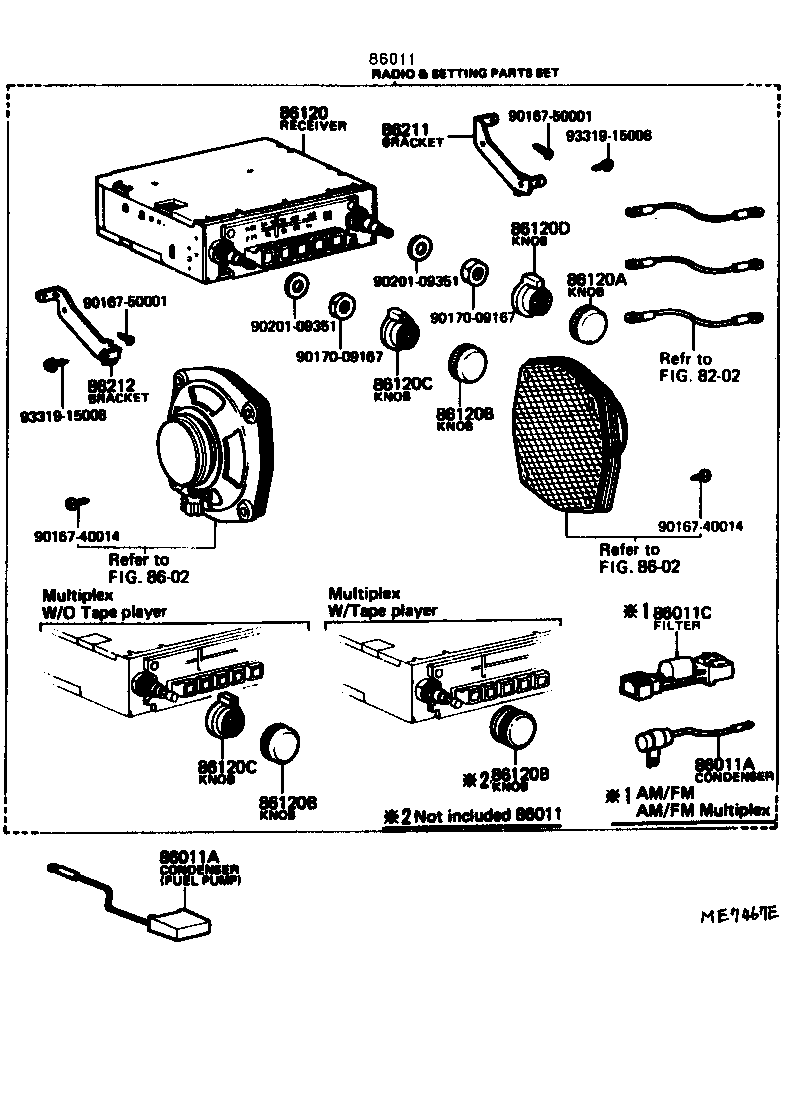

| 86011 - RADIO & SETTING PARTS SET | ||||
| 86011-29095 |
RT134 AM,5-BUTTON |
1 | ||
| 86011-29126 |
RT134 AM/FM,5-BUTTON |
1 | ||
| 86011-29125 |
RT134 AM/FM,5-BUTTON |
1 | ||
| 86011-29135 |
RT134 AM/FM,MULTIPLEX,5-BUTTON |
1 | ||
| 86011-29136 |
RT134 AM/FM,MULTIPLEX,5-BUTTON |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04011 |
RT134 PLUG CONNECTOR |
1 | ||
| 90980-04025 |
RT134..LB,SED FUEL PUMP |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04011 |
RT134 PLUG CONNECTOR |
1 | ||
| 90980-04025 |
RT134..LB,SED FUEL PUMP |
1 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05052 |
RT134 AM/FM & AM/FM MULTIPLEX |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-20260 |
RT134 AM/FM,5-BUTTON |
1 | ||
| 86120-20230 |
RT134 AM,5-BUTTON |
1 | ||
| 86120-20270 |
RT134 AM/FM MULTI.MATSUSHITA |
1 | ||
| 86120-20261 |
RT134 AM/FM,5-BUTTON |
1 | ||
| 86120-20271 |
RT134 AM/FM MULTI,MATSUSHITA |
1 | ||
| 86120-20290 |
RT134 AM/FM MULTI,TEN |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-20060 |
RT134 |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86125-20060 |
RT134 |
1 | ||
| 86124-20080 |
RT134 MULTIPLEX:LH,W/TAPE PLAYER |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86125-20060 |
RT134 |
1 | ||
| 86124-20080 |
RT134 MULTIPLEX:LH,W/TAPE PLAYER |
1 | ||
| 86120B - KNOB, RADIO RECEIVER TUNING, NO.1 | ||||
| 86125-20060 |
RT134 |
1 | ||
| 86124-20080 |
RT134 MULTIPLEX:LH,W/TAPE PLAYER |
1 | ||
| 86120C - KNOB, RADIO RECEIVER TUNING, NO.2 | ||||
| 86124-20090 |
RT134 LH |
1 | ||
| 86124-20070 |
RT134 MULTIPLEX:LH,W/O TAPE PLAYER |
1 | ||
| 86120C - KNOB, RADIO RECEIVER TUNING, NO.2 | ||||
| 86124-20090 |
RT134 LH |
1 | ||
| 86124-20070 |
RT134 MULTIPLEX:LH,W/O TAPE PLAYER |
1 | ||
| 86120D - KNOB, RADIO RECEIVER TONE | ||||
| 86124-20060 |
RT134 RH |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-20060 |
RT134 MATSUSHITA |
1 | ||
| 86211-20090 |
RT134 MATSUSHITA |
1 | ||
| 86211-20070 |
RT134 TEN |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-20060 |
RT134 TEN |
1 | ||
| 86212-20050 |
RT134 MATSUSHITA |
1 | ||
| 86212-20080 |
RT134 MATSUSHITA |
1 | ||
| Common parts | ||||
| 90167-40014 | ||||
| 90167-50001 | ||||
| 90170-09167 | ||||
| 90201-09351 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8602 | ||||
