RT134L-TEMDSK (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

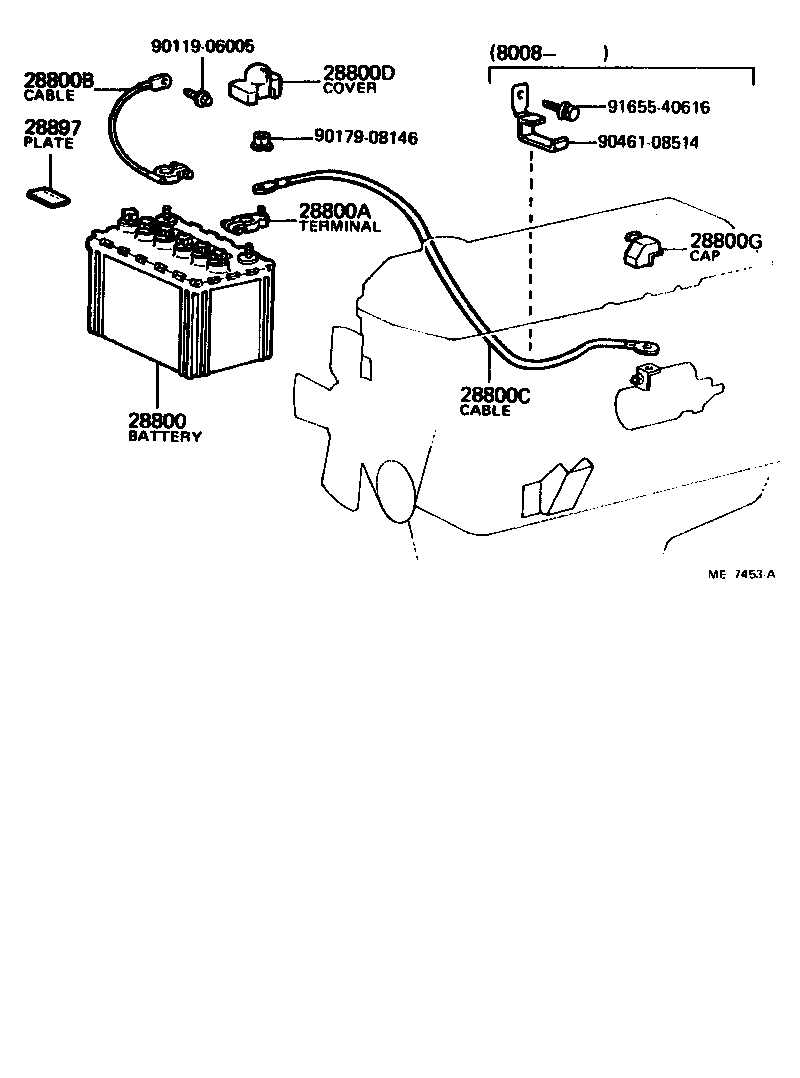

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800C 28800D 28800G 28897 9011906005 9017908146 9046108514 9165540616
Part # Description Qty Price
28800 - BATTERY
28800-33111

20R,22R..RT13#..CND

55D26R,N50Z

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

20R,22R..RT13#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02136

20R,22R..RT13#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-20240

20R..RT134..MTM

 1
82021-20220

20R..RT134..CND

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-14020

20R,22R..RT13#

 1
28897 - PLATE, BATTERY CAUTION
28897-38010

20R,22R..RT13#..CND

N50Z

 1
Common parts
90119-06005
90179-08146
90461-08514
91655-40616
