RT134L-TEMDSK (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

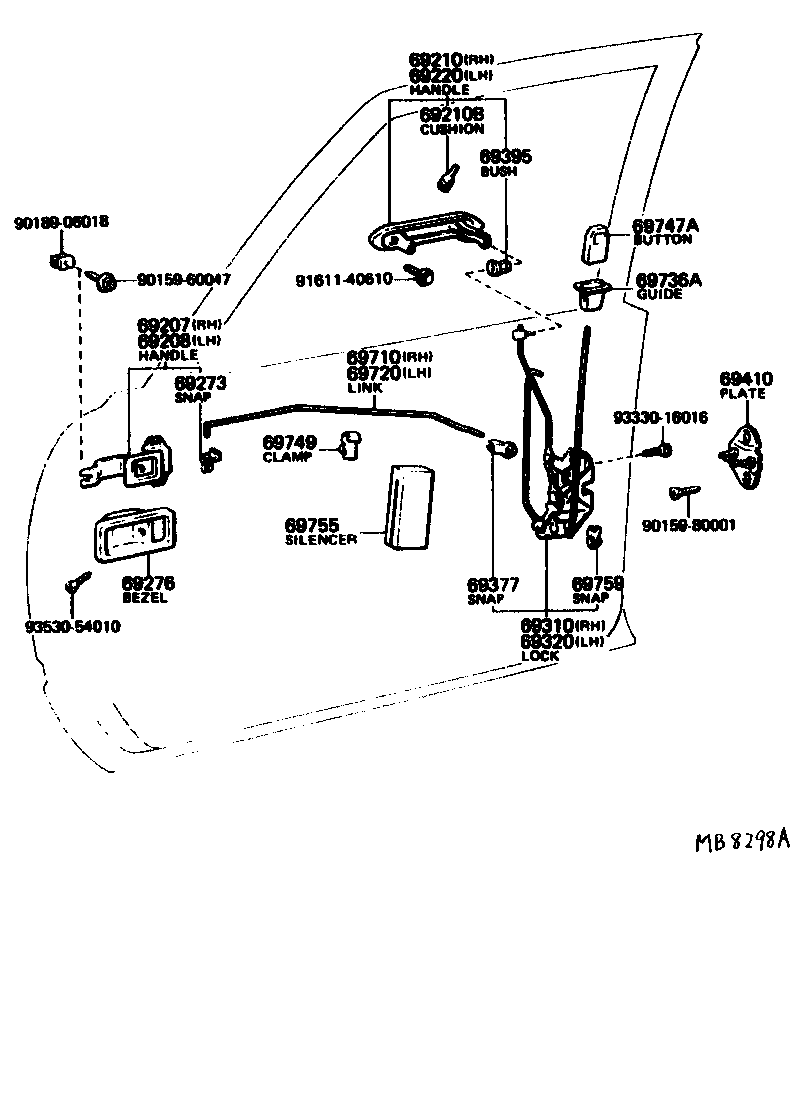

Click highlighted areas on diagram

diagram 69207 69208 69210 69210B 69220 69273 69276 69310 69320 69377 69395 69410 69710 69720 69736A 69747A 69749 69755 69759 9015960047 9015980001 9018906018 9161140610 9333016016 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-20020

RT13#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-20020

RT13#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-20060

RT134

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

RT13#

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-20060

RT134

 1
69273 - SNAP, DOOR INSIDE HANDLE ROD
69273-30020

RT13#

 2
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1604001

RT13#

BLACK,BLACK

 1
69277-1604005

RT134

BEIGE,BEIGE

 1
69277-1604002

RT13#

DARK WINE,RED/MAROON

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-20080

RT134..LPB

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-20100

RT134..LPB

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69377-30020

RT134

 2
69395 - BUSH(FOR DOOR OUTSIDE HANDLE)
69395-22010

RT13#

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22020

RT134..LPB

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-20040

RT134

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-20040

RT134

 1
69736A - GUIDE, FRONT DOOR LOCK LINK
69736-22020

RT13#

 2
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-2002005

RT134

BEIGE,BEIGE

 2
69741-2002002

RT13#

DARK WINE,RED/MAROON

 2
69741-2002001

RT13#

BLACK,BLACK

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

RT13#

 2
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-30021

RT13#

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-12030

RT134

 4
Common parts
90159-60047
90159-80001
90189-06018
91611-40610
93330-16016
93530-54010
