RT134L-TEMDSK (1978)
Toyota Corona
(7809- )LB,SED

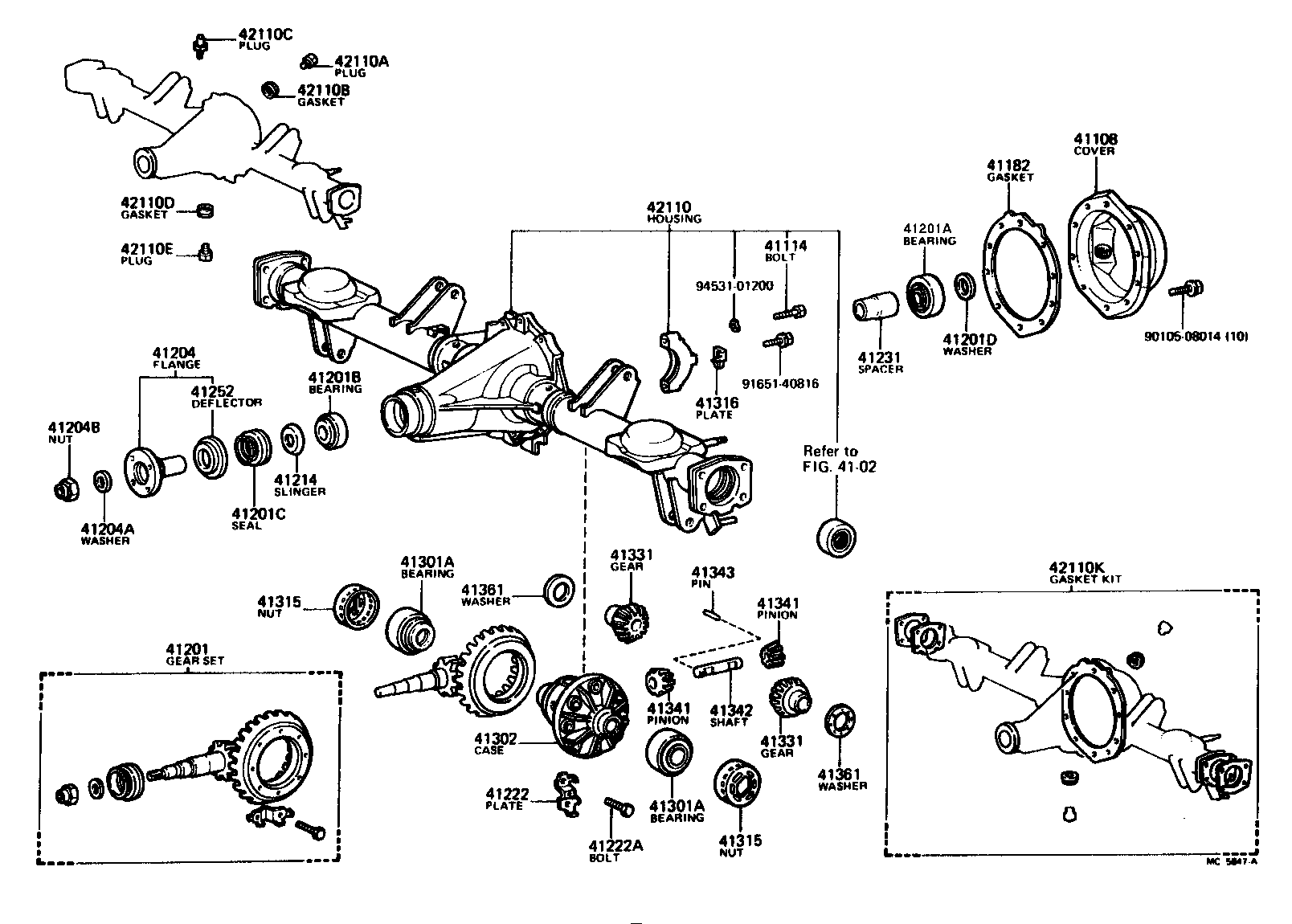

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41108 - COVER SUB-ASSY, REAR DIFFERENTIAL CARRIER | ||||
| 41108-14010 |
RT13#..LB,SED |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90101-12371 |
RT13# |
4 | ||
| 41182 - GASKET, DIFFERENTIAL CARRIER COVER | ||||
| 41182-14010 |
RT13#..LB,SED |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-29286 |
RT134..MTM N=43:12 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90368-34049 |
RT13# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90368-30002 |
RT13# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38015 |
RT13# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35399 |
RT13# T=2.43,MARK 08,T=2.44-2.46 |
1 | ||
| 90201-35400 |
RT13# T=2.48,MARK 09,T=2.47-2.49 |
1 | ||
| 90201-35396 |
RT13# T=2.36,MARK 05,T=2.35-2.37 |
1 | ||
| 90201-35397 |
RT13# T=2.39,MARK 06,T=2.38-2.40 |
1 | ||
| 90201-35404 |
RT13# T=2.60,MARK 13,T=2.59-2.61 |
1 | ||
| 90201-35436 |
RT13# T=2.30,MARK 03,T=2.29-2.31 |
1 | ||
| 90201-35398 |
RT13# T=2.42,MARK 07,T=2.41-2.43 |
1 | ||
| 90201-35401 |
RT13# T=2.51,MARK 10,T=2.50-2.52 |
1 | ||
| 90201-35403 |
RT13# T=2.57,MARK 12,T=2.56-2.58 |
1 | ||
| 90201-35438 |
RT13# T=2.63,MARK 14,T=2.62-2.64 |
1 | ||
| 90201-35440 |
RT13# T=2.69,MARK 16,T=2.68-2.70 |
1 | ||
| 90201-35435 |
RT13# T=2.27,MARK 02,T=2.26-2.28 |
1 | ||
| 90201-35439 |
RT13# T=2.66,MARK 15,T=2.65-2.67 |
1 | ||
| 90201-35437 |
RT13# T=2.33,MARK 04,T=2.32-2.34 |
1 | ||
| 90201-35402 |
RT13# T=2.54,MARK 11,T=2.53-2.55 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-20020 |
RT13# |
1 | ||
| 41204A - WASHER, PLATE (FOR REAR DRIVE PINION) | ||||
| 90201-18485 |
RT13# |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18001 |
RT13# |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-20020 |
RT13# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-30030 |
RT13# |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
RT13# |
8 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-22010 |
RT13# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-22010 |
RT13# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
RT13# |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90368-41050 |
RT13# |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41311-22030 |
RT13# |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-14010 |
RT13#..LB,SED |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-14010 |
RT13#..LB,SED |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-14011 |
RT13#..LB,SED |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22020 |
RT13# N=15 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-22020 |
RT13# N=15 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22020 |
RT13# N=10 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-22020 |
RT13# N=10 |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22010 |
RT13# |
1 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 90250-04193 |
RT13# |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
RT13# T=1.00,MARK 02,T=0.98-1.02 |
2 | ||
| 41361-22140 |
RT13# T=0.95,MARK 14,T=0.93-0.97 |
2 | ||
| 41361-22040 |
RT13# T=1.20,MARK 04,T=1.18-1.22 |
2 | ||
| 41361-22160 |
RT13# T=1.15,MARK 16,T=1.13-1.17 |
2 | ||
| 41361-22150 |
RT13# T=1.05,MARK 15,T=1.03-1.07 |
2 | ||
| 41361-22030 |
RT13# T=1.10,MARK 03,T=1.08-1.12 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22020 |
RT13# T=1.00,MARK 02,T=0.98-1.02 |
2 | ||
| 41361-22140 |
RT13# T=0.95,MARK 14,T=0.93-0.97 |
2 | ||
| 41361-22040 |
RT13# T=1.20,MARK 04,T=1.18-1.22 |
2 | ||
| 41361-22160 |
RT13# T=1.15,MARK 16,T=1.13-1.17 |
2 | ||
| 41361-22150 |
RT13# T=1.05,MARK 15,T=1.03-1.07 |
2 | ||
| 41361-22030 |
RT13# T=1.10,MARK 03,T=1.08-1.12 |
2 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-14280 |
RT134..LB,SED |
1 | ||
| 42110-14281 |
RT134..LB,SED |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18049 |
RT13# |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
RT13# |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
RT13# |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
RT13# |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
RT13# |
1 | ||
| 42110K - GASKET KIT, DIFFERENTIAL CARRIER | ||||
| 04412-14010 |
RT13#..LB,SED |
1 | ||
| Common parts | ||||
| 90105-08014 | ||||
| 91651-40816 | ||||
| 94531-01200 | ||||
| Linked diagrams | ||||
| 4102 | ||||
