RT134L-TEMDSA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )SED,WG

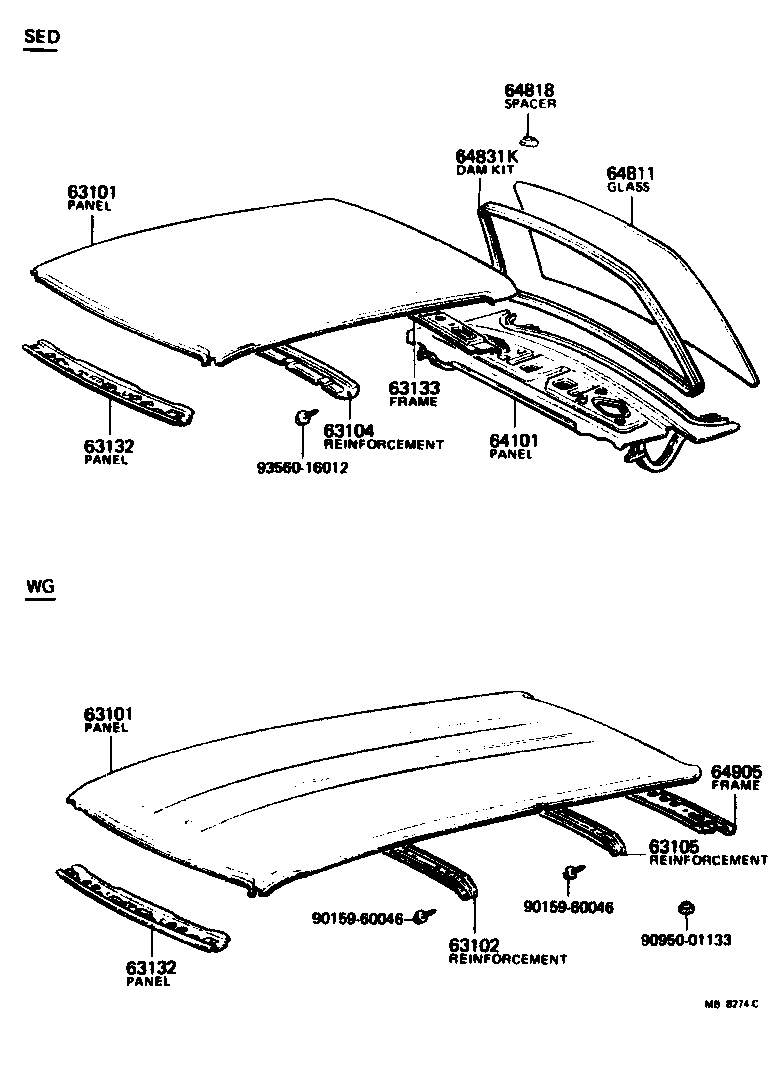

Click highlighted areas on diagram

diagram 63101 63101 63102 63104 63105 63132 63132 63133 64101 64811 64818 64831K 64905 9015960046 9015960046 9095001133 9356016012
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-20090

RT13#..SED

 1
63101 - PANEL SUB-ASSY, ROOF
63111-20090

RT13#..SED

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-20010

RT13#..SED

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-20010

RT13#..SED,WG

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-20010

RT13#..SED,WG

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-20070

RT13#..SED

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-20120

RT13#..SED

 1
64811 - GLASS, BACK WINDOW
64811-20350

RT13#..SED

*EHTT,T=4.0

 1
64811-20320

RT13#..SED..USA

*TT,T=4.0

 1
64818 - SPACER, BACK WINDOW GLASS
64818-20010

RT13#..SED

 2
64831K - DAM KIT, BACK WINDOW GLASS
04562-14010

RT13#..SED

 1
Common parts
90159-60046
90950-01133
93560-16012
