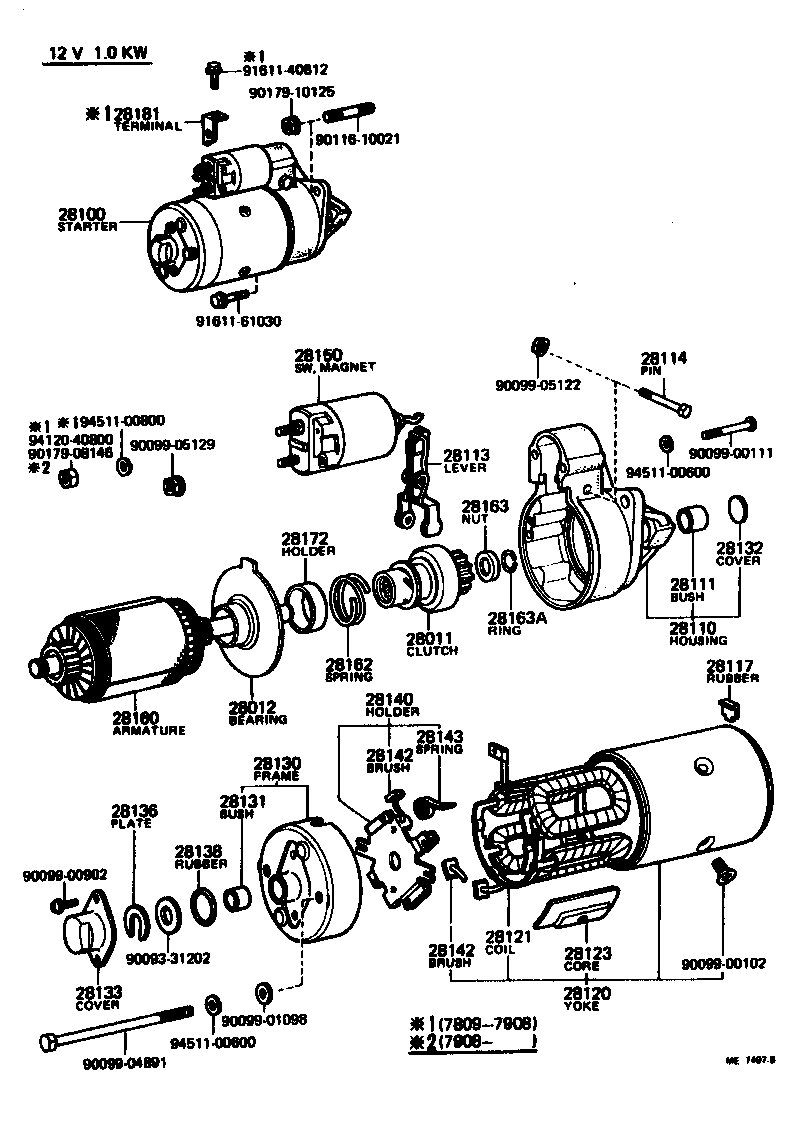

RT134L-TEKDSA (1978)
Toyota Corona
(7809-8008)20R..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
20R..RT134 12V 1.4KW |
1 | ||
| 28011-41020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28012 - BEARING SUB-ASSY, CENTER | ||||
| 28126-33021 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-33020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28100-34070 |
20R..RT134..USA 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-34052 |
20R..RT134 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-34031 |
20R..RT134 12V 1.4KW |
1 | ||
| 28110-40061 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28111 - BUSH(FOR STARTER HOUSING) | ||||
| 28111-51011 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-41011 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28114 - PIN, STARTER DRIVE LEVER SET | ||||
| 28114-41011 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28117 - RUBBER(FOR STARTER YOKE) | ||||
| 28117-41020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-33022 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28120-34070 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28120-34040 |
20R,22R..RT13# 12V 1.4KW |
1 | ||
| 28121 - COIL, STARTER FIELD | ||||
| 28121-41020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28121-42020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28121-34070 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28123 - CORE, STARTER POLE | ||||
| 28123-41020 |
20R..RT134..USA 12V 1.0KW |
4 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-41020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28131 - BUSH, COMMUTATOR END FRAME | ||||
| 28131-20010 |
20R..RT134..USA 12V 1.0KW,STD |
1 | ||
| 90099-10040 |
20R..RT134..USA 12V 1.0KW U/S 0.5 |
1 | ||
| 90099-10039 |
20R..RT134..USA 12V 1.0KW,U/S 0.3 |
1 | ||
| 28132 - COVER, STARTER BEARING(FOR DRIVE HOUSING) | ||||
| 28166-41011 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28133 - COVER, BEARING(FOR END FRAME) | ||||
| 28132-40010 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28136 - PLATE, STARTER LOCK | ||||
| 28136-40010 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28138 - RUBBER(FOR STARTER BEARING COVER) | ||||
| 28138-40010 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-25020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28140-34030 |
20R,22R..RT13# 12V 1.4KW |
1 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-25021 |
20R..RT134..USA 12V 1.0KW,HOLDER |
2 | ||
| 28142-25020 |
20R..RT134..USA 12V 1.0KW,YOKE |
2 | ||
| 28142 - BRUSH, STARTER | ||||
| 28142-25021 |
20R..RT134..USA 12V 1.0KW,HOLDER |
2 | ||
| 28142-25020 |
20R..RT134..USA 12V 1.0KW,YOKE |
2 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
20R..RT134..USA 12V 1.0KW |
4 | ||
| 90099-17112 |
20R..RT134 12V 1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-33020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28150-33021 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28150-34070 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28150-34052 |
20R,22R..RT13# 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-41020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28160-26050 |
20R,22R..RT13# 12V 1.4KW |
1 | ||
| 28162 - SPRING, STARTER BRAKE | ||||
| 28162-41022 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28163 - NUT OR COLLAR, PINION STOP, STARTER | ||||
| 28163-40011 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28163A - RING, SNAP(FOR STARTER PINION STOP NUT) | ||||
| 90099-07047 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28172 - HOLDER, STARTER SPRING | ||||
| 28172-41021 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28181 - TERMINAL, STARTER | ||||
| 28181-20010 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| Common parts | ||||
| 90093-31202 | ||||
| 90099-00102 | ||||
| 90099-00111 | ||||
| 90099-00902 | ||||
| 90099-01098 | ||||
| 90099-04891 | ||||
| 90099-05122 | ||||
| 90099-05129 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-40812 | ||||
| 91611-61030 | ||||
| 94120-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
(7809- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
20R..RT134 12V 1.4KW |
1 | ||
| 28011-41020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-33020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28100-34070 |
20R..RT134..USA 12V 1.0KW,12V 1.0KW |
1 | ||
| 28100-34052 |
20R..RT134 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-34031 |
20R..RT134 12V 1.4KW |
1 | ||
| 28110-40061 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-33022 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28120-34070 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28120-34040 |
20R,22R..RT13# 12V 1.4KW |
1 | ||
| 28137 - WASHER, FELT, STARTER | ||||
| 90099-02202 |
20R,22R..RT13# 12V 1.4KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-25020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28140-34030 |
20R,22R..RT13# 12V 1.4KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-40010 |
20R..RT134..USA 12V 1.0KW |
4 | ||
| 90099-17112 |
20R..RT134 12V 1.4KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-33020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28150-33021 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28150-34070 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28150-34052 |
20R,22R..RT13# 12V 1.4KW |
1 | ||
| 28150A - PACKING(FOR STARTER MAGNET SWITCH) | ||||
| 90099-06031 |
20R,22R..RT13# 12V 1.4KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-41020 |
20R..RT134..USA 12V 1.0KW |
1 | ||
| 28160-26050 |
20R,22R..RT13# 12V 1.4KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
20R..RT134 12V 1.4KW,NO.1 |
1 | ||
| 90099-10107 |
20R,22R..RT13# 12V 1.4KW,NO.2 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
20R..RT134 12V 1.4KW,NO.1 |
1 | ||
| 90099-10107 |
20R,22R..RT13# 12V 1.4KW,NO.2 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
20R..RT134 12V 1.4KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
20R..RT134 12V 1.4KW |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
20R..RT134 12V 1.4KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-45020 |
20R,22R..RT13# 12V 1.4KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
20R..RT134 12V 1.4KW |
1 | ||
| Common parts | ||||
| 90099-00901 | ||||
| 90099-00907 | ||||
| 90099-04887 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90116-10021 | ||||
| 90179-08146 | ||||
| 90179-10125 | ||||
| 91611-61030 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
