RT134L-TEHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )SED

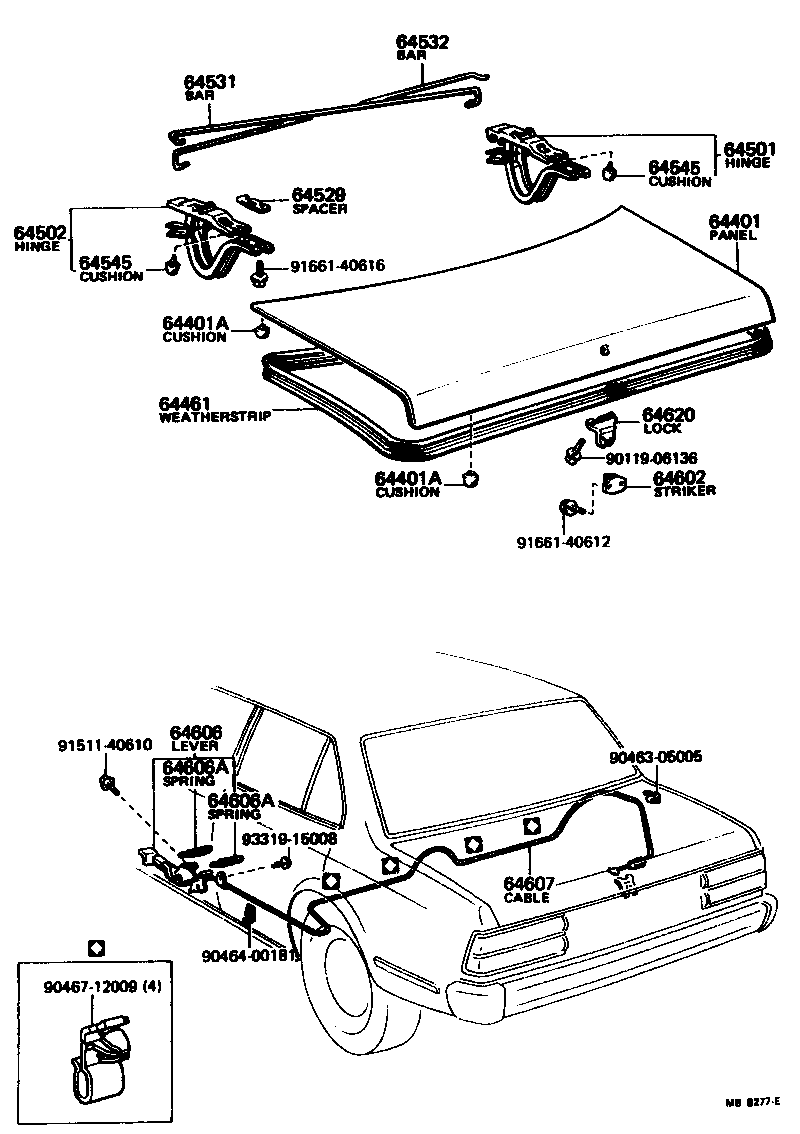

Click highlighted areas on diagram

diagram 64401 64401A 64401A 64461 64501 64502 64529 64531 64532 64545 64545 64602 64606 64606A 64606A 64607 64620 9011906136 9046305005 9046400181 9046712009 9151140610 9166140612 9166140616 9331915008
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-20370

RT13#..SED

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-07022

RT13#..SED

OD=15

 2
90541-08004

RT13#..SED

14X15.5

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-07022

RT13#..SED

OD=15

 2
90541-08004

RT13#..SED

14X15.5

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-20110

RT13#..SED

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-20050

RT13#..SED

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-20040

RT13#..SED

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-20010

RT13#..SED

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-20070

RT13#..SED

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-20070

RT13#..SED

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-09003

RT134..SED

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-09003

RT134..SED

 2
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-22030

RT13#..SED

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-20030

RT13#..SED..LE

 1
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

RT13#..SED..LE

 2
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

RT13#..SED..LE

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-20030

RT13#..SED..LE

L=4190

 1
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-20030

RT13#..SED..LE

 1
Common parts
90119-06136
90463-05005
90464-00181
90467-12009
91511-40610
91661-40612
91661-40616
93319-15008
