RT134L-TEHESA (1978)

Toyota Corona

Production Sep 1978 - Aug 1980
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7809- )

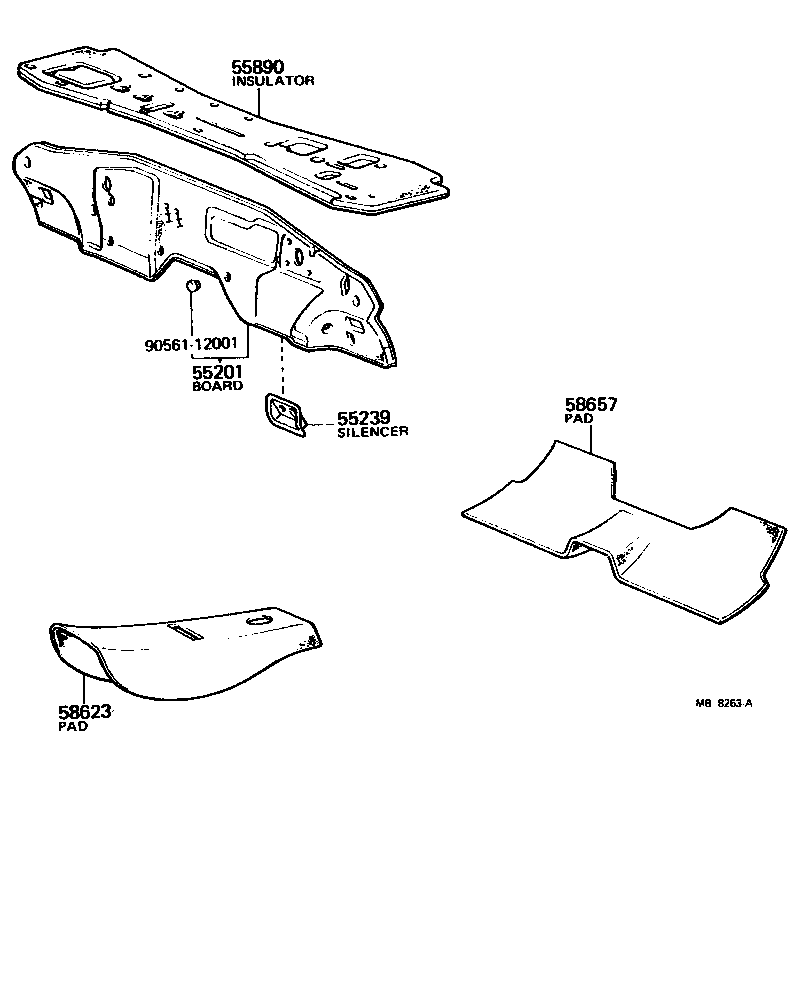

Click highlighted areas on diagram

diagram 55201 55239 55890 58623 58657 9056112001
Part # Description Qty Price
55201 - BOARD SUB-ASSY, DASH PANEL SILENCER
55210-20020

RT134

 1
55239 - SILENCER, STEERING COLUMN HOLE COVER
55257-20050

RT134

W/POWER STEERING

 1
55257-20050

RT134..ATM

W/POWER STEERING

 1
55890 - INSULATOR ASSY, COWL TOP
55780-20040

RT13#

 1
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58623-20050

RT13#..3FC,4FC

 1
58657 - PAD, UNDER REAR SEAT SILENCER
58657-20050

RT13#..LB,SED

 1
Common parts
90561-12001
