RT119L-NDFA (1976)
Toyota Corona
(7308-7808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29195 |
RT119..3HC |
1 | ||
| 83320-29125 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-20030 |
RT119..3HC |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84231-20010 |
RT119..3HC |
1 | ||
| 84380-20010 |
RT119..3HC |
1 | ||
| 84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE) | ||||
| 84231-20010 |
RT119..3HC |
1 | ||
| 84380-20010 |
RT119..3HC |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-20081 |
RT119..3HC |
2 | ||
| 84231-20010 |
RT119..3HC |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-20010 |
RT119..3HC |
2 | ||
| 84234-20020 |
RT119..3HC |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-20010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-20010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-23010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84237 - SWITCH ASSY, COURTESY LAMP (FOR STEERING UN-LOCK WARNIN | ||||
| 84231-20010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22060 |
RT119..3HC |
1 | ||
| 84750 - SWITCH ASSY, SEAT BELT WARNING | ||||
| 84750-20010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
2 | ||
| 84750-20020 |
RT119..3HC |
2 | ||
| 84750 - SWITCH ASSY, SEAT BELT WARNING | ||||
| 84750-20010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
2 | ||
| 84750-20020 |
RT119..3HC |
2 | ||
| Common parts | ||||
| 84236-20010 | ||||
| 90179-08123 | ||||
| 90201-08131 | ||||
| 90430-08252 | ||||
| 90560-08268 | ||||
| 90560-14425 | ||||
| 91651-40614 | ||||
| 93319-14010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94531-00800 | ||||
(7308-7701)

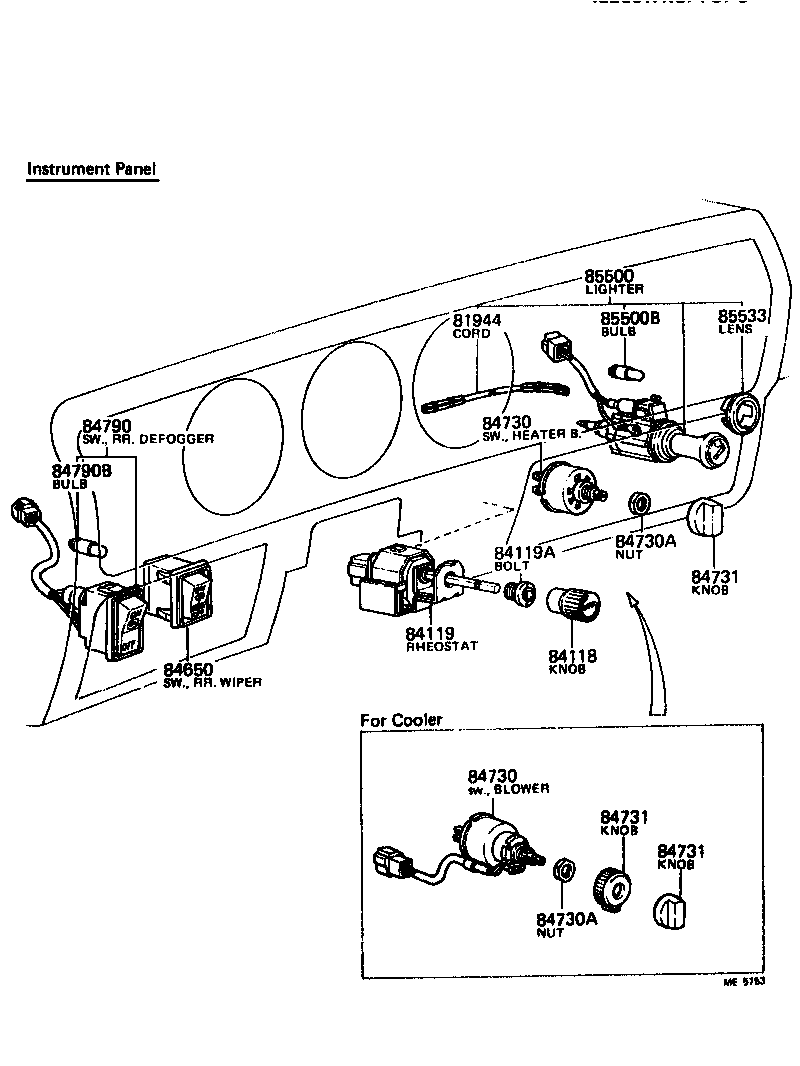

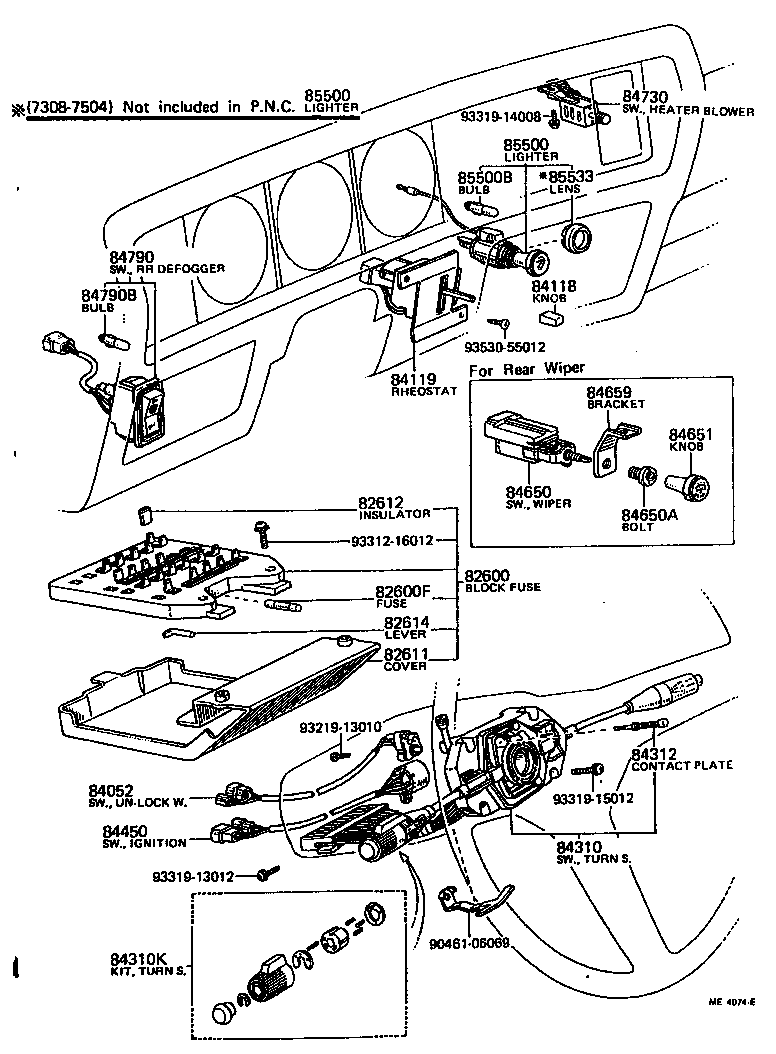

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07008 |
RT119..3HC 5A |
1 | ||
| 99118-62005 |
RT119..3HC 5A |
1 | ||
| 99118-62915 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 15A,15A |
6 | ||
| 99118-62910 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 10A |
3 | ||
| 99118-62920 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 20A,20A |
2 | ||
| 99118-62905 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 5A,5A |
3 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-20080 |
RT119..3HC |
1 | ||
| 82612 - INSULATOR, FUSE BLOCK TERMINAL | ||||
| 82612-22020 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
3 | ||
| 82614 - LEVER, FUSE | ||||
| 82614-30010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 55887-20020 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84118-14010 |
RT119..3HC |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-14010 |
RT119..3HC |
1 | ||
| 84119-20020 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-20230 |
RT119..3HC |
1 | ||
| 84310-20251 |
RT119..3HC |
1 | ||
| 84310-20250 |
RT119..3HC |
1 | ||
| 84310-20300 |
RT119..3HC |
1 | ||
| 84310-20270 |
RT119..3HC |
1 | ||
| 84310-20271 |
RT119..3HC |
1 | ||
| 84310K - SWITCH KIT, LIGHT CONTROL | ||||
| 04841-30131 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
RT119..3HC MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29045 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84652-19085 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-29035 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84653-21030 |
RT119..3HC REAR WIPER |
1 | ||
| 84652-29075 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-19075 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-29095 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20040 |
RT119..3HC W/COOLER |
1 | ||
| 84732-20020 |
RT10#,11# |
1 | ||
| 84732-20041 |
RT119..3HC W/COOLER |
1 | ||
| 84732-20021 |
RT119..3HC |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20030 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 12V 1.5W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20100 |
RT119..3HC |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
RT119..3HC 12V 3.4W,12V 3.4W |
1 | ||
| 90981-11011 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 12V 3W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| Common parts | ||||
| 90461-06069 | ||||
| 93219-13010 | ||||
| 93312-16012 | ||||
| 93319-13012 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93530-55012 | ||||
(7308-7701)

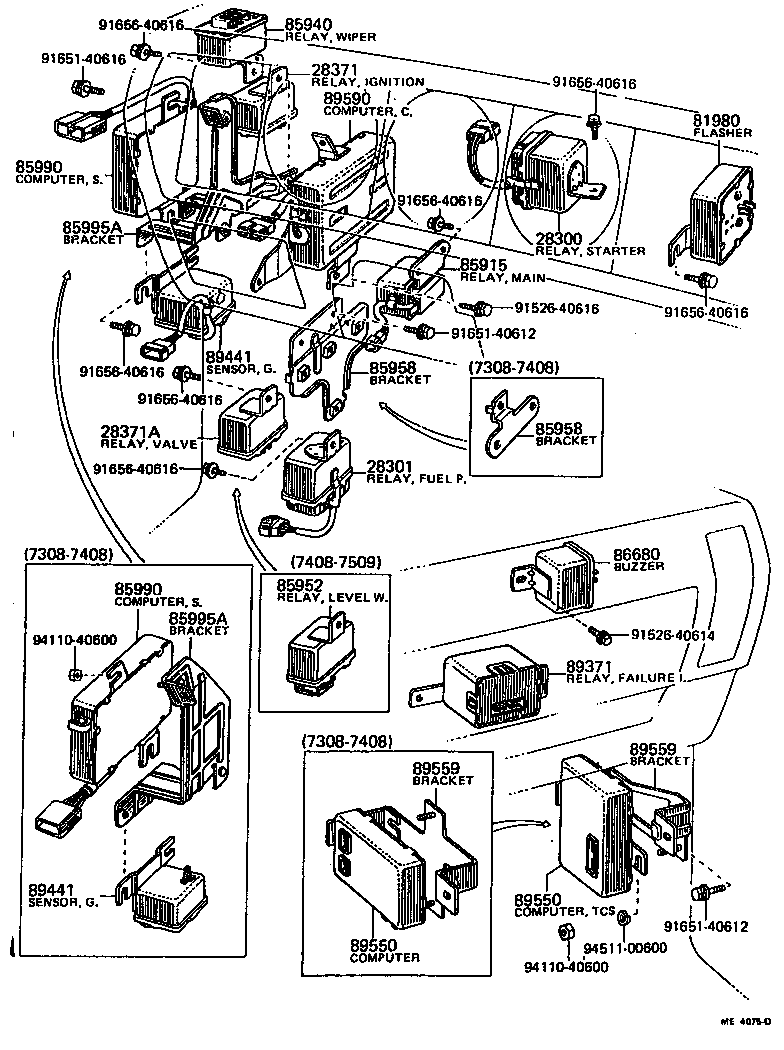

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28301 - RELAY ASSY, FUEL PUMP | ||||
| 28380-20010 |
20R..RT119..3HC |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-20110 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22050 |
RT119..3HC FOR INTERMITTENT WIPER |
1 | ||
| 85940-22051 |
RT119..3HC FOR INTERMITTENT WIPER |
1 | ||
| 85952 - RELAY, LEVEL WARNING | ||||
| 85952-30010 |
RT119..3HC L/ELECTRO SENSOR PANEL |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85991-12011 |
RT119..3HC |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85991-12011 |
RT119..3HC |
1 | ||
| 86680 - BUZZER ASSY, UN-LOCK WARNING OR SEAT BELT WARNING | ||||
| 86650-22021 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 89441 - SENSOR, DECELERATION | ||||
| 89441-20010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 89441 - SENSOR, DECELERATION | ||||
| 89441-20010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-20180 |
RT119..3HC CAL. & HIGH ALTITUDE SPEC. |
1 | ||
| 89550-14150 |
RT119..3HC CAL. & HIGH ALTITUDE SPEC. |
1 | ||
| 89550-14160 |
RT119..3HC |
1 | ||
| 89550-20170 |
RT119..3HC |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-20180 |
RT119..3HC CAL. & HIGH ALTITUDE SPEC. |
1 | ||
| 89550-14150 |
RT119..3HC CAL. & HIGH ALTITUDE SPEC. |
1 | ||
| 89550-14160 |
RT119..3HC |
1 | ||
| 89550-20170 |
RT119..3HC |
1 | ||
| 89559 - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89559-20080 |
RT119..3HC |
1 | ||
| 89559 - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89559-20080 |
RT119..3HC |
1 | ||
| Common parts | ||||
| 91526-40614 | ||||
| 91526-40616 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91656-40616 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
(7701-7808)

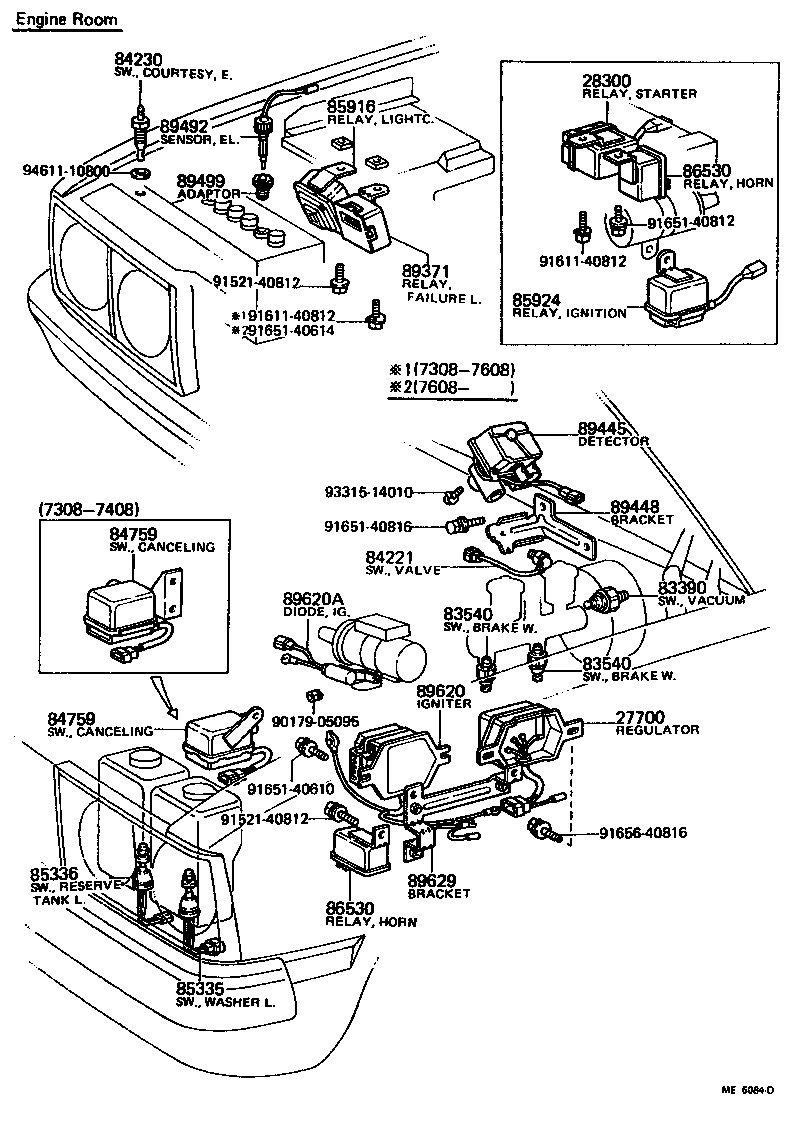

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-45021 |
20R..RT119..3HC FOR BUILT IN ALTERNATOR |
1 | ||
| 27700-38050 |
20R..RT119..3HC |
1 | ||
| 27700-45020 |
20R..RT119..3HC FOR BUILT IN ALTERNATOR |
1 | ||
| 27700-38060 |
20R..RT119..3HC |
1 | ||
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-38011 |
20R..RT119..3HC ARCTIC |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-14040 |
RT119..3HC CAL. & HIGH ALTITUDE SPEC. |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-20040 |
RT119..3HC CAL. & HIGH ALTITUDE SPEC. |
1 | ||
| 84230B - SWITCH ASSY, EARTH | ||||
| 84241-20010 |
RT119..3HC CANADA SPEC. |
2 | ||
| 84230B - SWITCH ASSY, EARTH | ||||
| 84241-20010 |
RT119..3HC CANADA SPEC. |
2 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 85430-20010 |
RT119..3HC |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-20022 |
RT119..3HC |
1 | ||
| 89620-20071 |
RT119..3HC ARCTIC |
1 | ||
| 89620-20100 |
RT119..3HC CANADA |
1 | ||
| 89620-14130 |
RT119..3HC USA(ARCTIC & HIGH ALTITUDE) |
1 | ||
| 89620-20072 |
RT119..3HC ARCTIC |
1 | ||
| 89620-14120 |
RT119..3HC |
1 | ||
| 89620-20021 |
RT119..3HC |
1 | ||
| 89620A - DIODE, IGNITION COIL | ||||
| 90919-14005 |
RT119..3HC CAL. & HIGH ALTITUDE SPEC. |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90170-10054 | ||||
| 90179-05095 | ||||
| 90206-10046 | ||||
| 90464-00154 | ||||
| 91611-40610 | ||||
| 91656-40816 | ||||
| Linked diagrams | ||||
| 4702 | ||||
(7701-7808)

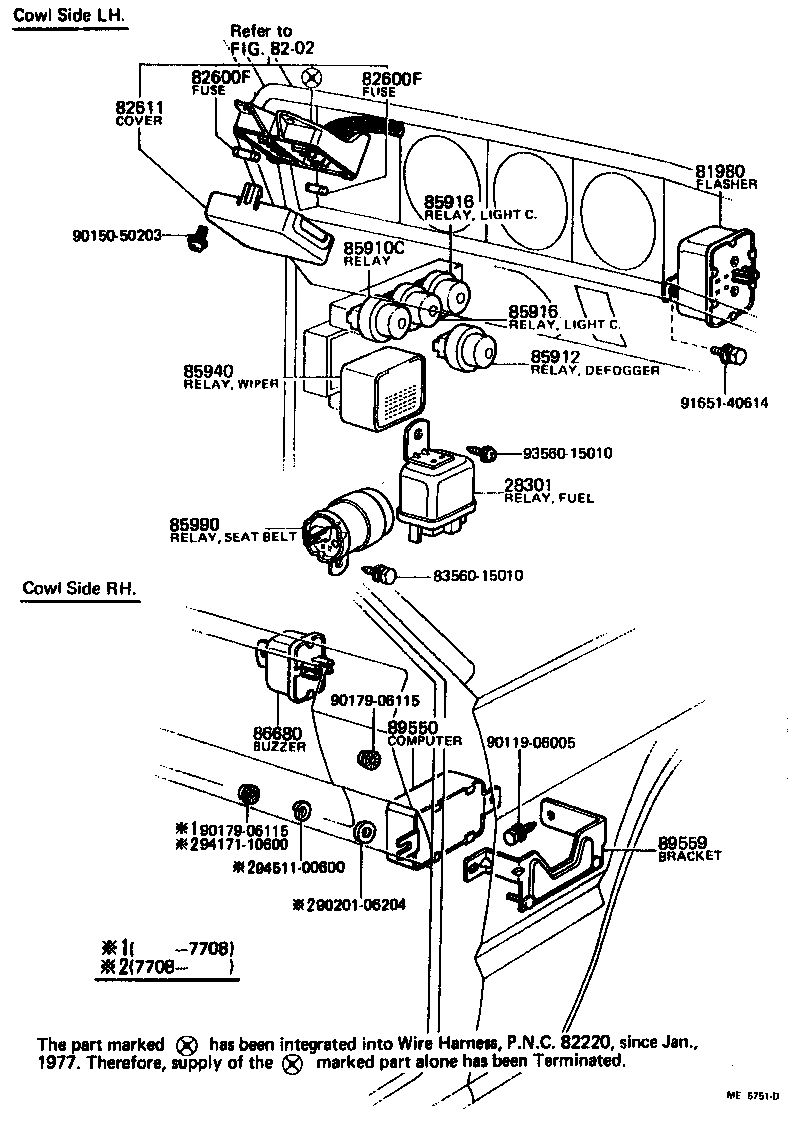

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28301 - RELAY ASSY, FUEL PUMP | ||||
| 28380-20010 |
20R..RT119..3HC |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-20110 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
RT119..3HC 5A |
1 | ||
| 99118-62915 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 15A,15A |
6 | ||
| 99118-62910 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 10A |
3 | ||
| 99118-62920 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 20A,20A |
2 | ||
| 90982-07008 |
RT119..3HC 5A |
1 | ||
| 99118-62905 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 5A,5A |
3 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 99118-62005 |
RT119..3HC 5A |
1 | ||
| 99118-62915 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 15A,15A |
6 | ||
| 99118-62910 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 10A |
3 | ||
| 99118-62920 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 20A,20A |
2 | ||
| 90982-07008 |
RT119..3HC 5A |
1 | ||
| 99118-62905 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 5A,5A |
3 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-20080 |
RT119..3HC |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02001 |
RT119..3HC |
1 | ||
| 90987-02002 |
RT119..3HC |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
RT119..3HC |
1 | ||
| 90987-02001 |
RT119..3HC |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20031 |
RT119..3HC |
1 | ||
| 90987-01001 |
RT119..3HC |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20031 |
RT119..3HC |
1 | ||
| 90987-01001 |
RT119..3HC |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22050 |
RT119..3HC FOR INTERMITTENT WIPER |
1 | ||
| 85940-22051 |
RT119..3HC FOR INTERMITTENT WIPER |
1 | ||
| 85990 - RELAY OR COMPUTER ASSY, SEAT BELT WARNING | ||||
| 85991-12011 |
RT119..3HC |
1 | ||
| 86680 - BUZZER ASSY, UN-LOCK WARNING OR SEAT BELT WARNING | ||||
| 86650-22021 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-20180 |
RT119..3HC CAL. & HIGH ALTITUDE SPEC. |
1 | ||
| 89550-14150 |
RT119..3HC CAL. & HIGH ALTITUDE SPEC. |
1 | ||
| 89550-14160 |
RT119..3HC |
1 | ||
| 89550-20170 |
RT119..3HC |
1 | ||
| 89559 - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89559-20080 |
RT119..3HC |
1 | ||
| Common parts | ||||
| 83560-15010 | ||||
| 90119-06005 | ||||
| 90150-50203 | ||||
| 90179-06115 | ||||
| 90201-06204 | ||||
| 91651-40614 | ||||
| 93560-15010 | ||||
| 94171-10600 | ||||
| 94511-00600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(7701-7808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29065 |
RT119..3HC MATSUSHITA |
1 | ||
| 84112-29085 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84112-19045 |
RT119..3HC MATSUSHITA |
1 | ||
| 84112-29055 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-29065 |
RT119..3HC MATSUSHITA |
1 | ||
| 84112-29085 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84112-19045 |
RT119..3HC MATSUSHITA |
1 | ||
| 84112-29055 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-20230 |
RT119..3HC |
1 | ||
| 84310-20251 |
RT119..3HC |
1 | ||
| 84310-20250 |
RT119..3HC |
1 | ||
| 84310-20300 |
RT119..3HC |
1 | ||
| 84310-20270 |
RT119..3HC |
1 | ||
| 84310-20271 |
RT119..3HC |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-20230 |
RT119..3HC |
1 | ||
| 84310-20251 |
RT119..3HC |
1 | ||
| 84310-20250 |
RT119..3HC |
1 | ||
| 84310-20300 |
RT119..3HC |
1 | ||
| 84310-20270 |
RT119..3HC |
1 | ||
| 84310-20271 |
RT119..3HC |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
RT119..3HC MATSUSHITA |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20020 |
RT119..3HC MATSUSHITA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29045 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84652-19085 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-29035 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84653-21030 |
RT119..3HC REAR WIPER |
1 | ||
| 84652-29075 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-19075 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-29095 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29045 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84652-19085 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-29035 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84653-21030 |
RT119..3HC REAR WIPER |
1 | ||
| 84652-29075 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-19075 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-29095 |
RT119..3HC TOKAIRIKA |
1 | ||
| Common parts | ||||
| 90461-06069 | ||||
| 90461-06097 | ||||
| 93219-13010 | ||||
| 93315-14012 | ||||
| 93319-13012 | ||||
| 93319-15012 | ||||
(7701-7808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81944 - CORD, OPTICAL FIBER | ||||
| 81944-20021 |
RT119..3HC |
1 | ||
| 81944-20020 |
RT119..3HC |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 55887-20020 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84118-14010 |
RT119..3HC |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-14010 |
RT119..3HC |
1 | ||
| 84119-20020 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90984-01013 |
RT119..3HC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-29045 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84652-19085 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-29035 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84653-21030 |
RT119..3HC REAR WIPER |
1 | ||
| 84652-29075 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-19075 |
RT119..3HC MATSUSHITA |
1 | ||
| 84652-29095 |
RT119..3HC TOKAIRIKA |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20040 |
RT119..3HC W/COOLER |
1 | ||
| 84732-20020 |
RT10#,11# |
1 | ||
| 84732-20041 |
RT119..3HC W/COOLER |
1 | ||
| 84732-20021 |
RT119..3HC |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-20040 |
RT119..3HC W/COOLER |
1 | ||
| 84732-20020 |
RT10#,11# |
1 | ||
| 84732-20041 |
RT119..3HC W/COOLER |
1 | ||
| 84732-20021 |
RT119..3HC |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
RT119..3HC |
1 | ||
| 84730A - NUT, HEATER BLOWER SWITCH | ||||
| 90170-11206 |
RT119..3HC |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12020 |
RT119..3HC W/COOLER(BLOWER SWITCH) |
1 | ||
| 84731-12032 |
RT119..3HC W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12021 |
RT119..3HC W/COOLER(BLOWER SWITCH) |
1 | ||
| 84731-12031 |
RT119..3HC W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12010 |
RT119..3HC |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12020 |
RT119..3HC W/COOLER(BLOWER SWITCH) |
1 | ||
| 84731-12032 |
RT119..3HC W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12021 |
RT119..3HC W/COOLER(BLOWER SWITCH) |
1 | ||
| 84731-12031 |
RT119..3HC W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12010 |
RT119..3HC |
1 | ||
| 84731 - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-12020 |
RT119..3HC W/COOLER(BLOWER SWITCH) |
1 | ||
| 84731-12032 |
RT119..3HC W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12021 |
RT119..3HC W/COOLER(BLOWER SWITCH) |
1 | ||
| 84731-12031 |
RT119..3HC W/COOLER(COOLER VOLUME) |
1 | ||
| 84731-12010 |
RT119..3HC |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-20030 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11009 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 12V 1.5W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-20100 |
RT119..3HC |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
RT119..3HC 12V 3.4W,12V 3.4W |
1 | ||
| 90981-11011 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD 12V 3W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
(7308-7701)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-45021 |
20R..RT119..3HC FOR BUILT IN ALTERNATOR |
1 | ||
| 27700-38050 |
20R..RT119..3HC |
1 | ||
| 27700-45020 |
20R..RT119..3HC FOR BUILT IN ALTERNATOR |
1 | ||
| 27700-38060 |
20R..RT119..3HC |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85919-20031 |
RT119..3HC |
1 | ||
| 90987-01001 |
RT119..3HC |
2 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-20022 |
RT119..3HC |
1 | ||
| 89620-20071 |
RT119..3HC ARCTIC |
1 | ||
| 89620-20100 |
RT119..3HC CANADA |
1 | ||
| 89620-14130 |
RT119..3HC USA(ARCTIC & HIGH ALTITUDE) |
1 | ||
| 89620-20072 |
RT119..3HC ARCTIC |
1 | ||
| 89620-14120 |
RT119..3HC |
1 | ||
| 89620-20021 |
RT119..3HC |
1 | ||
| 89620A - DIODE, IGNITION COIL | ||||
| 90919-14005 |
RT119..3HC CAL. & HIGH ALTITUDE SPEC. |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 91521-40812 | ||||
| 91611-40812 | ||||
| 91651-40610 | ||||
| 91651-40614 | ||||
| 91651-40812 | ||||
| 91651-40816 | ||||
| 91656-40816 | ||||
| 93315-14010 | ||||
| 94611-10800 | ||||

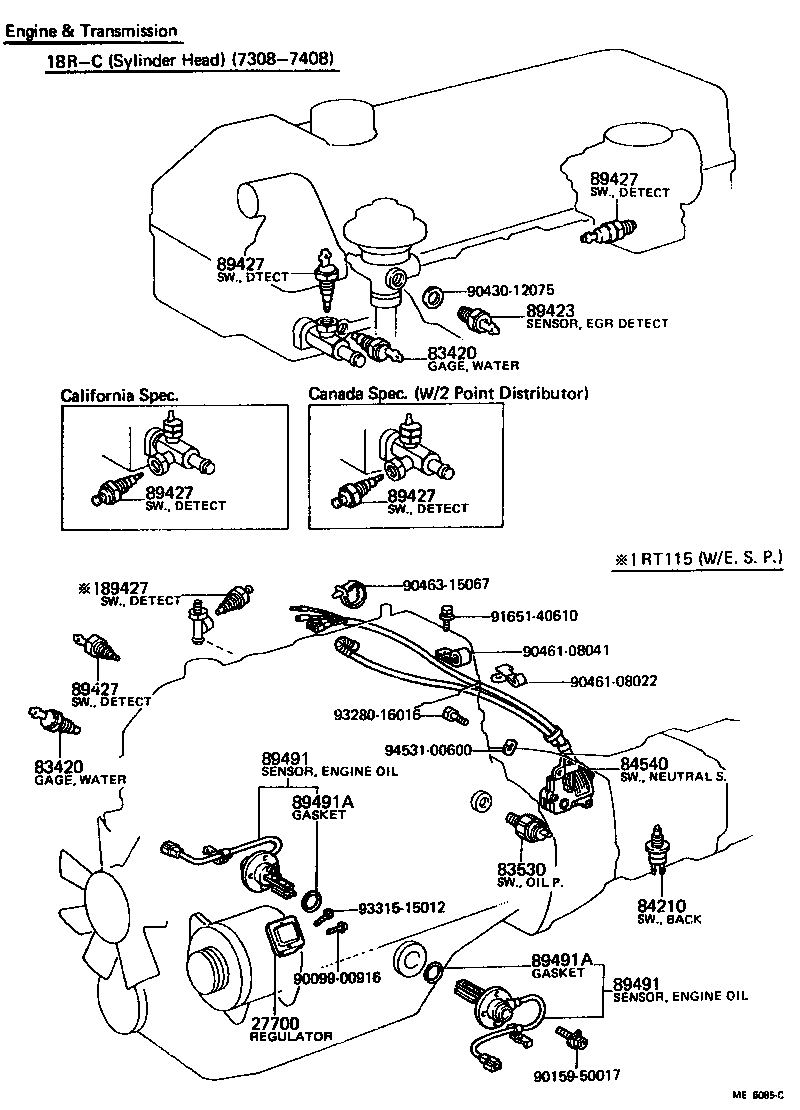

(7308-7808)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-45021 |
20R..RT119..3HC FOR BUILT IN ALTERNATOR |
1 | ||
| 27700-38050 |
20R..RT119..3HC |
1 | ||
| 27700-45020 |
20R..RT119..3HC FOR BUILT IN ALTERNATOR |
1 | ||
| 27700-38060 |
20R..RT119..3HC |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20011 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-14010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-22140 |
RT119..3HC |
1 | ||
| Common parts | ||||
| 90099-00916 | ||||
| 90159-50017 | ||||
| 90430-12075 | ||||
| 90461-08022 | ||||
| 90461-08041 | ||||
| 90463-15067 | ||||
| 91651-40610 | ||||
| 93280-16016 | ||||
| 93315-15012 | ||||
| 94531-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
