RT119L-NDFA (1976)

Toyota Corona

Production May 1976 - Aug 1978
Engine 20R
Transmission 3HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)

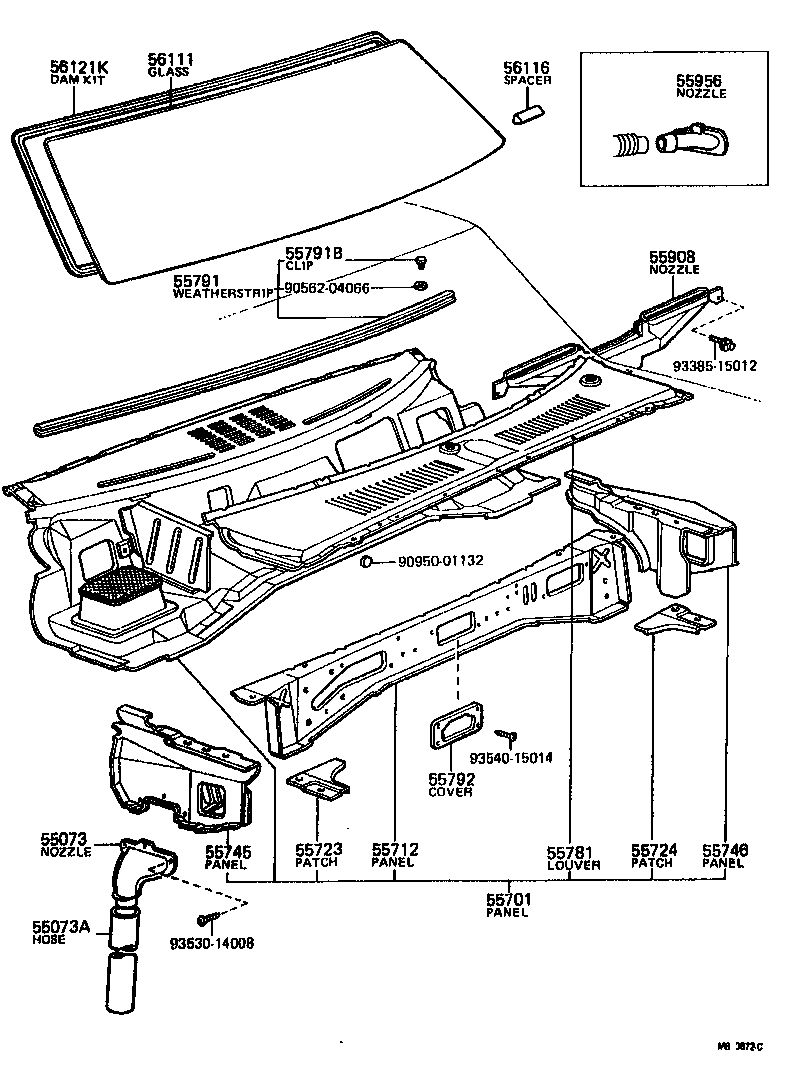

Click highlighted areas on diagram

diagram 55073 55073A 55701 55712 55723 55724 55745 55746 55781 55791 55791B 55792 55908 55956 56111 56116 56121K 9056204066 9095001132 9338515012 9353014008 9354015014
Part # Description Qty Price
55701 - PANEL SUB-ASSY, COWL
55700-20081

RT119..3HC

 1
55712 - PANEL, COWL TOP OUTSIDE, FRONT
55712-20906

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
55712-20908

RT119..3HC

 1
55723 - PATCH, COWL TOP OUTER CORNER, RH
55723-20020

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
55724 - PATCH, COWL TOP OUTER CORNER, LH
55724-20020

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
55745 - PANEL, COWL TOP OUTSIDE, RH
55706-20050

RT119..3HC

 1
55746 - PANEL, COWL TOP OUTSIDE, LH
55705-20030

RT119..3HC

 1
55781 - LOUVER, COWL VENTILATOR
55711-20080

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
55791 - WEATHERSTRIP, HOOD TO COWL TOP
53383-20030

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
55791B - CLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)
90467-07050

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 8
90467-08008

RT119..3HC

 8
55792 - COVER, WIPER MOTOR SERVICE HOLE
55071-20010

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 3
55908 - NOZZLE SUB-ASSY, DEFROSTER, RH
55950-20010

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
55956 - NOZZLE, SIDE DEFROSTER
55961-20030

RT119..3HC

FOR RH.

 1
55962-20030

RT119..3HC

FOR LH.

 1
56111 - GLASS, WINDSHIELD
56111-20190

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

TN.LM.T=5.7

 1
56111-20240

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

LM.T=5.0

 1
56111-20230

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

TN.LM.T=5.0

 1
56111-20230

RT119..3HC

TN.LM.T=5.0

 1
56116 - SPACER, WINDSHIELD GLASS
56116-20040

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 2
56116-20030

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 2
56121K - DAM KIT, WINDSHIELD GLASS
04562-30020

RT119..3HC

 1
04562-30010

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
Common parts
90562-04066
90950-01132
93385-15012
93530-14008
93540-15014
