RT119L-NDFA (1976)
Toyota Corona
Production
May 1976
-
Aug 1978
Engine
20R
Transmission
3HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7808)

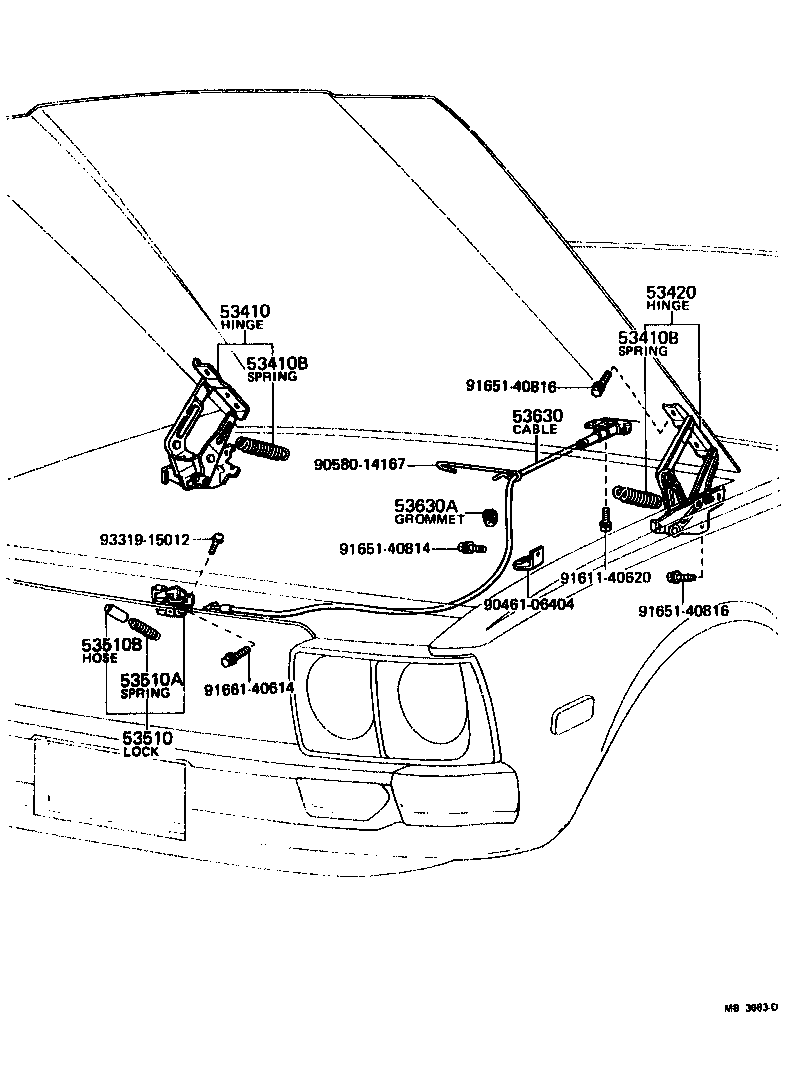

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-20040 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-20040 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-22041 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 53510-20080 |
RT119..3HC |
1 | ||
| 53510-20081 |
RT119..3HC |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-16013 |
RT119..3HC ID=12 |
1 | ||
| 90506-10487 |
RT119..3HC ID=8 |
1 | ||
| 90506-10196 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-20101 |
RT119..3HC |
1 | ||
| 53630-20100 |
RT119..3HC |
1 | ||
| 53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90480-15194 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 90480-15001 |
RT119..3HC |
1 | ||
| Common parts | ||||
| 90461-06404 | ||||
| 90580-14167 | ||||
| 91611-40620 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91661-40614 | ||||
| 93319-15012 | ||||
