RT114L-KDA (1973)
Toyota Corona
Production
Aug 1973
-
Aug 1974
Engine
18RC
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7701)

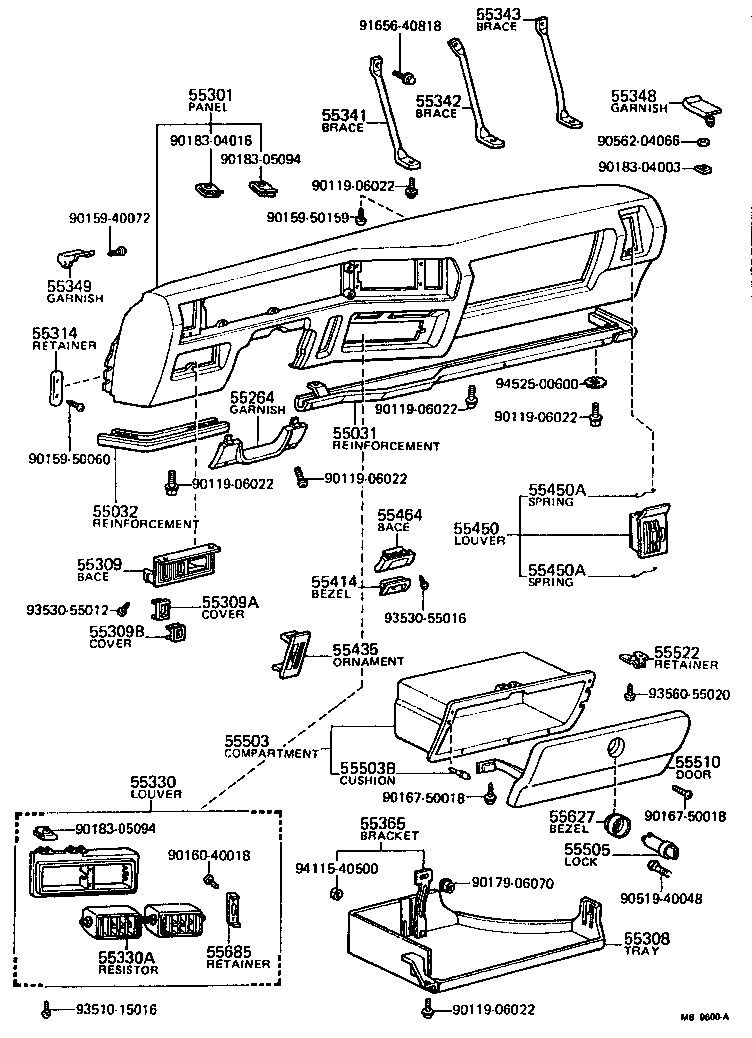

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06022 | ||||
| 90159-40072 | ||||
| 90159-50060 | ||||
| 90159-50159 | ||||
| 90160-40018 | ||||
| 90167-50018 | ||||
| 90179-06070 | ||||
| 90183-04003 | ||||
| 90183-04016 | ||||
| 90183-05094 | ||||
| 90519-40048 | ||||
| 90562-04066 | ||||
| 91656-40818 | ||||
| 93510-15016 | ||||
| 93530-55012 | ||||
| 93530-55016 | ||||
| 93560-55020 | ||||
| 94115-40500 | ||||
| 94525-00600 | ||||
(7308-7701)

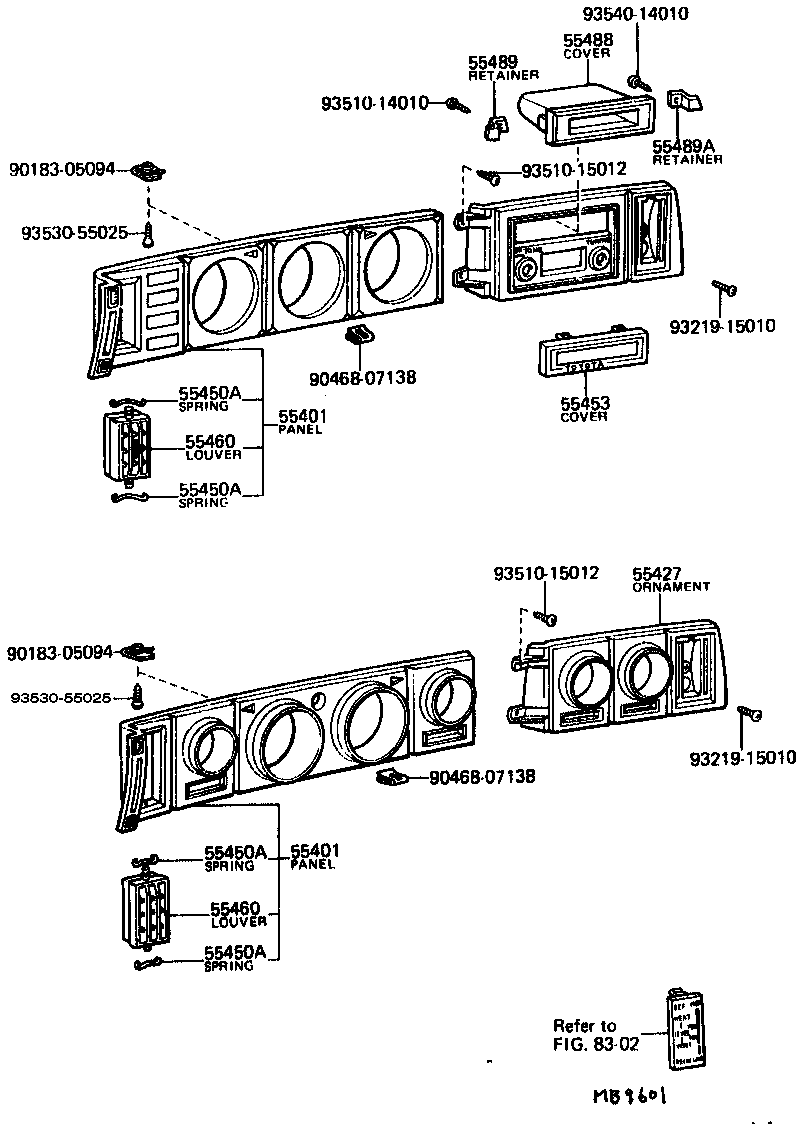

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90183-05094 | ||||
| 90468-07138 | ||||
| 93219-15010 | ||||
| 93510-14010 | ||||
| 93510-15012 | ||||
| 93530-55025 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 8302 | ||||
