RT114L-HDA (1973)

Toyota Corona

Production Aug 1973 - Aug 1974
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

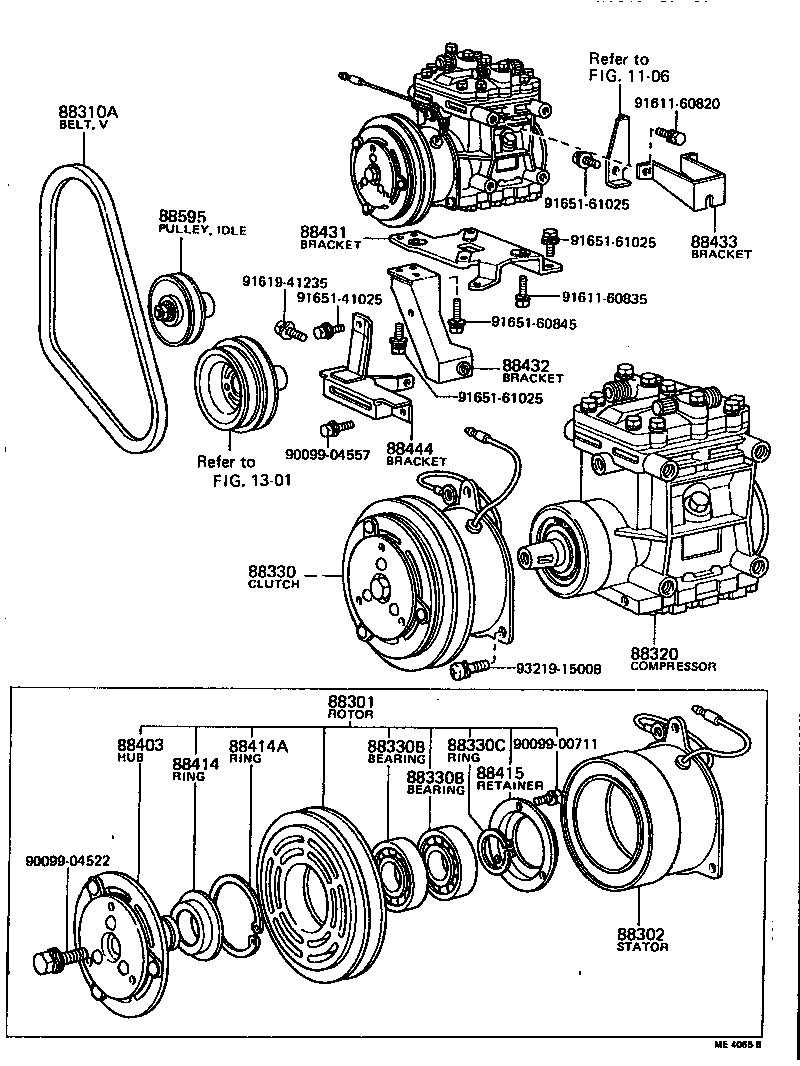

(7308-7808)

Click highlighted areas on diagram

diagram 1106 1301 88301 88302 88310A 88320 88330 88330B 88330B 88330C 88403 88414 88414A 88415 88431 88432 88433 88444 88595 9009900711 9009904522 9009904557 9161160820 9161160835 9161941235 9165141025 9165160845 9165161025 9165161025 9165161025 9321915008
Part # Description Qty Price
Common parts
90099-00711
90099-04522
90099-04557
91611-60820
91611-60835
91619-41235
91651-41025
91651-60845
91651-61025
93219-15008
Linked diagrams
1106
1301

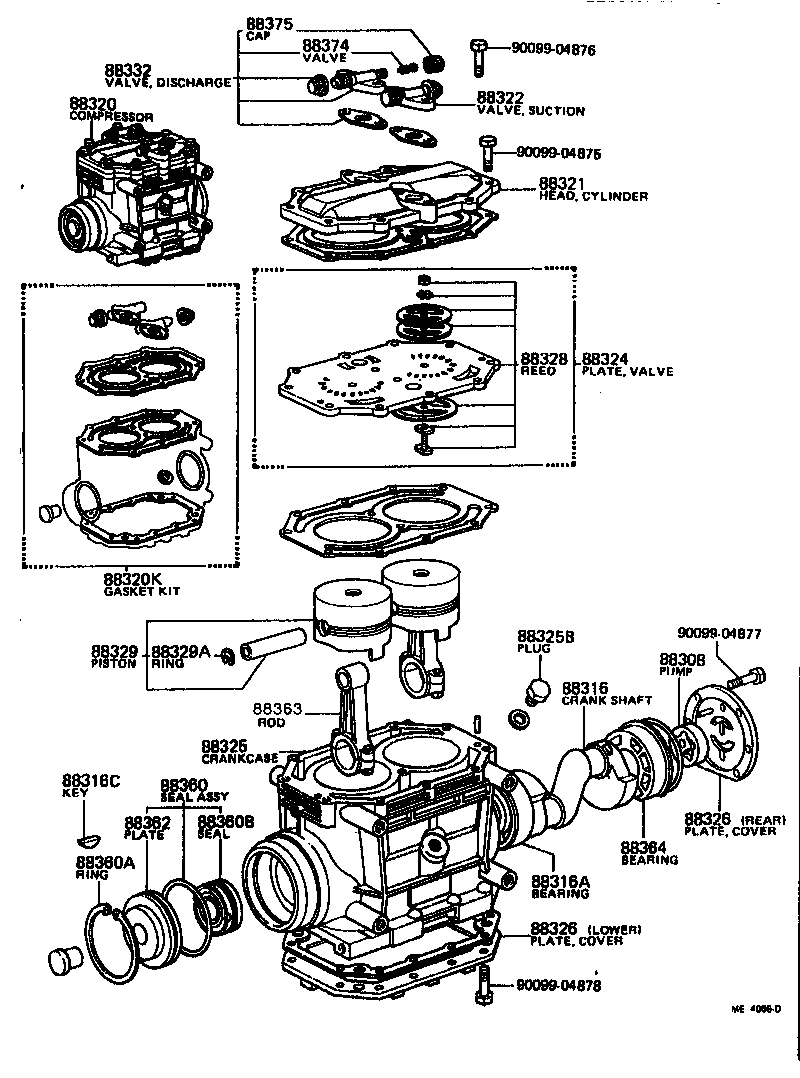

(7308-7408)

Click highlighted areas on diagram

diagram 88308 88316 88316A 88316C 88320 88320K 88321 88322 88324 88325 88325B 88326 88326 88328 88329 88329A 88332 88360 88360A 88360B 88362 88363 88364 88374 88375 9009904875 9009904876 9009904877 9009904878
Part # Description Qty Price
Common parts
90099-04875
90099-04876
90099-04877
90099-04878
