RT114L-HDA (1973)

Toyota Corona

Production Aug 1973 - Aug 1974
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)RT114,115

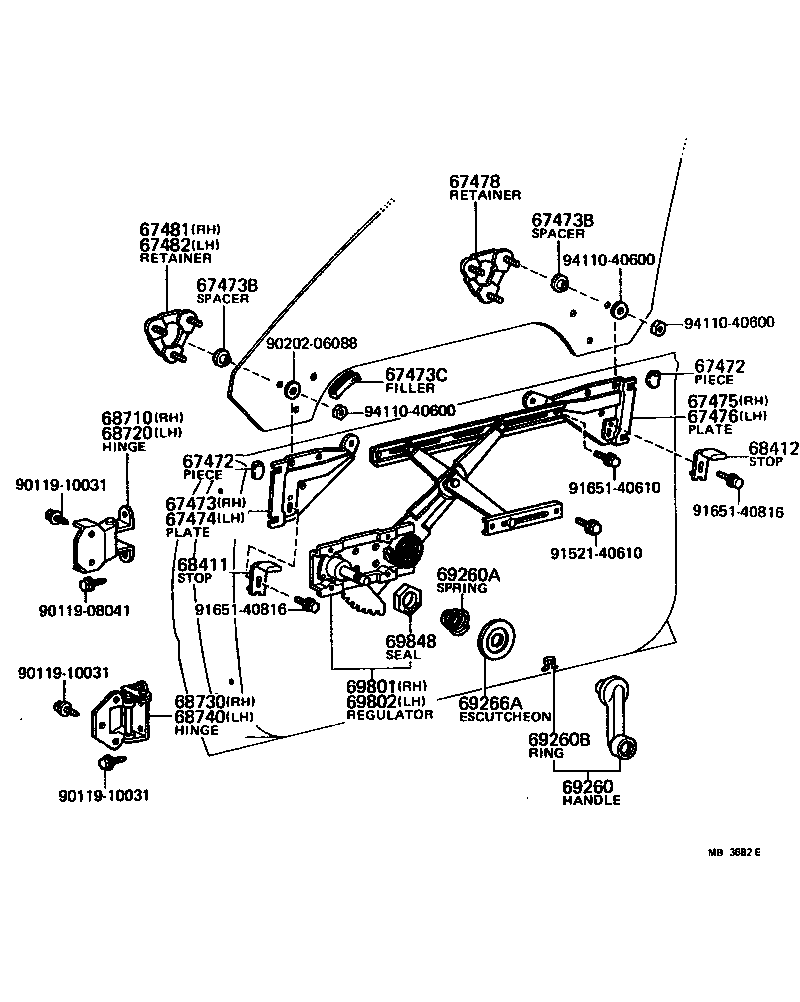

Click highlighted areas on diagram

diagram 67472 67472 67473 67473B 67473B 67473C 67474 67475 67476 67478 67481 67482 68411 68412 68710 68720 68730 68740 69260 69260A 69260B 69266A 69801 69802 69848 9011908041 9011910031 9011910031 9011910031 9020206088 9152140610 9165140610 9165140816 9165140816 9411040600 9411040600 9411040600
Part # Description Qty Price
Common parts
90119-08041
90119-10031
90202-06088
91521-40610
91651-40610
91651-40816
94110-40600
