RT114L-HDA (1973)

Toyota Corona

Production Aug 1973 - Aug 1974
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)

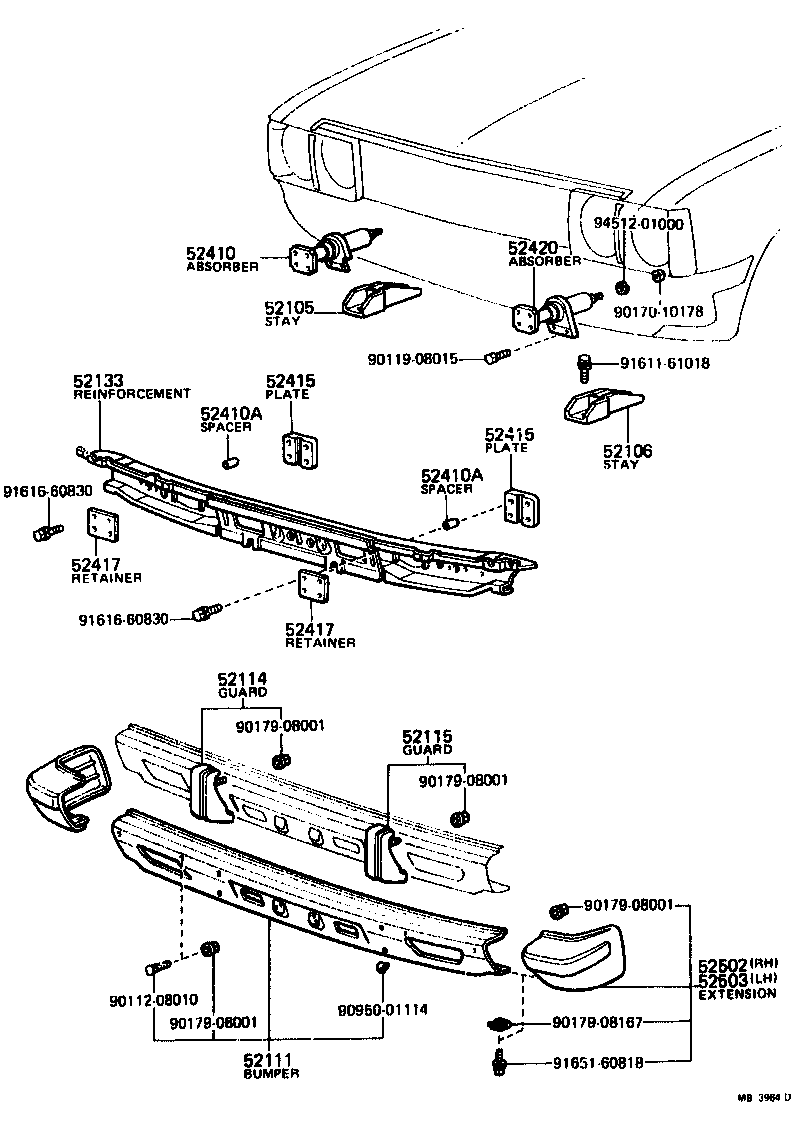

Click highlighted areas on diagram

diagram 52105 52106 52111 52114 52115 52133 52410 52410A 52410A 52415 52415 52417 52417 52420 52502 52503 9011208010 9011908015 9017010178 9017908001 9017908001 9017908001 9017908001 9017908167 9095001114 9161161018 9161660830 9161660830 9165160818 9451201000
Part # Description Qty Price
Common parts
90112-08010
90119-08015
90170-10178
90179-08001
90179-08167
90950-01114
91611-61018
91616-60830
91651-60818
94512-01000
