RT114L-HDA (1973)

Toyota Corona

Production Aug 1973 - Aug 1974
Engine 18RC
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7408)

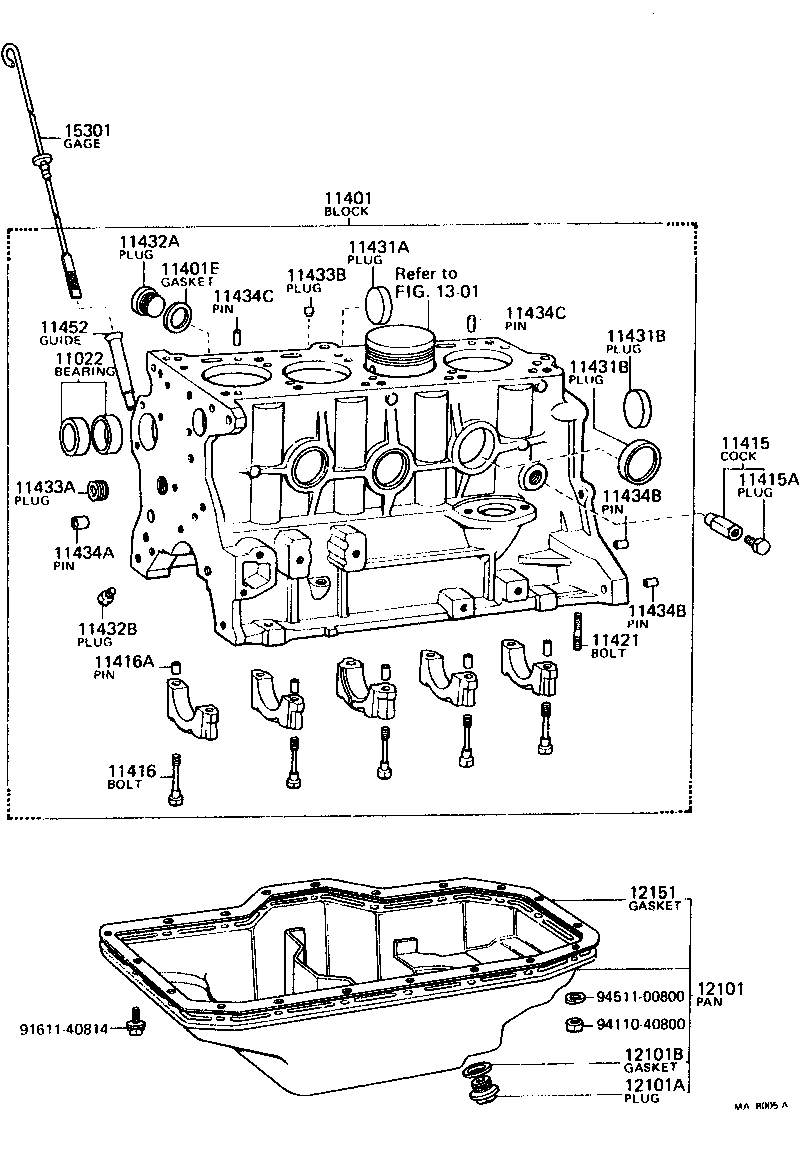

Click highlighted areas on diagram

diagram 11022 11401 11401E 11415 11415A 11416 11416A 11421 11431A 11431B 11431B 11432A 11432B 11433A 11433B 11434A 11434B 11434B 11434C 11434C 11452 12101 12101A 12101B 12151 1301 15301 9161140814 9411040800 9451100800
Part # Description Qty Price
12101A - PLUG(FOR OIL PAN DRAIN)
90341-25054

20R,18RC..RT10#,11#

OD=25,P=1.5

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-25013

20R,18RC..RT10#,11#

 1
Common parts
91611-40814
94110-40800
94511-00800
Linked diagrams
1301
