RT105L-MDFA (1974)

Toyota Corona

Production Aug 1974 - Aug 1978
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

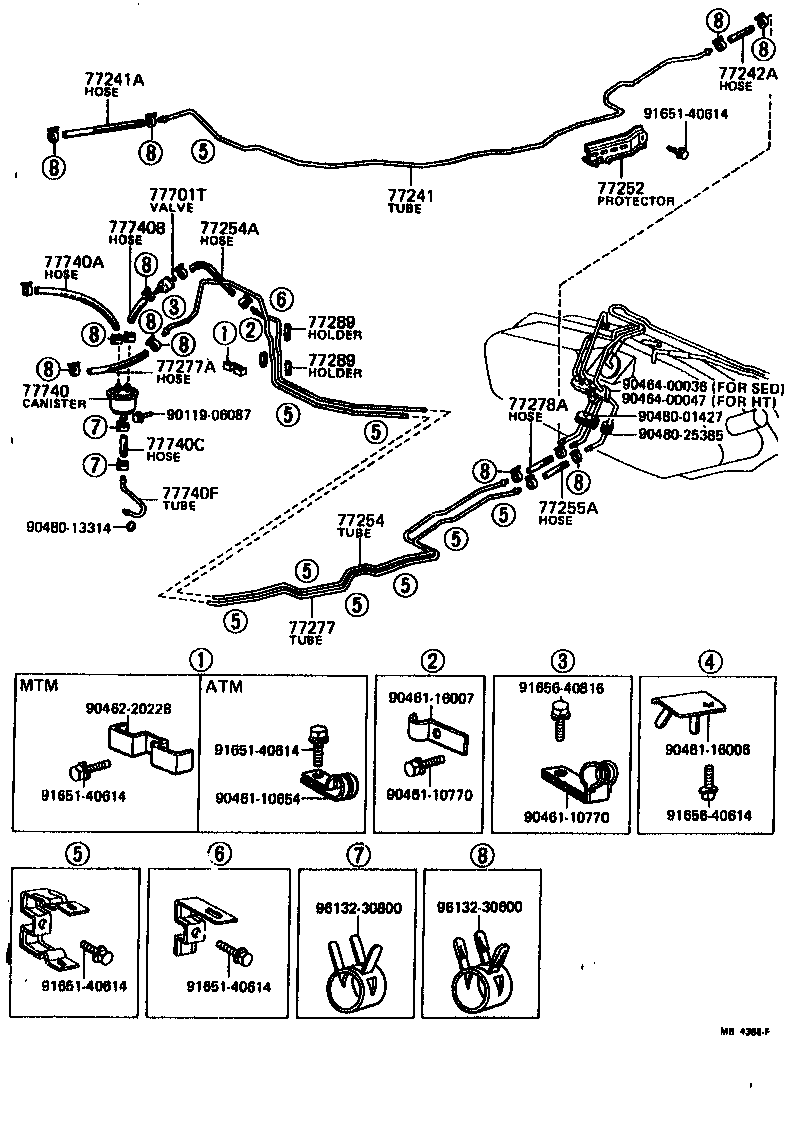

(7408-7509)RT105,115

Click highlighted areas on diagram

diagram 77241 77241A 77242A 77252 77254 77254A 77255A 77277 77277A 77278A 77289 77289 77701T 77740 77740A 77740B 77740C 77740F 9011906087 9046110654 9046110770 9046110770 9046116006 9046116007 9046220228 9046400036 9046400047 9048001427 9048013314 9048025385 9165140614 9165140614 9165140614 9165140614 9165140614 9165640614 9165640816 9613230600 9613230800
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-20141

RT105,115

 1
77251-20143

RT105,115

 1
77251-20142

RT105,115

 1
77251-20140

RT105,115

 1
77251-20160

RT105,115

 1
77254 - TUBE, FUEL EMISSION, NO.1
77254-20114

RT105,115

 1
77254-20110

RT105,115

 1
77254-20111

RT105,115

 1
77254-20112

RT105,115

 1
77254-20114

RT105,115

FOR CANADA SPEC.

 1
77254-20113

RT105,115

 1
77277 - TUBE, FUEL RETURN, NO.1
77257-20072

RT105,115

 1
77257-20070

RT105,115

 1
77257-20071

RT105,115

 1
77257-20073

RT105,115

 1
77289 - HOLDER, FUEL TANK PIPE SETTING
77273-20010

RT105,115

 2
77289 - HOLDER, FUEL TANK PIPE SETTING
77273-20010

RT105,115

 2
Common parts
90119-06087
90461-10654
90461-10770
90461-16006
90461-16007
90462-20228
90464-00036
90464-00047
90480-01427
90480-13314
90480-25385
91651-40614
91656-40614
91656-40816
96132-30600
96132-30800

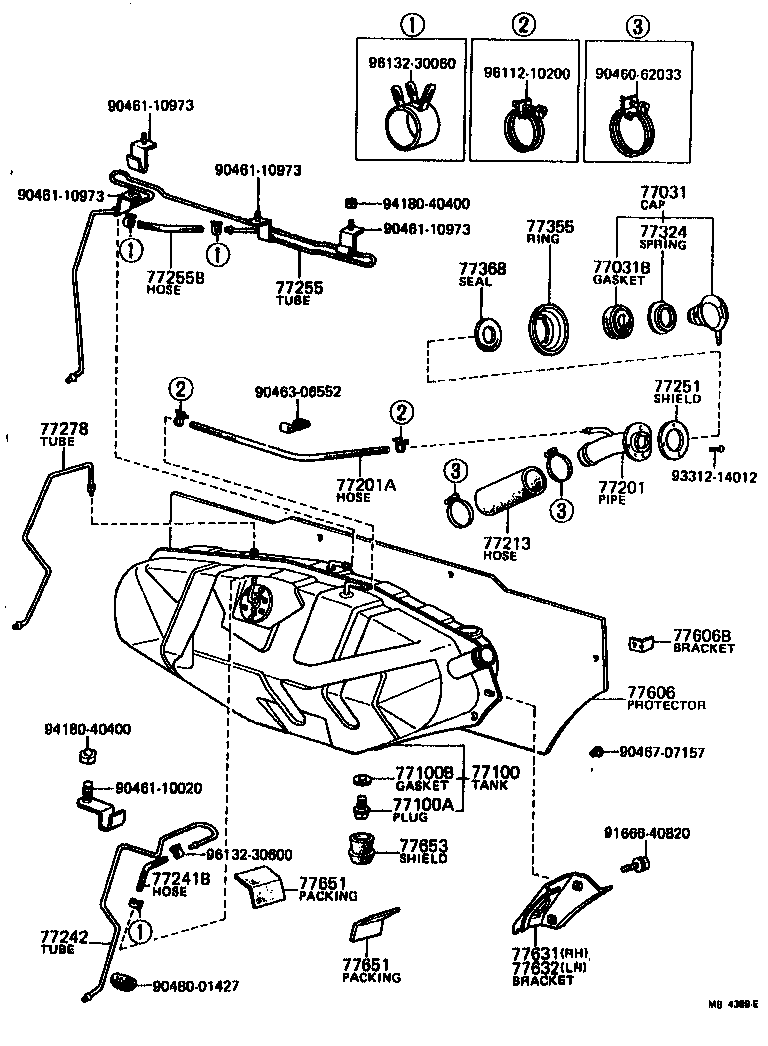

(7408-7509)RT105,115

Click highlighted areas on diagram

diagram 77031 77031B 77100 77100A 77100B 77201 77201A 77213 77241B 77242 77251 77255 77255B 77278 77324 77355 77368 77606 77606B 77631 77632 77651 77651 77653 9046062033 9046110020 9046110973 9046110973 9046110973 9046110973 9046306552 9046707157 9048001427 9166640820 9331214012 9418040400 9418040400 9611210200 9613230060 9613230600
Part # Description Qty Price
77031B - GASKET (FOR FUEL TANK CAP)
77316-12060

RT105,11#

 1
77316-12050

RT105,11#

 1
77316-12050

RT105,115

 1
77100 - TANK ASSY, FUEL
77001-20201

RT105,115

 1
77001-20202

RT105,115

 1
77001-20200

RT105,115

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-20090

RT10#

 1
77201-20110

RT105

FOR CALIFORNIA SPEC.

 1
77201-20111

RT105

 1
77201-20090

RT105

FOR CANADA SPEC.

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-20041

RT105

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77251-12011

RT105,115

 1
77255 - TUBE, FUEL EMISSION, NO.2
77255-20041

RT105

 1
77255-20060

RT105

 1
77324 - SPRING, FUEL TANK CAP
77317-12030

RT105,115

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77641-20010

RT10#

 1
Common parts
90460-62033
90461-10020
90461-10973
90463-06552
90467-07157
90480-01427
91666-40820
93312-14012
94180-40400
96112-10200
96132-30060
96132-30600

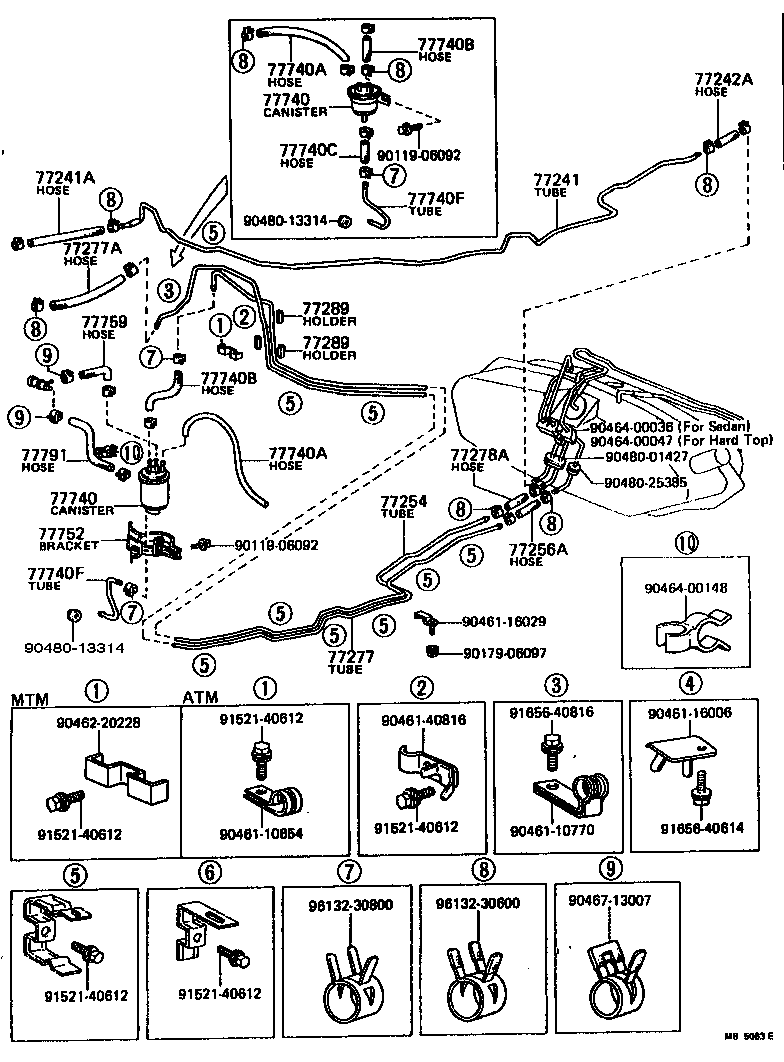

(7509-7808)RT105,115

Click highlighted areas on diagram

diagram 77241 77241A 77242A 77254 77256A 77277 77277A 77278A 77289 77289 77740 77740 77740A 77740A 77740B 77740B 77740C 77740F 77740F 77752 77759 77791 9011906092 9011906092 9017906097 9046110654 9046110770 9046116006 9046116029 9046140816 9046220228 9046400036 9046400047 9046400148 9046713007 9048001427 9048013314 9048013314 9048025385 9152140612 9152140612 9152140612 9152140612 9152140612 9165640614 9165640816 9613230600 9613230800
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77251-20141

RT105,115

 1
77251-20143

RT105,115

 1
77251-20142

RT105,115

 1
77251-20140

RT105,115

 1
77251-20160

RT105,115

 1
77254 - TUBE, FUEL EMISSION, NO.1
77254-20114

RT105,115

 1
77254-20110

RT105,115

 1
77254-20111

RT105,115

 1
77254-20112

RT105,115

 1
77254-20114

RT105,115

FOR CANADA SPEC.

 1
77254-20113

RT105,115

 1
77277 - TUBE, FUEL RETURN, NO.1
77257-20072

RT105,115

 1
77257-20070

RT105,115

 1
77257-20071

RT105,115

 1
77257-20073

RT105,115

 1
77289 - HOLDER, FUEL TANK PIPE SETTING
77273-20010

RT105,115

 2
77289 - HOLDER, FUEL TANK PIPE SETTING
77273-20010

RT105,115

 2
Common parts
90119-06092
90179-06097
90461-10654
90461-10770
90461-16006
90461-16029
90461-40816
90462-20228
90464-00036
90464-00047
90464-00148
90467-13007
90480-01427
90480-13314
90480-25385
91521-40612
91656-40614
91656-40816
96132-30600
96132-30800

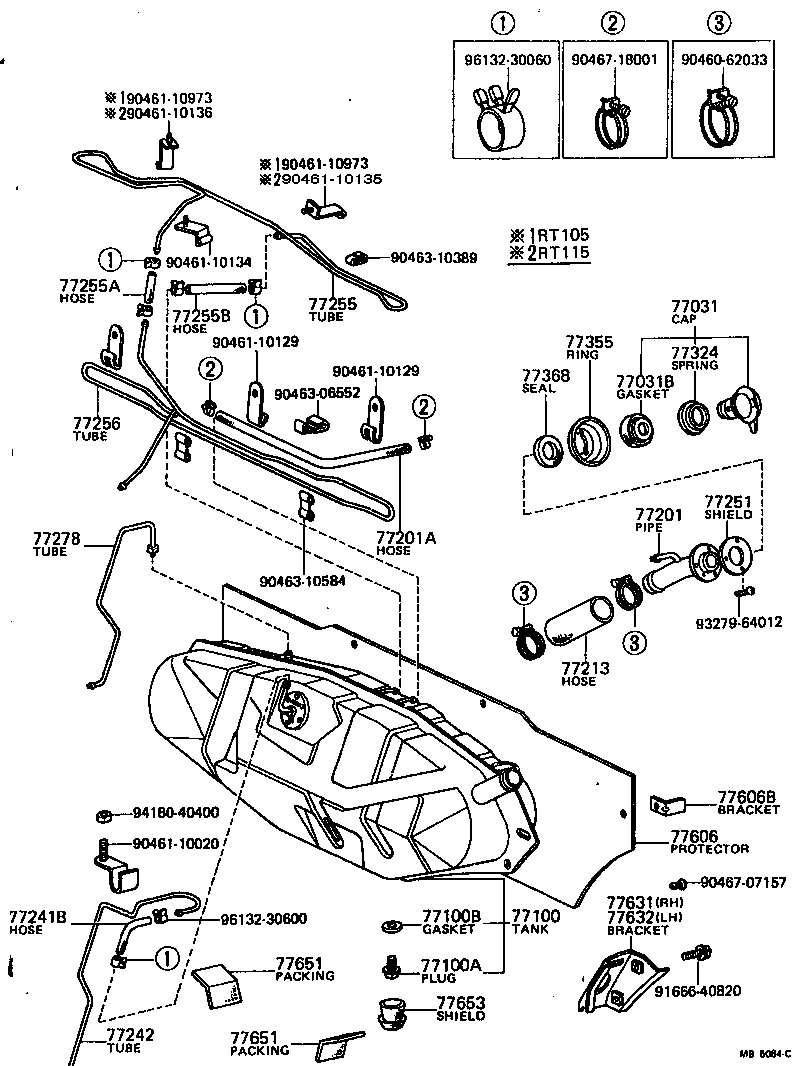

(7509-7808)RT105,115

Click highlighted areas on diagram

diagram 77031 77031B 77100 77100A 77100B 77201 77201A 77213 77241B 77242 77251 77255 77255A 77255B 77256 77278 77324 77355 77368 77606 77606B 77631 77632 77651 77651 77653 9046062033 9046110020 9046110129 9046110129 9046110134 9046110135 9046110136 9046110973 9046110973 9046306552 9046310389 9046310584 9046707157 9046718001 9166640820 9327964012 9418040400 9613230060 9613230600
Part # Description Qty Price
77031B - GASKET (FOR FUEL TANK CAP)
77316-12060

RT105,11#

 1
77316-12050

RT105,11#

 1
77316-12050

RT105,115

 1
77100 - TANK ASSY, FUEL
77001-20201

RT105,115

 1
77001-20202

RT105,115

 1
77001-20200

RT105,115

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-20090

RT10#

 1
77201-20110

RT105

FOR CALIFORNIA SPEC.

 1
77201-20111

RT105

 1
77201-20090

RT105

FOR CANADA SPEC.

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-20041

RT105

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77251-12011

RT105,115

 1
77255 - TUBE, FUEL EMISSION, NO.2
77255-20041

RT105

 1
77255-20060

RT105

 1
77324 - SPRING, FUEL TANK CAP
77317-12030

RT105,115

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77641-20010

RT10#

 1
Common parts
90460-62033
90461-10020
90461-10129
90461-10134
90461-10135
90461-10136
90461-10973
90463-06552
90463-10389
90463-10584
90467-07157
90467-18001
91666-40820
93279-64012
94180-40400
96132-30060
96132-30600
