RT105L-MDFA (1974)

Toyota Corona

Production Aug 1974 - Aug 1978
Engine 20R
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7408-7808)MTM

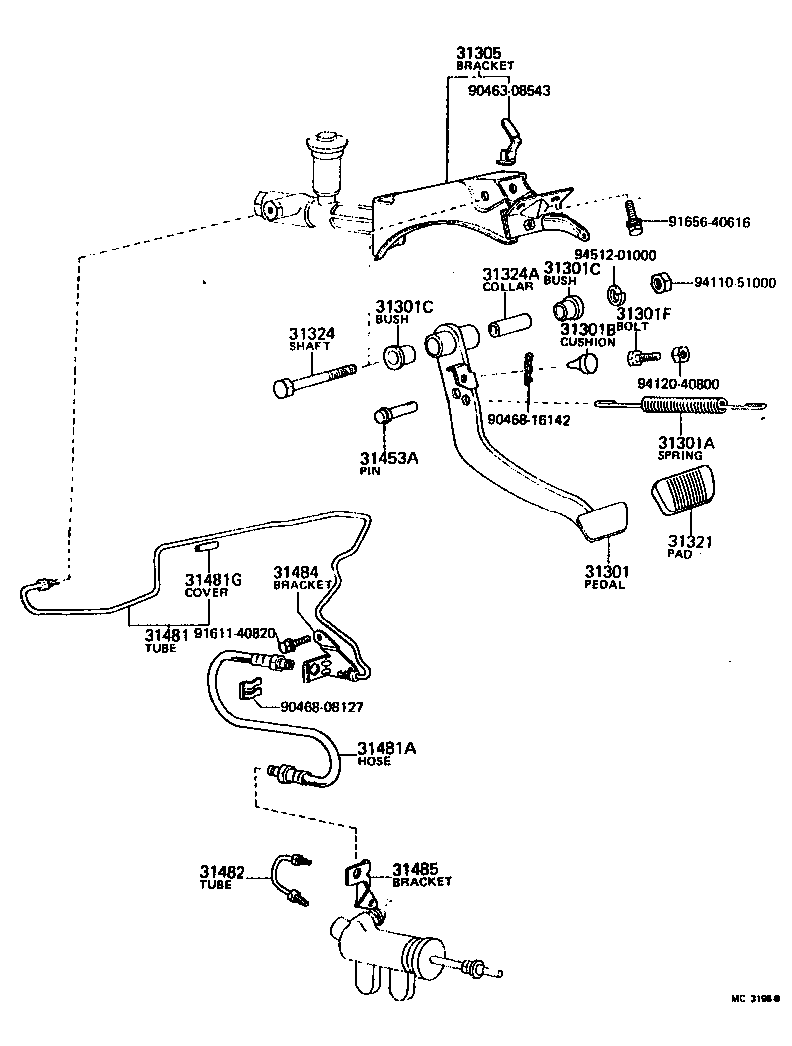

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305 31321 31324 31324A 31453A 31481 31481A 31481G 31482 31484 31485 9046308543 9046808127 9046816142 9161140820 9165640616 9411051000 9412040800 9451201000
Part # Description Qty Price
Common parts
90463-08543
90468-08127
90468-16142
91611-40820
91656-40616
94110-51000
94120-40800
94512-01000
