RT105L-HRA (1974)

Toyota Corona

Production Aug 1974 - Aug 1978
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

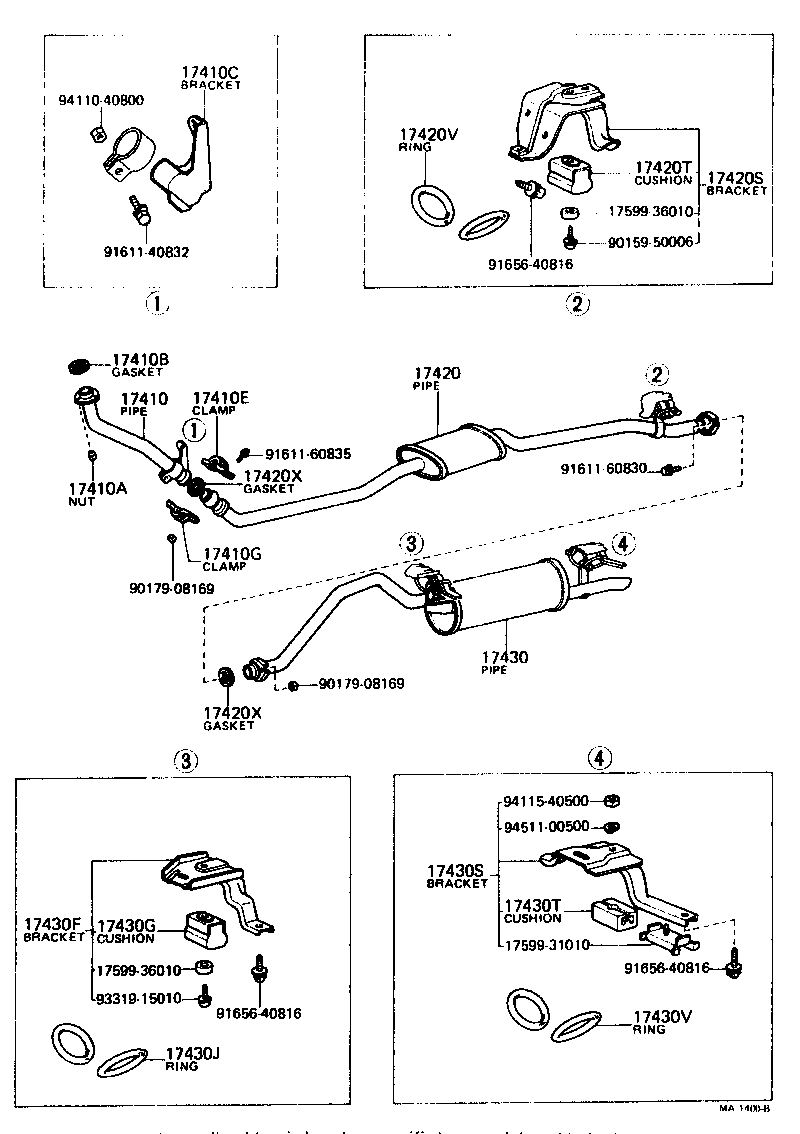

(7408-7509)20R..RT105,115

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17410E 17410G 17420 17420S 17420T 17420V 17420X 17420X 17430 17430F 17430G 17430J 17430S 17430T 17430V 1759931010 1759936010 1759936010 9015950006 9017908169 9017908169 9161140832 9161160830 9161160835 9165640816 9165640816 9165640816 9331915010 9411040800 9411540500 9451100500
Part # Description Qty Price
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
Common parts
17599-31010
17599-36010
90159-50006
90179-08169
91611-40832
91611-60830
91611-60835
91656-40816
93319-15010
94110-40800
94115-40500
94511-00500

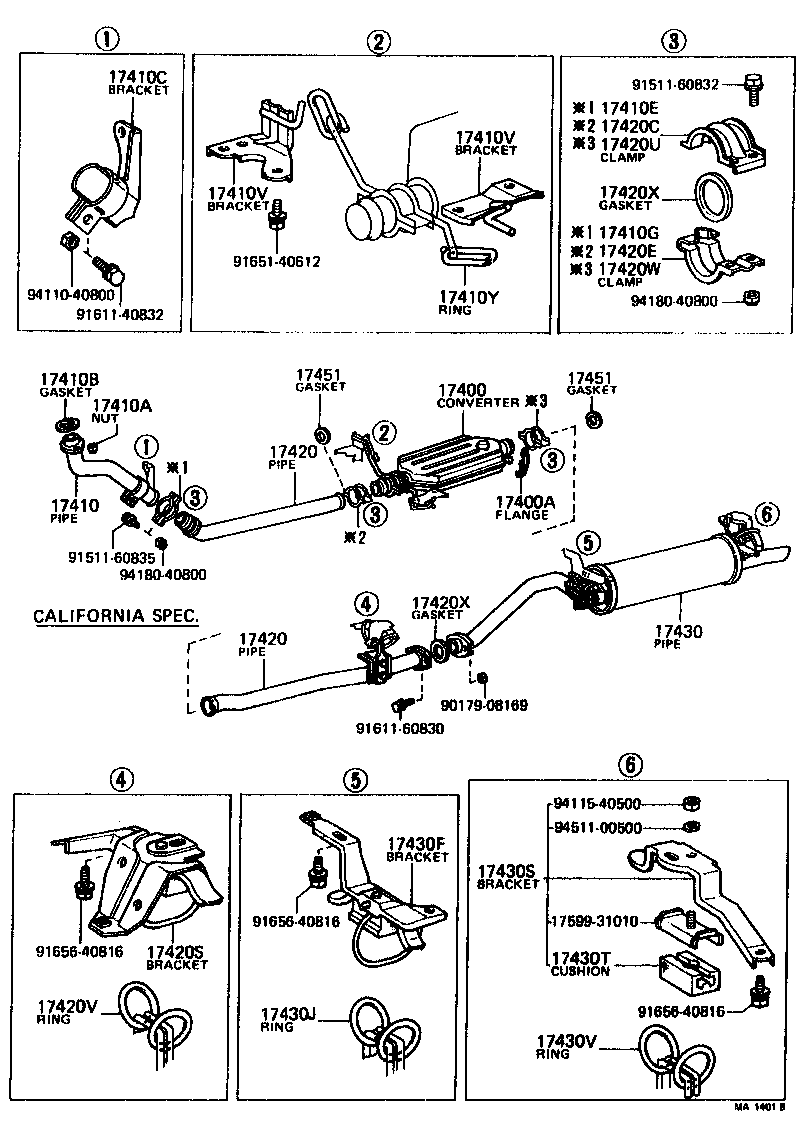

(7408-7509)20R..RT105,115

Click highlighted areas on diagram

diagram 17400 17400A 17410 17410A 17410B 17410C 17410E 17410G 17410V 17410V 17410Y 17420 17420 17420C 17420E 17420S 17420U 17420V 17420W 17420X 17420X 17430 17430F 17430J 17430S 17430T 17430V 17451 17451 1759931010 9017908169 9151160832 9151160835 9161140832 9161160830 9165140612 9165640816 9165640816 9165640816 9411040800 9411540500 9418040800 9418040800 9451100500
Part # Description Qty Price
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
17451 - GASKET, EXHAUST PIPE
90917-06011

20R..RT105,11#

CALIFORNIA SPEC.

 1
90917-06004

20R..RT105,11#

REAR CAL.& H.A.

 1
17451 - GASKET, EXHAUST PIPE
90917-06011

20R..RT105,11#

CALIFORNIA SPEC.

 1
90917-06004

20R..RT105,11#

REAR CAL.& H.A.

 1
Common parts
17599-31010
90179-08169
91511-60832
91511-60835
91611-40832
91611-60830
91651-40612
91656-40816
94110-40800
94115-40500
94180-40800
94511-00500

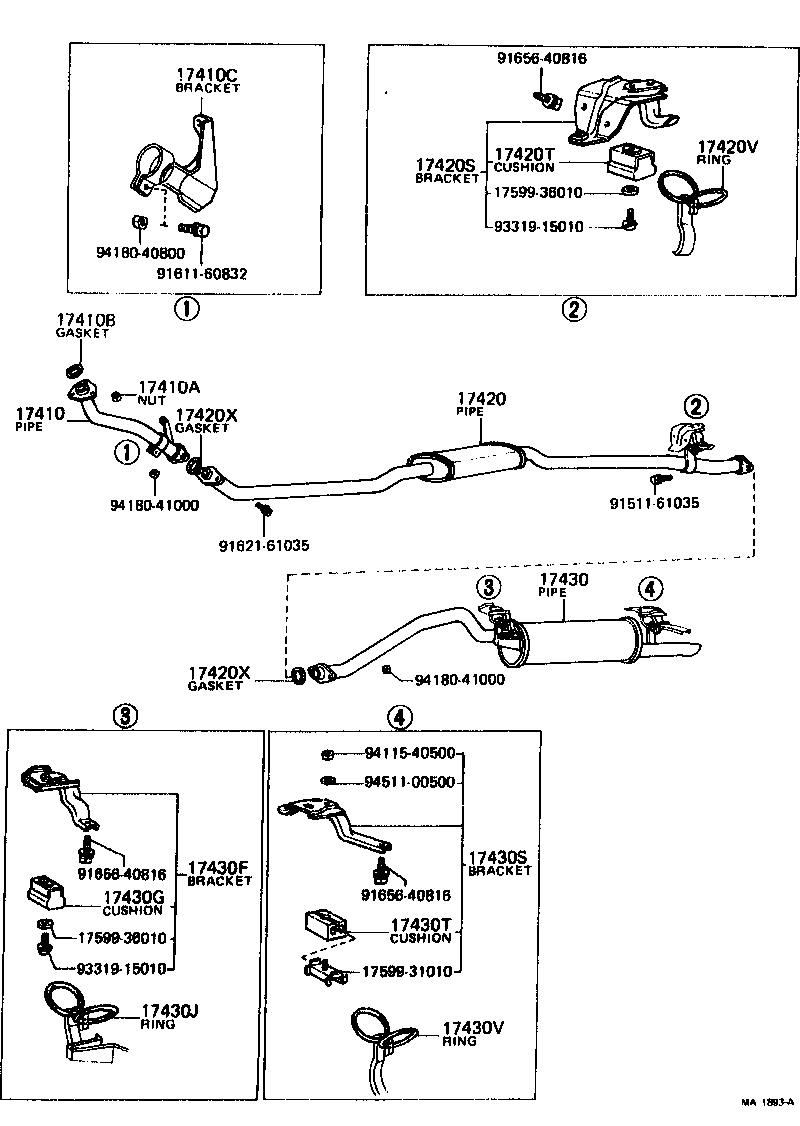

(7509-7608)20R..RT105,115

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420 17420S 17420T 17420V 17420X 17420X 17430 17430F 17430G 17430J 17430S 17430T 17430V 1759931010 1759936010 1759936010 9151161035 9161160832 9162161035 9165640816 9165640816 9165640816 9331915010 9331915010 9411540500 9418040800 9418041000 9418041000 9451100500
Part # Description Qty Price
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
Common parts
17599-31010
17599-36010
91511-61035
91611-60832
91621-61035
91656-40816
93319-15010
94115-40500
94180-40800
94180-41000
94511-00500

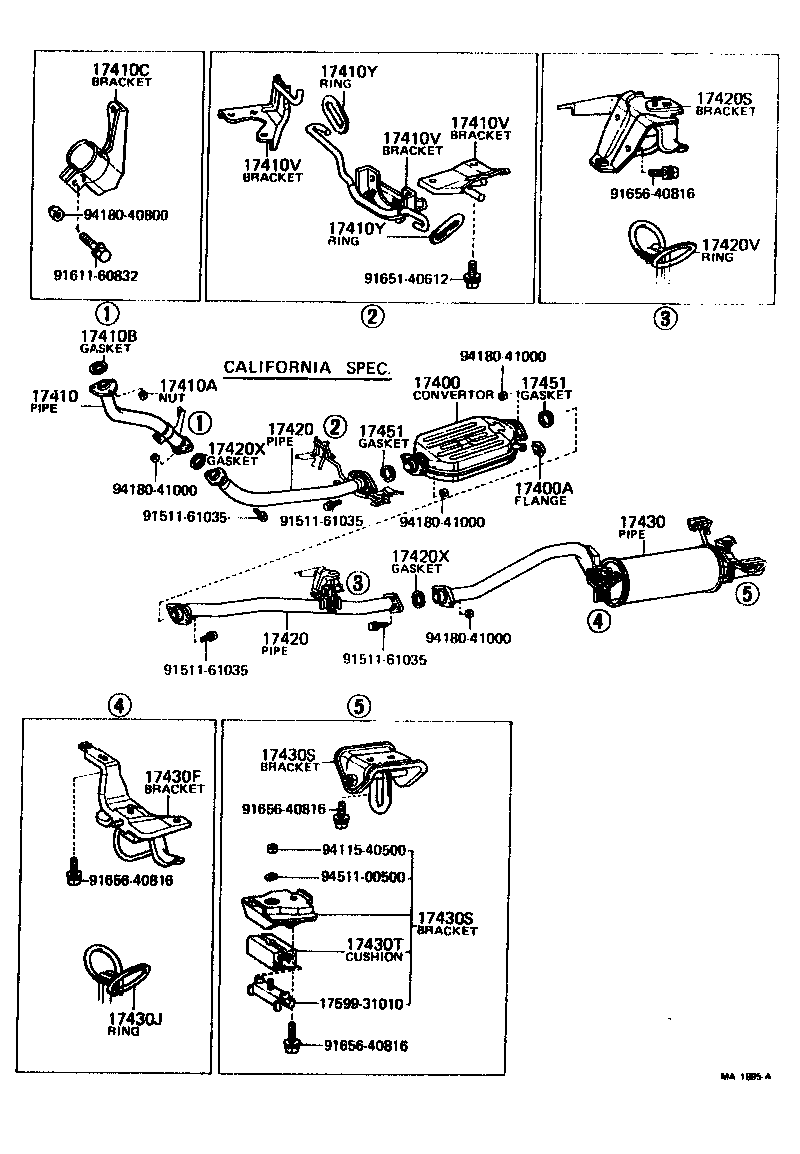

(7509-7608)20R..RT105,115

Click highlighted areas on diagram

diagram 17400 17400A 17410 17410A 17410B 17410C 17410V 17410V 17410V 17410Y 17410Y 17420 17420 17420S 17420V 17420X 17420X 17430 17430F 17430J 17430S 17430S 17430T 17451 17451 1759931010 9151161035 9151161035 9151161035 9151161035 9161160832 9165140612 9165640816 9165640816 9165640816 9165640816 9411540500 9418040800 9418041000 9418041000 9418041000 9418041000 9451100500
Part # Description Qty Price
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
17451 - GASKET, EXHAUST PIPE
90917-06011

20R..RT105,11#

CALIFORNIA SPEC.

 1
90917-06004

20R..RT105,11#

REAR CAL.& H.A.

 1
17451 - GASKET, EXHAUST PIPE
90917-06011

20R..RT105,11#

CALIFORNIA SPEC.

 1
90917-06004

20R..RT105,11#

REAR CAL.& H.A.

 1
Common parts
17599-31010
91511-61035
91611-60832
91651-40612
91656-40816
94115-40500
94180-40800
94180-41000
94511-00500

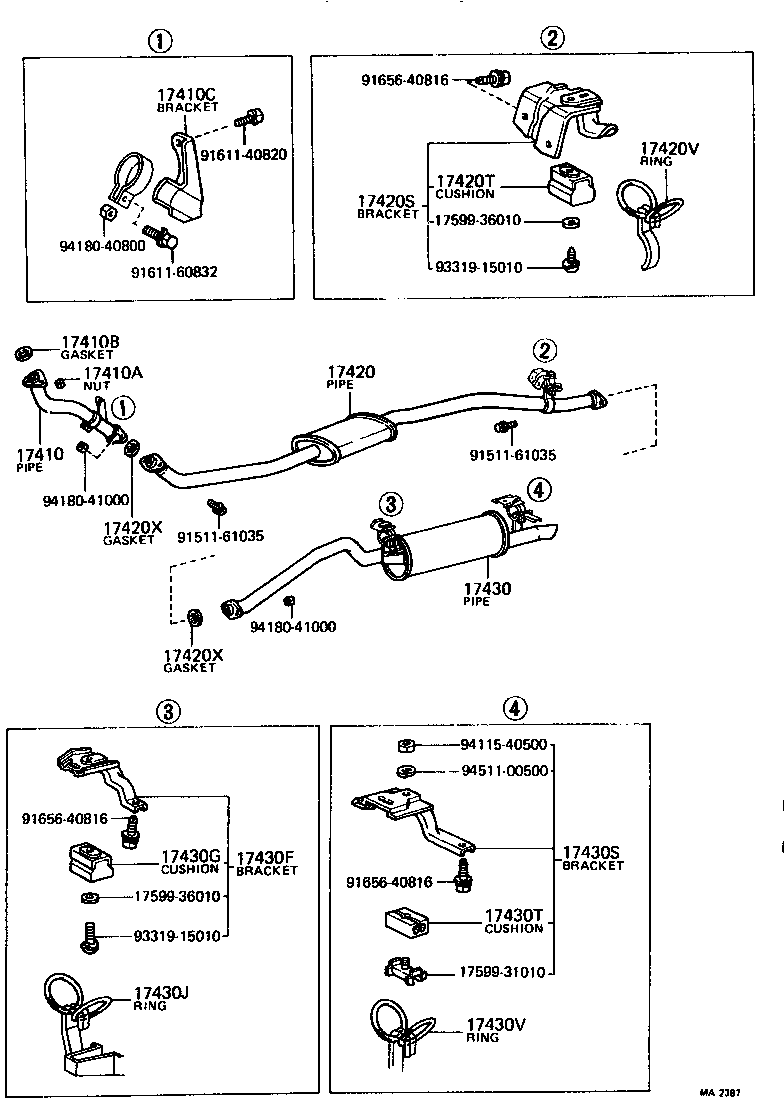

(7608-7808)20R..RT105,115

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410C 17420 17420S 17420T 17420V 17420X 17420X 17430 17430F 17430G 17430J 17430S 17430T 17430V 1759931010 1759936010 1759936010 9151161035 9151161035 9161140820 9161160832 9165640816 9165640816 9165640816 9331915010 9331915010 9411540500 9418040800 9418041000 9418041000 9451100500
Part # Description Qty Price
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
Common parts
17599-31010
17599-36010
91511-61035
91611-40820
91611-60832
91656-40816
93319-15010
94115-40500
94180-40800
94180-41000
94511-00500

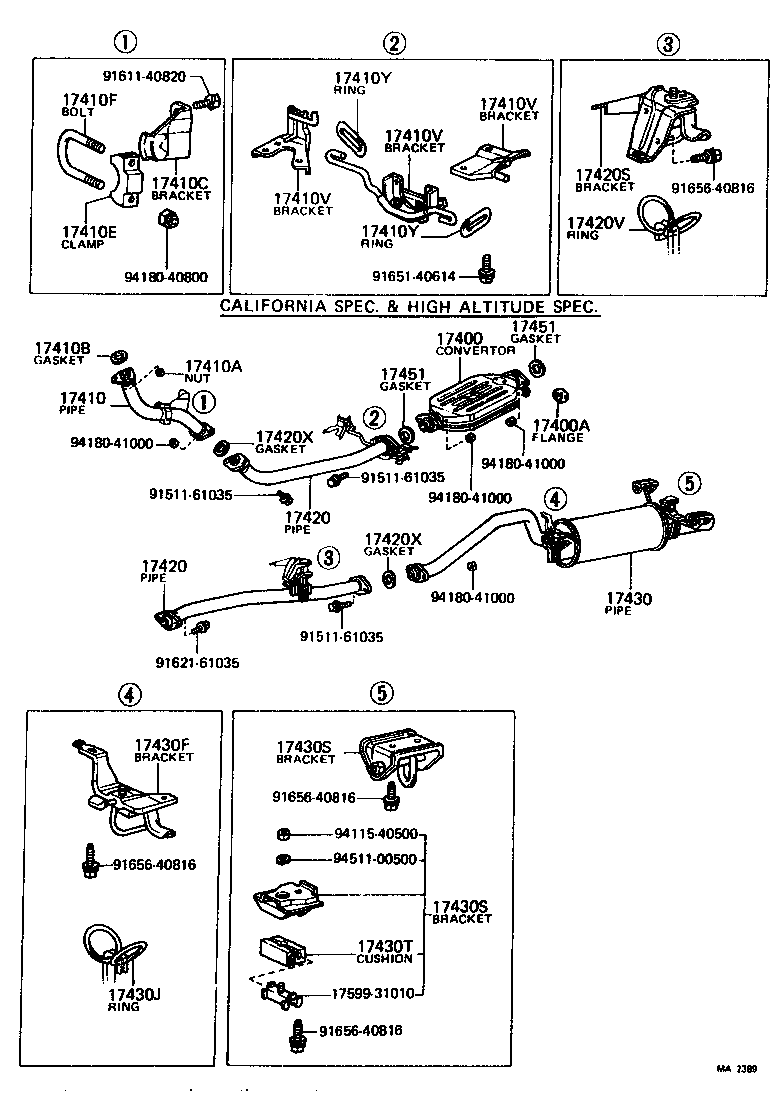

(7608-7808)20R..RT105,115

Click highlighted areas on diagram

diagram 17400 17400A 17410 17410A 17410B 17410C 17410E 17410F 17410V 17410V 17410V 17410Y 17410Y 17420 17420 17420S 17420V 17420X 17420X 17430 17430F 17430J 17430S 17430S 17430T 17451 17451 1759931010 9151161035 9151161035 9151161035 9161140820 9162161035 9165140614 9165640816 9165640816 9165640816 9165640816 9411540500 9418040800 9418041000 9418041000 9418041000 9418041000 9451100500
Part # Description Qty Price
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06011

20R..RT105,11#

FRONT

 2
17451 - GASKET, EXHAUST PIPE
90917-06011

20R..RT105,11#

CALIFORNIA SPEC.

 1
90917-06004

20R..RT105,11#

REAR CAL.& H.A.

 1
17451 - GASKET, EXHAUST PIPE
90917-06011

20R..RT105,11#

CALIFORNIA SPEC.

 1
90917-06004

20R..RT105,11#

REAR CAL.& H.A.

 1
Common parts
17599-31010
91511-61035
91611-40820
91621-61035
91651-40614
91656-40816
94115-40500
94180-40800
94180-41000
94511-00500
