RT105L-HDFA (1974)
Toyota Corona
Production
Aug 1974
-
May 1976
Engine
20R
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7308-7808)

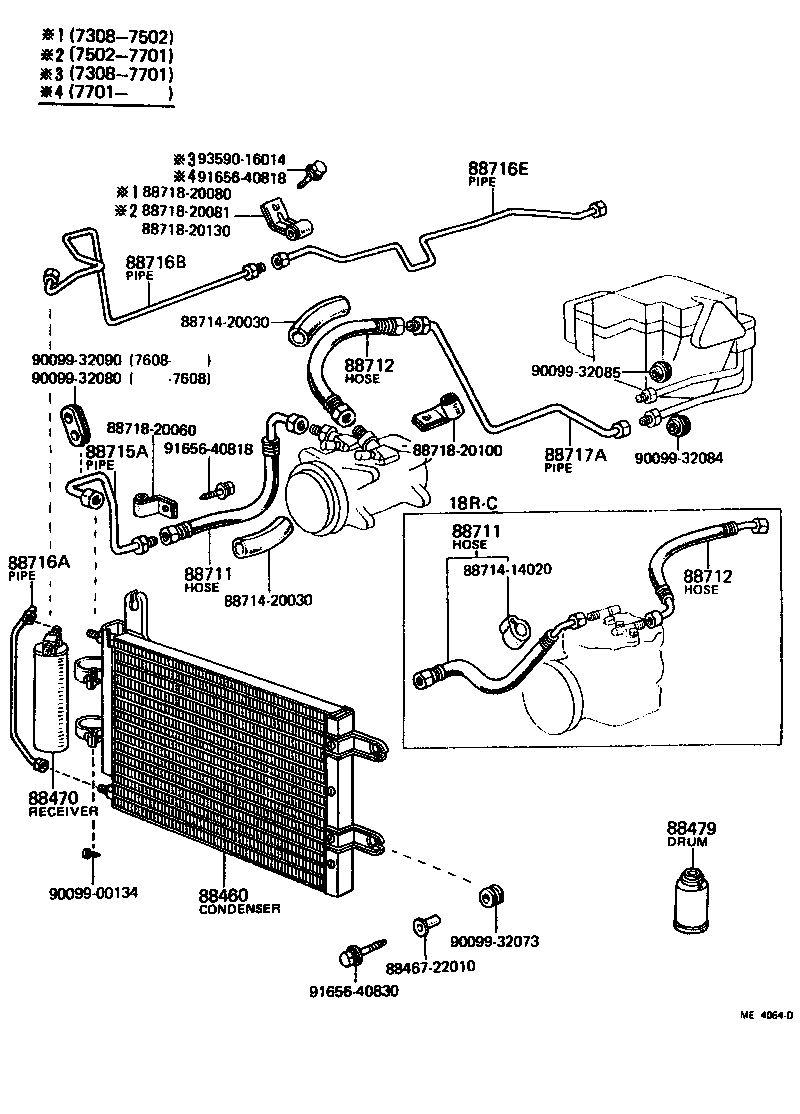

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-20060 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 88434-30010 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
3 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-20220 |
RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-20180 |
RT118..4F;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-20190 |
RT118..4F;RT105..3FC..4D;RT104..3FC..STD |
1 | ||
| Common parts | ||||
| 88467-22010 | ||||
| 88714-14020 | ||||
| 88714-20030 | ||||
| 88718-20060 | ||||
| 88718-20080 | ||||
| 88718-20081 | ||||
| 88718-20100 | ||||
| 88718-20130 | ||||
| 90099-00134 | ||||
| 90099-32073 | ||||
| 90099-32080 | ||||
| 90099-32084 | ||||
| 90099-32085 | ||||
| 90099-32090 | ||||
| 91656-40818 | ||||
| 91656-40830 | ||||
| 93590-16014 | ||||
