RT105L-HDFA (1974)

Toyota Corona

Production Aug 1974 - May 1976
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)

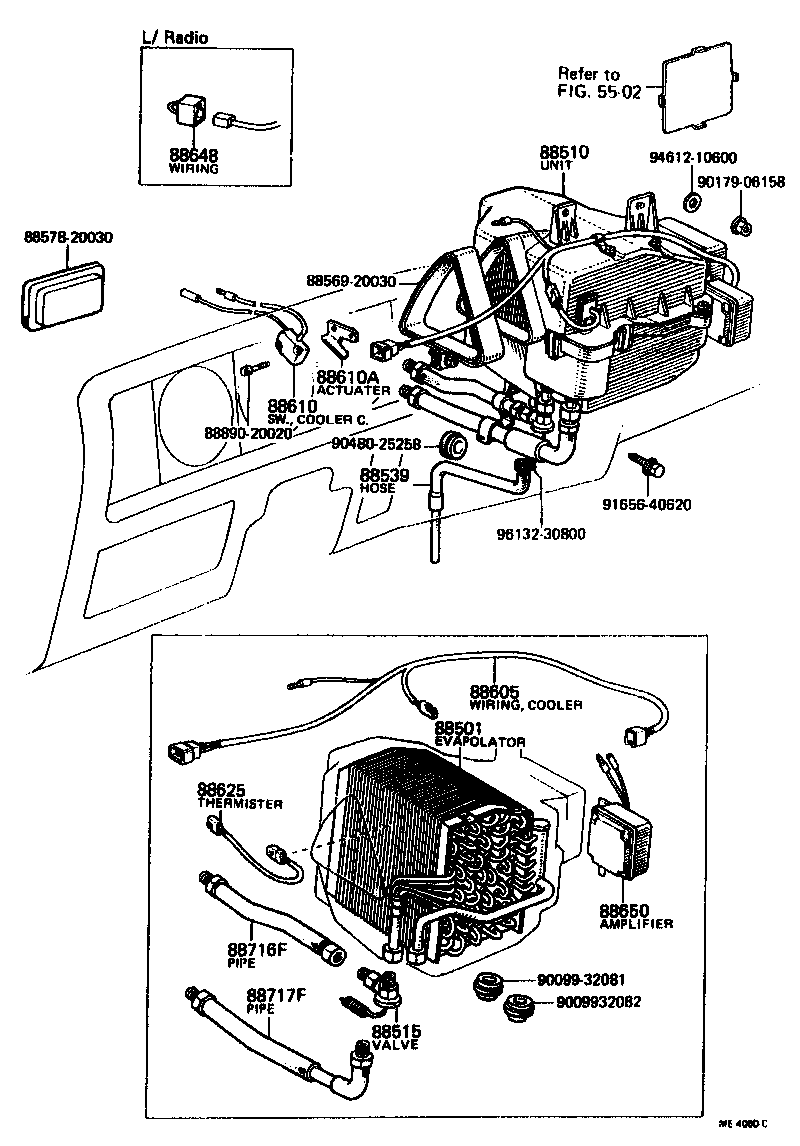

Click highlighted areas on diagram

diagram 5502 88501 88510 88515 88539 8856920030 8857820030 88605 88610 88610A 88625 88648 88650 88716F 88717F 8889020020 9009932081 9009932082 9017906158 9048025258 9165640620 9461210600 9613230800
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-20040

RT118..4F;RT105..3FC..4D;RT104..3FC..STD

 1
88510 - UNIT ASSY, COOLER
88510-20090

RT118..4F;RT105..3FC..4D;RT104..3FC..STD

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-20040

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-20070

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
88610 - SWITCH ASSY, COOLER CONTROL
88610-20120

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
88625 - THERMISTOR, COOLER, NO.1
88625-20030

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-20060

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-20210

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
88717F - PIPE, COOLER REFRIGERANT SUCTION, F
88717-20120

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
Common parts
88569-20030
88578-20030
88890-20020
90099-32081
90099-32082
90179-06158
90480-25258
91656-40620
94612-10600
96132-30800
Linked diagrams
5502
