RT105L-HDFA (1974)

Toyota Corona

Production Aug 1974 - May 1976
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7701)

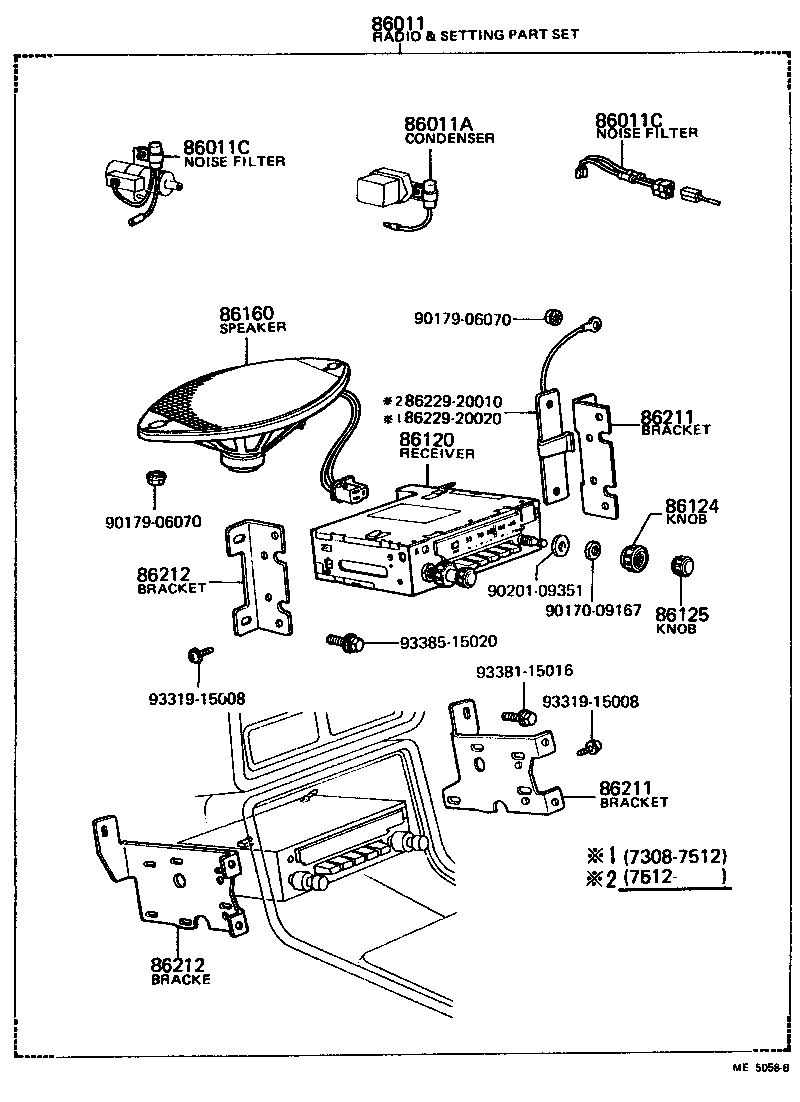

Click highlighted areas on diagram

diagram 86011 86011A 86011C 86011C 86120 86124 86125 86160 86211 86211 86212 86212 8622920010 8622920020 9017009167 9017906070 9017906070 9020109351 9331915008 9331915008 9338115016 9338515020
Part # Description Qty Price
86011 - RADIO & SETTING PARTS SET
86011-29075

RT105..3FC..4D

AM/FM,MULTIPLEX

 1
86011-29065

RT105..3FC..4D

AM/FM,5-BUTTON

 1
86011-29055

RT118..4F;RT105..3FC..4D;RT104..3FC..STD

AM,5-BUTTON

 1
86011A - CONDENSER, RADIO SETTING
90980-04011

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

PLUG CONNECTOR

 1
86011C - FILTER, NOISE
90980-05021

RT105..3FC..4D

;U; & PLUG CONNECTOR

 1
86011C - FILTER, NOISE
90980-05021

RT105..3FC..4D

;U; & PLUG CONNECTOR

 1
86120 - RECEIVER ASSY, RADIO
86120-20150

RT105..3FC..4D

AM/FM,5-BUTTON

 1
86120-20190

RT105..3FC..4D

AM/FM,MULTIPLEX

 1
86120-20130

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

AM,5-BUTTON

 1
86124 - KNOB, RADIO RECEIVER CONTROL
86124-20040

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 2
86125 - KNOB, RADIO RECEIVER SWITCH
86125-20040

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-20050

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 2
86211 - BRACKET, RADIO, NO.1
86211-20040

RT118..4F;RT105..3FC..4D;RT104..3FC..STD

CONSOLE

 1
86211 - BRACKET, RADIO, NO.1
86211-20040

RT118..4F;RT105..3FC..4D;RT104..3FC..STD

CONSOLE

 1
86212 - BRACKET, RADIO, NO.2
86212-20030

RT118..4F;RT105..3FC..4D;RT104..3FC..STD

CONSOLE

 1
86212 - BRACKET, RADIO, NO.2
86212-20030

RT118..4F;RT105..3FC..4D;RT104..3FC..STD

CONSOLE

 1
Common parts
86229-20010
86229-20020
90170-09167
90179-06070
90201-09351
93319-15008
93381-15016
93385-15020
