RT105L-HDFA (1974)

Toyota Corona

Production Aug 1974 - May 1976
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)

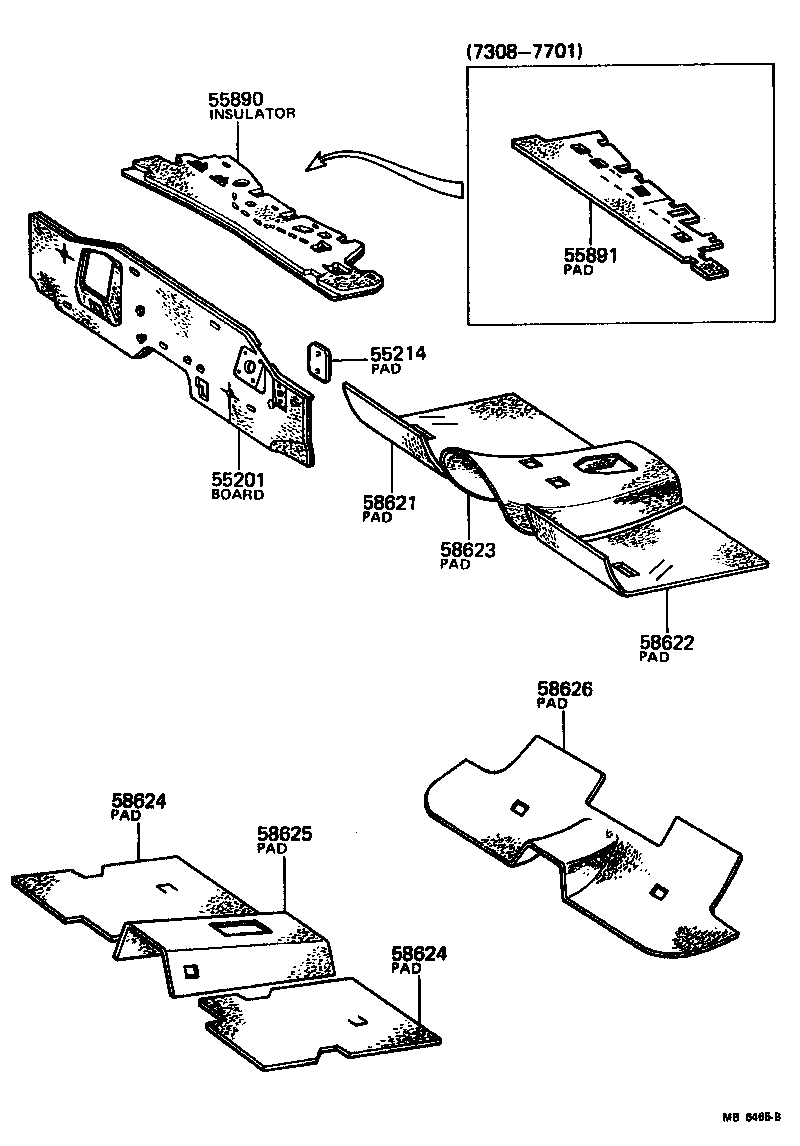

Click highlighted areas on diagram

diagram 55201 55214 55890 55891 58621 58622 58623 58624 58624 58625 58626
Part # Description Qty Price
55201 - BOARD SUB-ASSY, DASH PANEL SILENCER
55201-20230

RT105..3FC..4D

FOR W/HEATER & COOLER

 1
55891 - PAD, COWL TOP SILENCER, INNER RH
55891-20040

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
58621 - PAD, FLOOR SILENCER, FRONT RH
58621-21010

RT105..3FC..4D

 1
58621-20020

RT105..3FC..4D

 1
58621-20020

RT105..3FC..4D

 1
58622 - PAD, FLOOR SILENCER, FRONT LH
58621-20020

RT105..3FC..4D

 1
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58623-20020

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
58624 - PAD, FLOOR SILENCER, REAR SIDE
58626-20010

RT105..3FC..4D

 2
58624 - PAD, FLOOR SILENCER, REAR SIDE
58626-20010

RT105..3FC..4D

 2
