RT105L-HDFA (1974)

Toyota Corona

Production Aug 1974 - May 1976
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)

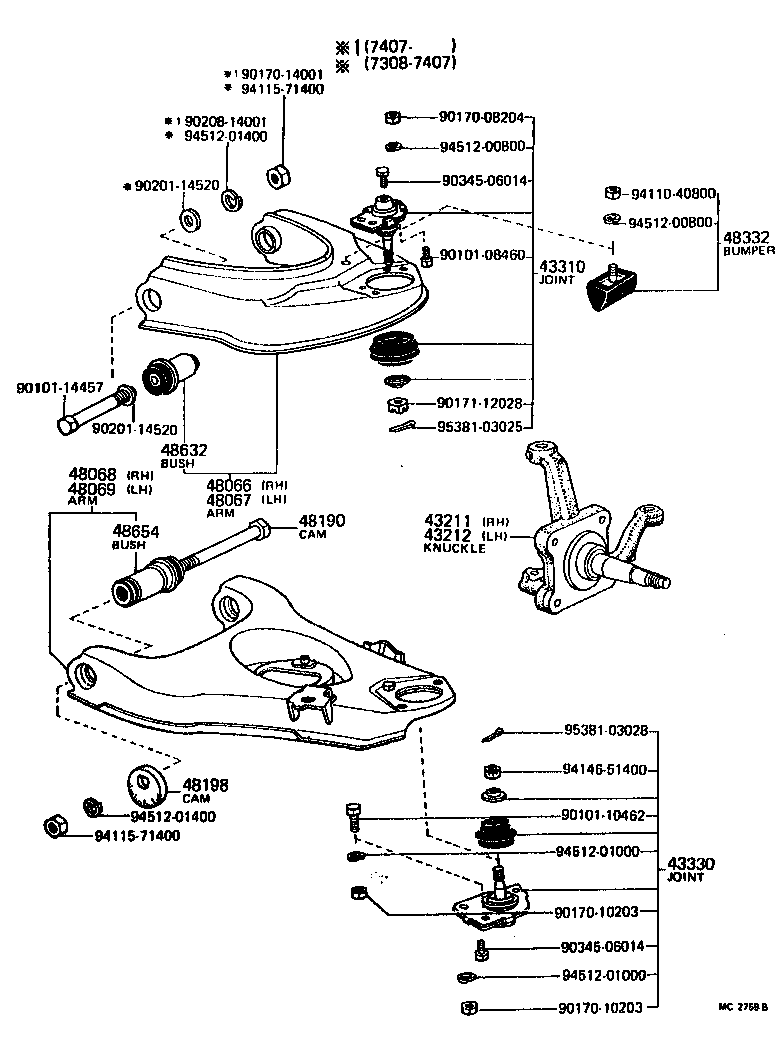

Click highlighted areas on diagram

diagram 43211 43212 43310 43330 48066 48067 48068 48069 48190 48198 48332 48632 48654 9010108460 9010110462 9010114457 9017008204 9017010203 9017010203 9017014001 9017112028 9020114520 9020114520 9020814001 9034506014 9034506014 9411040800 9411571400 9411571400 9414651400 9451200800 9451200800 9451201000 9451201000 9451201400 9451201400 9538103025 9538103028
Part # Description Qty Price
43310 - JOINT ASSY, UPPER BALL
43360-29035

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 2
43330 - JOINT ASSY, LOWER BALL, FRONT
43340-29025

RT118..4F;RT105..3FC..4D;RT104..3FC..STD

LH.

 1
43330-29055

RT118..4F;RT105..3FC..4D;RT104..3FC..STD

RH.

 1
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48066-20040

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48067-20040

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-20070

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-20070

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 1
48190 - CAM ASSY, CAMBER ADJUST
48190-20010

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 4
48198 - CAM, CAMBER ADJUST, NO.2
48198-20010

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 4
48332 - BUMPER, FRONT SPRING, NO.2
48332-29025

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 2
48632 - BUSH, UPPER ARM
48630-20020

RT118..4F;RT105..3FC..4D;RT104..3FC..STD

 4
48654 - BUSH, LOWER ARM
48061-20020

RT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD

 4
Common parts
90101-08460
90101-10462
90101-14457
90170-08204
90170-10203
90170-14001
90171-12028
90201-14520
90208-14001
90345-06014
94110-40800
94115-71400
94146-51400
94512-00800
94512-01000
94512-01400
95381-03025
95381-03028
