RT105L-HDA (1974)

Toyota Corona

Production Aug 1974 - Aug 1976
Engine 20R
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7308-7808)RT10#,118,119

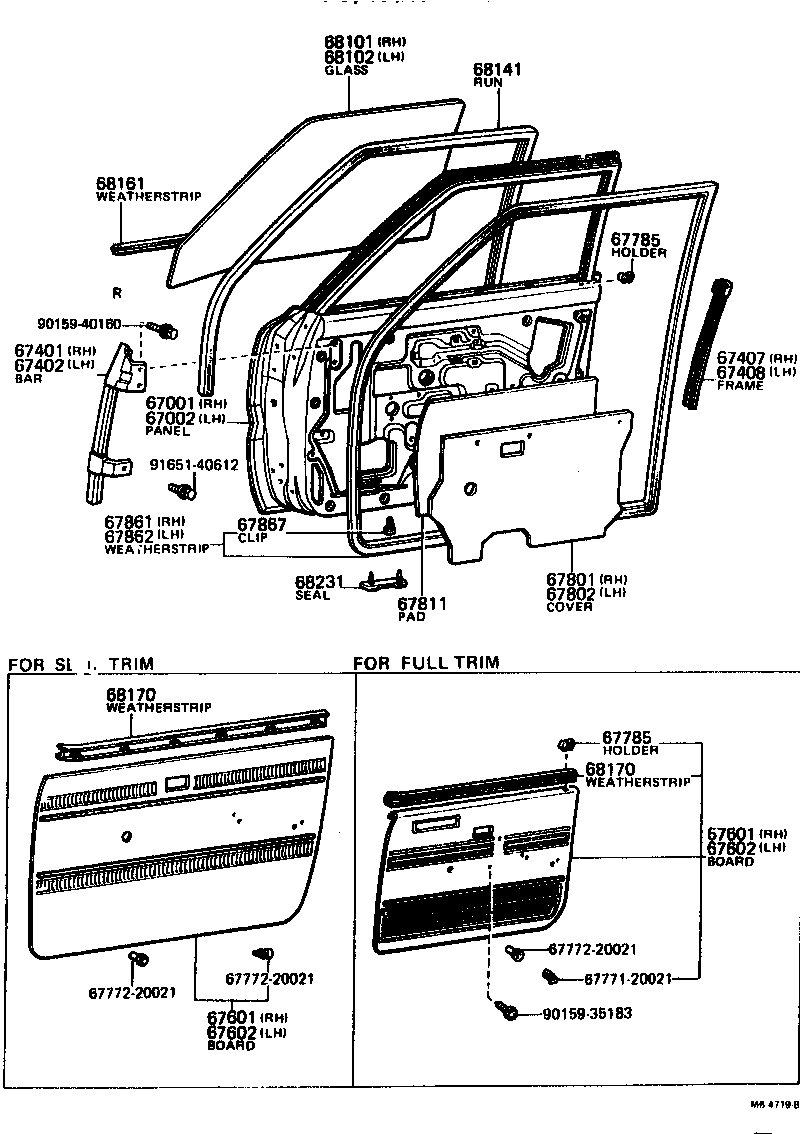

Click highlighted areas on diagram

diagram 67001 67002 67401 67402 67407 67408 67601 67601 67602 67602 6777120021 6777220021 6777220021 6777220021 67785 67785 67801 67802 67811 67861 67862 67867 68101 68102 68141 68161 68170 68170 68231 9015935183 9015940160 9165140612
Part # Description Qty Price
Common parts
67771-20021
67772-20021
90159-35183
90159-40160
91651-40612
