AE95L-CWPDKK (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1993
Engine 4AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

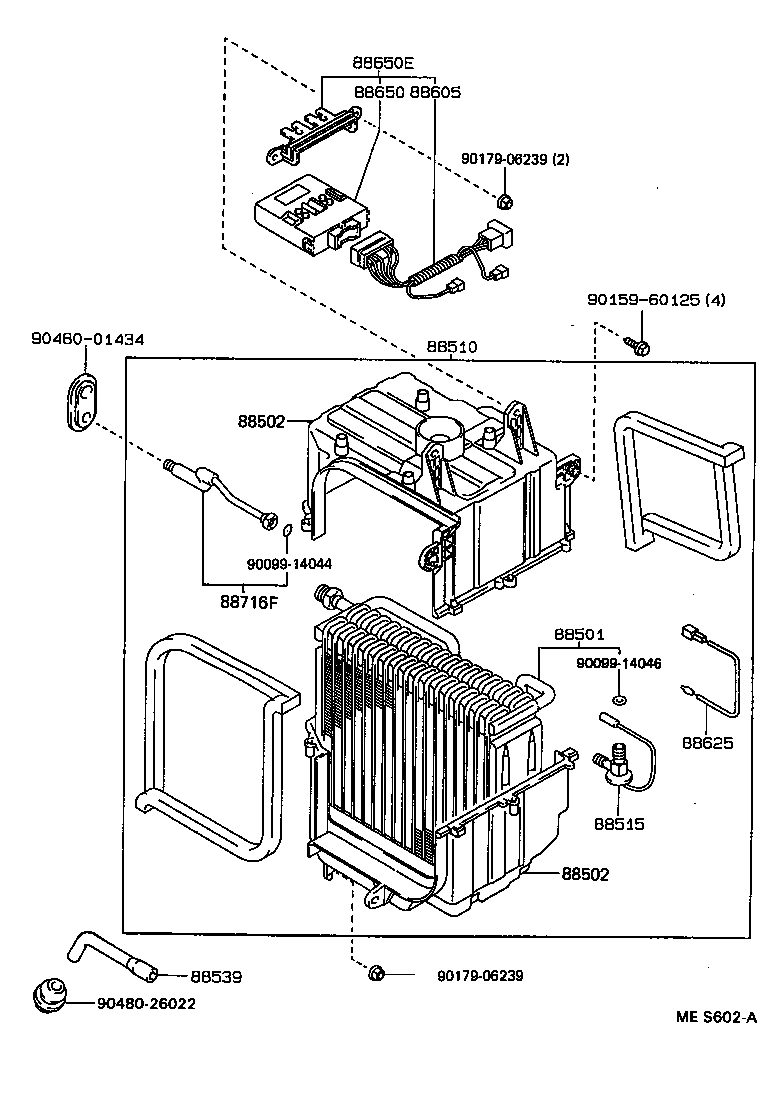

Click highlighted areas on diagram

diagram 88501 88502 88502 88510 88515 88539 88605 88625 88650 88650E 88716F 9009914044 9009914046 9015960125 9017906239 9017906239 9048001434 9048026022
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-12350

AE95

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12120

AE95..CND

UPR

 1
88502-12130

AE95..CND

LWR

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-12120

AE95..CND

UPR

 1
88502-12130

AE95..CND

LWR

 1
88510 - UNIT ASSY, COOLER
88510-12800

AE95..CND

 1
88515 - VALVE, COOLER EXPANSION
88515-16040

AE95

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12100

AE95

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1E300

AE95..CND

 1
88625 - THERMISTOR, COOLER, NO.1
88625-32040

AE95..CND

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-12691

AE95

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88726-12310

AE95

 1
Common parts
90099-14044
90099-14046
90159-60125
90179-06239
90480-01434
90480-26022
